2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

Effortless Precision for BGA Chip Repairs

The 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools is designed to streamline your chip repair process. With two high-quality stencils ranging from 0.2mm to 0.85mm, this kit ensures seamless handling of diverse BGA chip sizes. Suitable for mobile phone repairs, it provides reliable precision for solder ball grid array (PCB) rework tasks. 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

Durable and User-Friendly Design

Crafted from robust materials, the stencils offer long-lasting durability and resistance to wear and tear. Thanks to their carefully engineered design, these tools make it easier to align and reball chips, reducing errors and time spent troubleshooting during repairs. Ideal for professionals and DIY enthusiasts alike. 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

Versatile Application for Optimal Results

Whether you’re fixing a damaged chip or conducting full PCB rework, the 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools adapts to your needs. Its wide range ensures compatibility across different chip sizes, making it an indispensable addition to your repair toolkit. Experience quality and precision in every repair. 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

The 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools is a professional-grade micro-soldering solution engineered for Ball Grid Array (BGA) chip repairs. It is specifically built for electronics technicians working on modern mobile phones, tablets, and high-density PCBs. 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

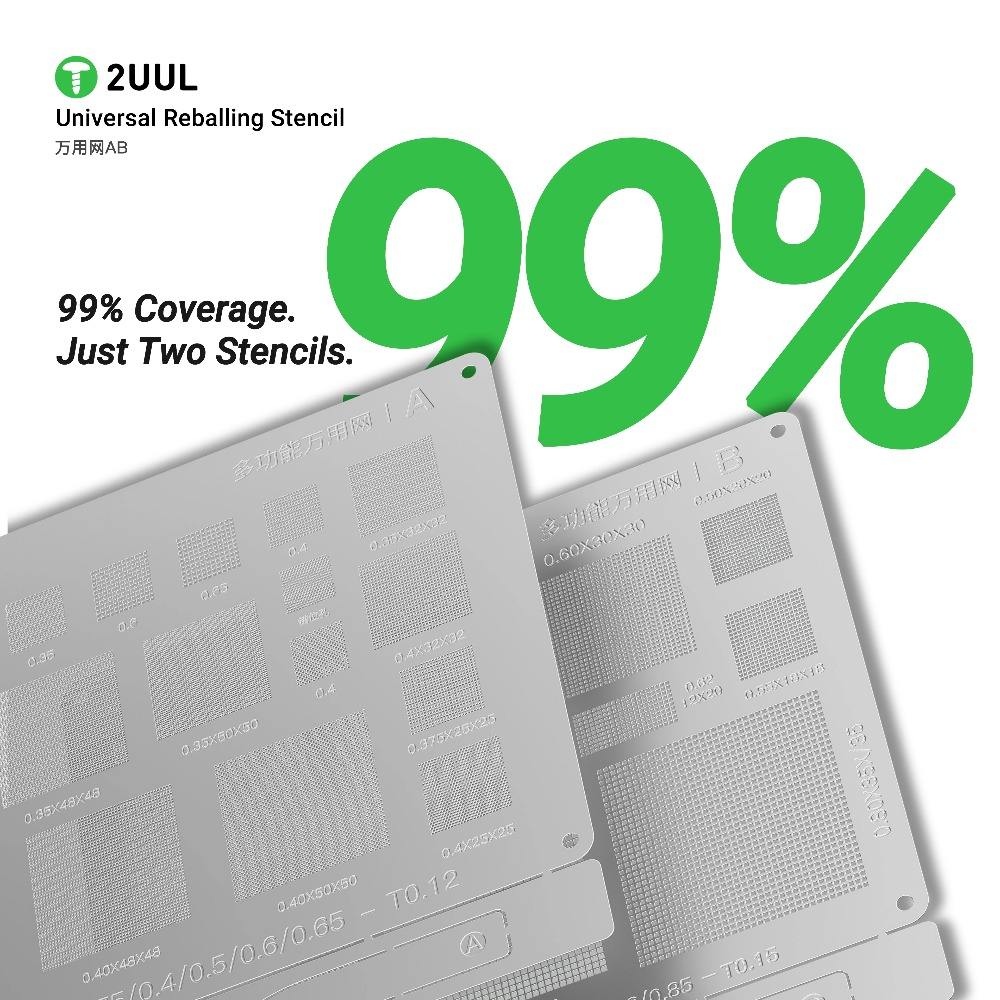

By employing a clever “A/B” two-plate architecture, this kit eliminates the need for dozens of dedicated chip-specific stencils. It covers nearly 99% of modern surface-mount IC layouts by providing a comprehensive spectrum of aperture pitches ranging from $0.3text{ mm}$ to $0.85text{ mm}$ , alongside a micro-fine stencil sheet thickness of $0.1text{ mm}$ (often paired with $0.2text{ mm}$ squeegees/blades for solder paste application). 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

Below is the exhaustive technical specification and structural breakdown of the kit formatted in an extensive tabular layout. 2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools

Technical Specifications & Parameters

Specification Category	Parameter Metric	Complete System Details & Comprehensive Descriptions
Product Identification	Brand / Manufacturer	2UUL Universal Reballing Stencil Kit 2Pcs 0.2mm-0.85mm Mobile Phones BGA Chip Repair Solder Ball Grid Array PCB Rework Tools
	Model Designation	BG02 (Universal AB Edition)
	Product Type	Universal Ball Grid Array (BGA) Solder Reballing Matrix Stencil Plates
Physical Attributes	Package Quantity	2 Pieces Per Pack (Comprising 1x Plate ‘A’ and 1x Plate ‘B’)
	Stencil Dimensions	$100text{ mm} times 85text{ mm}$ per individual plate
	Stencil Thickness	Ultra-thin $0.1text{ mm}$ sheet profile for highly consistent paste deposition
	Net Weight	$14text{ grams}$ (Ultra-lightweight to prevent physical deformation under hand pressure)
	Gross Weight	$22text{ grams} - 30text{ grams}$ (Including protective anti-static retailing envelope)
Material Science	Base Material	High-Grade, Surgical-Quality Stainless Steel Alloy
	Thermal Properties	Extreme thermal stability; designed to resist warping up to $350^circtext{C}$
	Anti-Static Rating	ESD-Safe, non-magnetic properties to safeguard sensitive logic ICs
Aperture & Pitch Array	Total Array Coverage	Comprehensive grid layouts spanning $0.2text{ mm}$ aperture to $0.85text{ mm}$ pitch steps

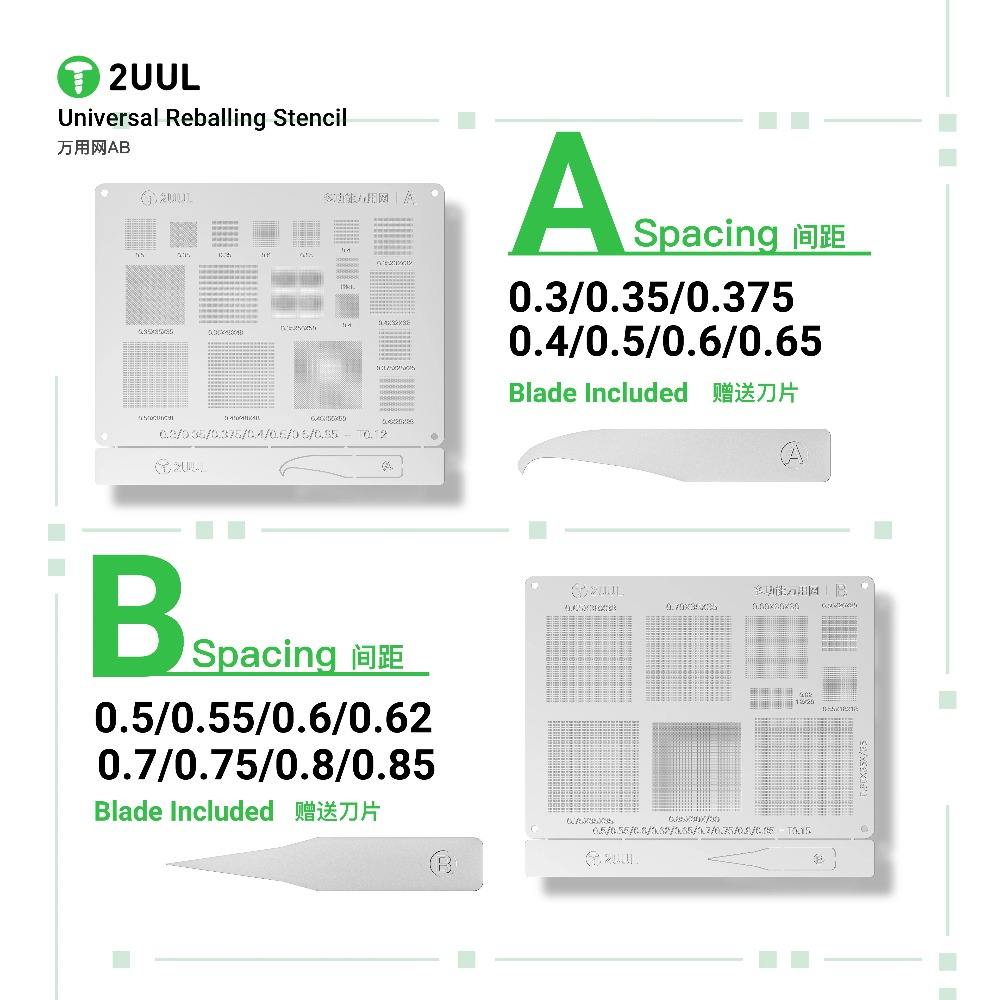

	Plate ‘A’ Pitch Options	7 Discrete Micro-Pitches: $0.3text{ mm}$ \| $$0.35text{ mm$ \| $$0.375text{ m$ \| $\| $0.4text{$ \| $\| $0.5text{$ \| $\| $0.6text$ \| $$ \| $0.65tex$
	Plate ‘B’ Pitch Options	7 Discrete Macro-Pitches: $0.5text{ mm}$ \| $$0.55text{ mm$ \| $$0.6text{ m$ \| $\| $0.62text{$ \| $\| $0.7text{$ \| $\| $0.8text$ \| $$ \| $0.85tex$
	Aperture Geometry	Laser-etched square matrix holes with tapered walls to ensure seamless paste release

Compatibility & Application Spectrum

Target Component	Device Generation Ecosystem	Functional Operational Role
Central Processing Units	Apple A-Series (A11 through A17/Pro Max), Qualcomm Snapdragon, MediaTek Dimensity	High-density central logic reballing for multi-core processors
Memory IC Architectures	NAND Flash, eMMC, eMCP, UFS 2.1/3.1/4.0, LPDDR4X / LPDDR5 RAM	High-capacity data storage and high-speed temporary memory restoration
RF & Wireless Modules	Baseband Modems, Wi-Fi 6E/7 ICs, Bluetooth Transceivers, Front-End Modules (FEM)	Restoring high-frequency signal processing and wireless array connectivity
Power Management (PMIC)	Primary PMICs, Sub-PMICs, Audio Codecs, USB Charge ICs (e.g., Hydra/Tristar)	Repairing power rail delivery networks and micro-voltage lines
Auxiliary Board Sensors	Ambient Light Sensors, Face ID Dot Projectors, Accelerometers, Gyroscopes	Precision micro-reballing for delicate peripheral components

Operational Mechanics & Structural Advantages

Functional Feature	Engineering Mechanism	Real-World Benefit for Technicians
Laser CNC Engraving	Every hole is individual micro-machined with a chemical-polish step	Prevents solder paste from sticking inside the stencils when lifting them up
Dual ‘AB’ Layout System	Bifurcated layout isolates dense pitches from larger power distribution grids	99% Component Coverage: Eliminates the need to buy over 50 individual stencils
Integrated Masking Border	Wide solid steel boundaries surround each individual micro-grid section	Acts as a natural barrier to stop solder paste from smearing onto adjacent components
Thermal Expansion Relief	Expansion channels etched between distinct grid quadrants	Allows the steel sheet to expand uniformly under hot air without buckling or popping
Scraper Balance Design	Uniformly leveled grid heights across the $100text{ mm} times 85text{ mm}$ plane	Enables a $0.2text{ mm}$ solder paste blade to deposit paste perfectly flat in a single swipe

Best Practices for Workflow Optimization

To maximize the lifespan of your 2UUL Universal Kit and ensure zero-defect BGA rework, incorporate the following workflow protocol:

Pre-Cleaning: Prior to alignment, clean the BGA chip pads completely using desoldering braid (wick) and isopropyl alcohol (IPA). The chip surface must be completely flat.
Alignment & Masking: Align the desired grid pattern over the BGA chip under a microscope. Use high-temperature polyimide (Kapton) tape to secure the chip to the back of the stencil plate.
Paste Application: Apply a high-quality solder paste (recommended: $183^circtext{C}$ leaded or $217^circtext{C}$ lead-free paste depending on the device specification). Use a clean $0.2text{ mm}$ scraping blade held at a $45^circ$ angle to pack the apertures firmly.
Thermal Profile: Set your hot air rework station to a low airflow setting (to avoid shifting the stencil) and an appropriate reflow temperature. Heat the plate evenly in a circular motion until all solder spheres gloss and reflow into place.
Post-Maintenance: Clean the stencil plates immediately after use using an ultra-sonic cleaner or an IPA-soaked lint-free wipe. Never use stiff steel wire brushes, as they will scratch and distort the micro-apertures.
