AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

Optimize Your Repair Workflow

The AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools is the ultimate toolset for professionals and DIY enthusiasts looking to repair iPhone models X through 17Pro/Max Mini. With advanced features designed for precision, this kit takes the hassle out of complex repairs. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

Comprehensive 31-in-1 Tool Kit

This innovative reballing stencil station includes 31 high-quality tools, perfectly tailored to handle middle layer repairs on a variety of iPhone models. Whether you’re working on a compact Mini or the versatile 17Pro, this kit ensures compatibility and efficiency for all device sizes. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

Durable and Easy-to-Use Design

Constructed with robust materials, the AMAOE IPX-17 kit is built to last, even in demanding work environments. Its ergonomic and intuitive design allows smooth operation, making it an essential addition to your repair arsenal. Save time, reduce risk, and achieve impeccable results. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

The AMAOE IPX-17 31-in-1 Middle Layer Stencil Station represents the cutting edge of micro-soldering technology, specifically designed for the high-precision demands of modern iPhone motherboard repair. As iPhones have moved toward a “sandwich” motherboard architecture (two PCBs stacked on top of each other), the middle layer—the interconnecting solder balls—has become the most frequent failure point during drops or thermal stress.

This kit provides a comprehensive solution for “reballing” these connections, ensuring that the solder paste is applied with micron-level accuracy before the layers are fused back together.

Technical Specifications & Feature Matrix

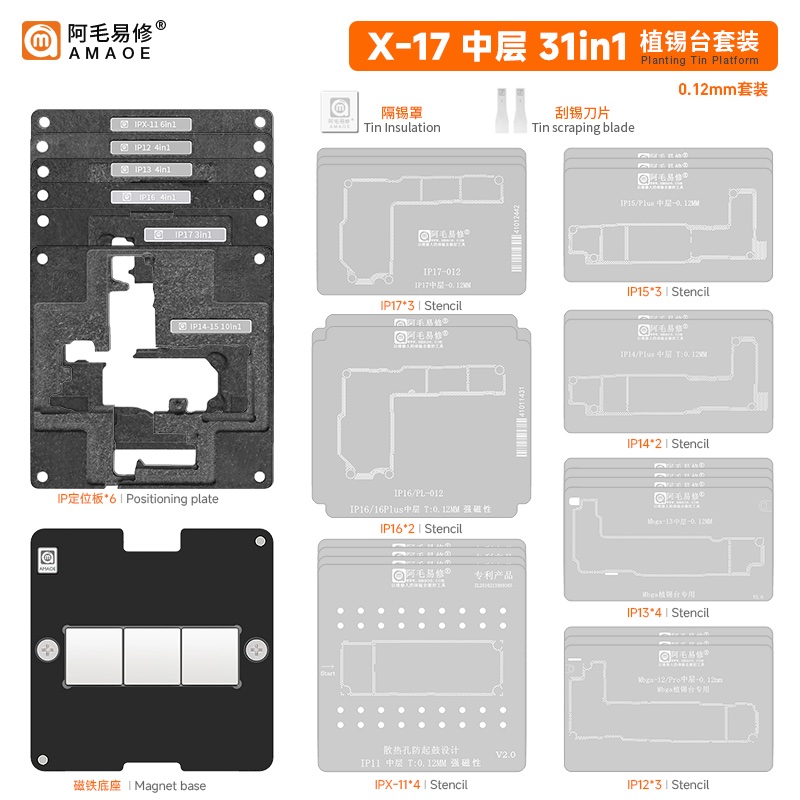

Key Components of the IPX-17 Kit

The IPX-17 is more than just a set of stencils; it is a mechanical fixture system designed to eliminate human error.

1. The Magnetic Universal Base

The foundation of the kit is a heavy-duty, heat-resistant base. It uses powerful magnets to lock the motherboard in place and ensure the stencil remains perfectly flat against the PCB. This prevents “solder bridges,” where solder paste leaks between pads and causes a short circuit. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

2. Precision Steel Meshes (The 31-in-1 Array)

Each of the 31 stencils is laser-cut to match the specific pin-out of different iPhone models. The kit includes specialized meshes for the latest iPhone 16 and 17 series, which feature increasingly complex interposer designs. The holes are square-tapered to ensure easy release of the solder paste after application. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

3. Alignment Pins

Unlike cheaper universal kits, the IPX-17 utilizes physical guide pins. These pins align with the factory screw holes or mounting points on the iPhone logic boards, ensuring that the stencil is not off by even a fraction of a millimeter.

Advanced Design Features

• Heat Dissipation: The synthetic stone base is designed to absorb and dissipate heat evenly. This is crucial because if the base expands too much under a hot air gun, the stencil can warp, ruining the solder ball uniformity.

• Anti-Bulge Technology: AMAOE uses a proprietary steel alloy for their stencils that resists “bulging” when heated. This allows the technician to apply heat directly to the stencil (if necessary) without the mesh lifting away from the board.

• Step-Slot Design: The base features recessed slots tailored to the various shapes of iPhone boards (L-shaped, rectangular, etc.), ensuring the board sits flush and doesn’t “rock” during the tinning process.

Operational Workflow

Using the IPX-17 involves a systematic four-step process that significantly increases the success rate of middle-layer repairs:

1. Preparation: The technician cleans the old solder from the “sandwich” faces of the upper and lower logic boards using a soldering iron and desoldering wick.

2. Positioning: The motherboard is placed into the corresponding slot on the IPX-17 base. The magnetic stencil for that specific model is snapped on top.

3. Tin Planting: Solder paste (usually 183°C or 138°C depending on the technician’s preference) is spread across the stencil. The precision holes ensure only the pads receive the paste.

4. Reflow: A hot air station is used to melt the paste into uniform spheres. Once cooled, the stencil is removed, leaving behind perfect solder balls ready for the two boards to be joined.

Why the IPX-17 is Essential for iPhone 14-17

Starting with the iPhone 14 and continuing into the 16/17 series, Apple has moved toward even denser pin maps. Manual reballing is virtually impossible on these models. The IPX-17’s 31-in-1 configuration is specifically updated to handle the Pro Max variants, which have larger surface areas and more “dummy” pads for structural integrity. AMAOE IPX-17 31in1 Middle Layer Universal Reballing Stencil Station kits for iPhone X-13 14 15 16 17Pro/Max Mini Fixture Tools

By investing in the IPX-17, technicians gain a future-proof tool that covers nearly a decade of iPhone hardware iterations in a single, compact workstation.
