Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

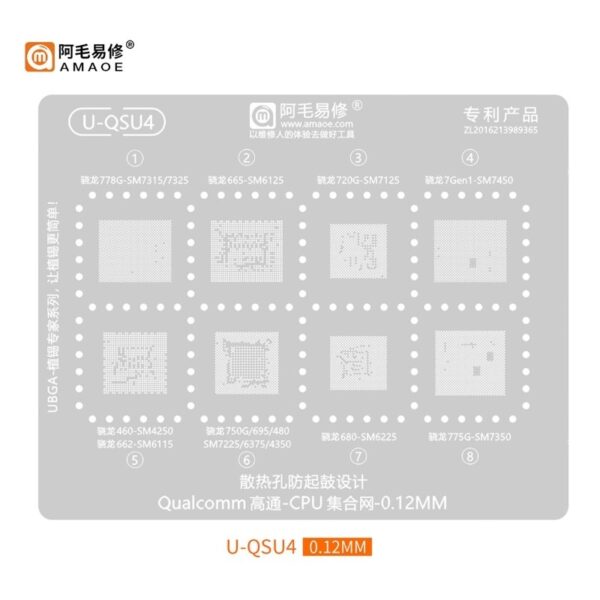

The AMAOE U-QSU4 stencil has emerged as a pivotal tool in the realm of mobile repairing, particularly for professionals engaged in intricate tasks like reballing and micro soldering. This stencil is expertly designed to meet the rigorous demands of technicians who strive for precision and efficiency in their work. Its specifications boast high-quality materials that ensure durability and optimal performance during use. Made from stainless steel, the AMAOE U-QSU4 stencil is not only resilient but also provides a clear and accurate application of solder paste, crucial for ensuring reliable connections on circuit boards. AMAOE U-QSU4 STENCIL
One of the unique features of the AMAOE U-QSU4 stencil is its precise design, which includes multiple holes that are engineered for specific components commonly found in various mobile devices. This level of detail allows technicians to perform their repairs with increased accuracy, ultimately reducing the probability of errors that can arise from misalignment. Additionally, the stencil supports a wide range of mobile device models, making it a versatile tool in any repair shop. Whether working on popular flagship smartphones or more obscure models, technicians can depend on the compatibility of the AMAOE U-QSU4 stencil to address their repair needs efficiently. AMAOE U-QSU4 STENCIL
Furthermore, the usage of this stencil not only speeds up the repair process but also enhances overall quality. With a reputable tool like the AMAOE U-QSU4, technicians can ensure that the soldering process is executed flawlessly, leading to improved performance of the repaired device. The stencil’s role in mobile repairing cannot be overstated, as it significantly impacts the success of technical repairs, allowing for safe and effective restoration of functionality in mobile devices.
The utilization of the AMAOE U-QSU4 stencil is essential for precise mobile repairing, and following a systematic approach can enhance the effectiveness of your repair process. Begin by ensuring that both the stencil and the mobile device’s surface are clean and free of any debris. This preparation is vital for achieving optimal alignment and application of solder paste.
Next, it is crucial to align the stencil properly on the mobile device. Place the stencil over the desired area, ensuring that the openings match up precisely with the components on the device. Many technicians find it helpful to use alignment pins or markers to facilitate a more reliable connection. Once the stencil is secured in place, double-check the alignment before proceeding to the next step, as even slight misalignment can lead to application inaccuracies.
After confirming the correct alignment, proceed to apply the solder paste. To do this, use a spatula or scraper to evenly distribute the paste across the openings of the stencil. Make sure to apply consistent pressure to ensure an adequate amount of solder paste fills each hole without overflowing. Once applied, carefully lift the stencil away from the device, ensuring that the solder paste remains in place. If you encounter any issues such as insufficient paste filling, consider adjusting your technique or using a different type of solder paste that may better suit your requirements.
Maintaining and cleaning the AMAOE U-QSU4 stencil is as important as its initial use. After each application, ensure that the stencil is cleaned thoroughly with suitable solvents to prevent any residue buildup that could affect future repairs. Regular inspections for wear and tear will help in extending the stencil’s lifespan, ensuring it remains a reliable tool in your mobile repair toolkit.
