Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

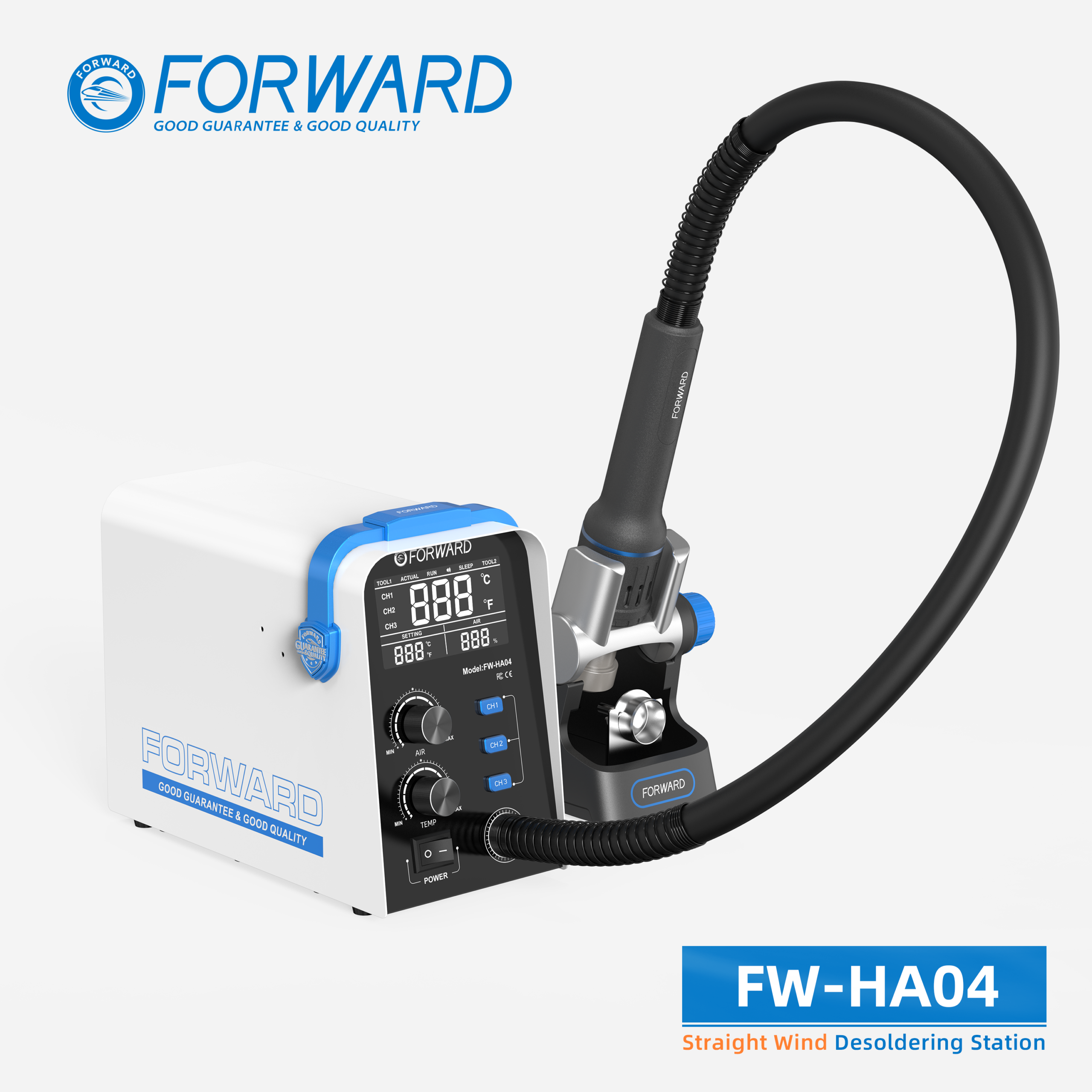

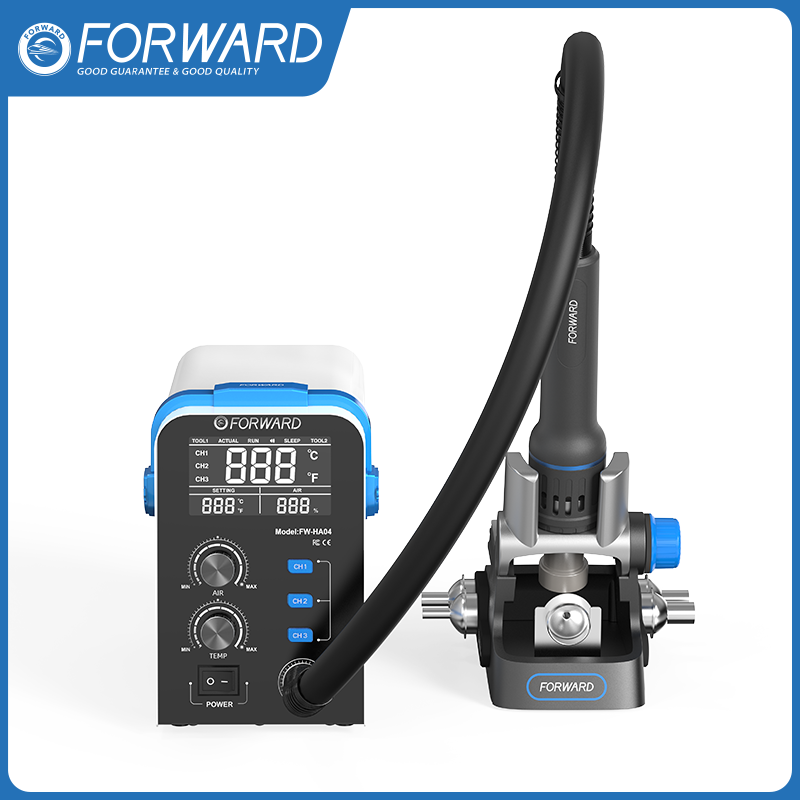

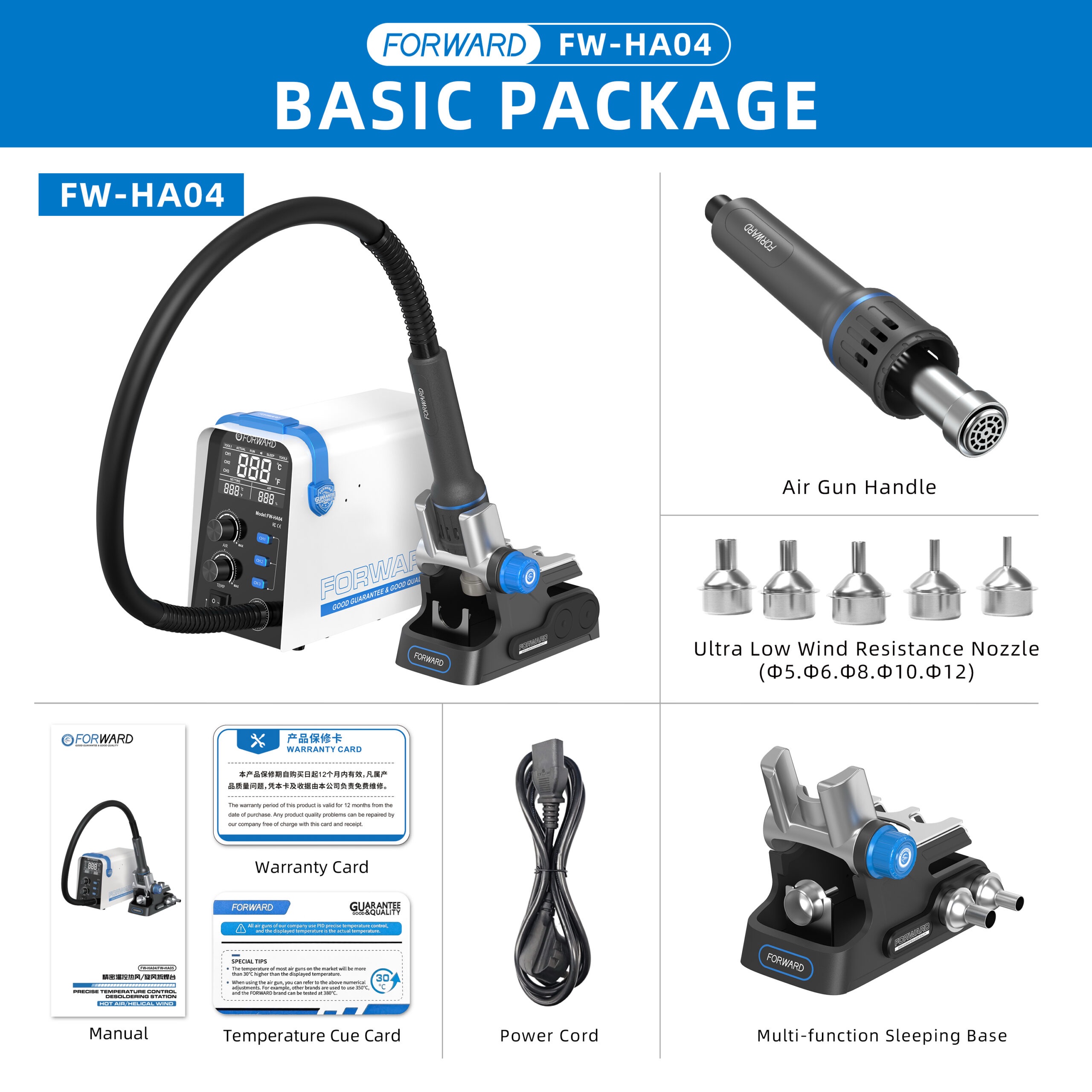

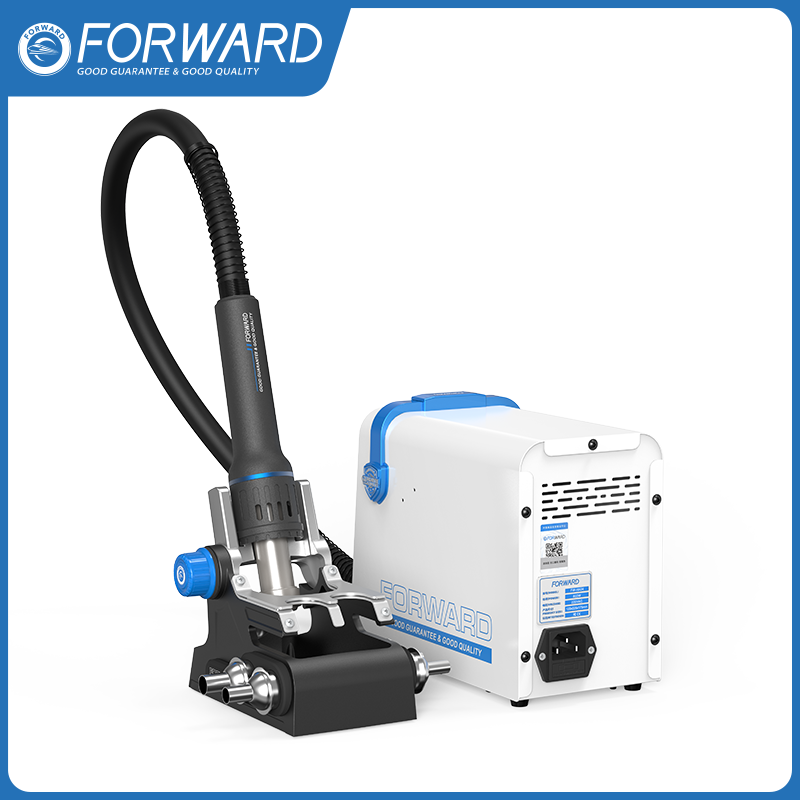

FORWARD FW-HA04 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair Experience the cutting-edge innovation of the FORWARD FW-HA04 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair, equipped with advanced helical wind technology to deliver consistent, precise hot air control. Perfect for intricate SMD rework and professional soldering tasks, this tool ensures unmatched performance.
FORWARD FW-HA04 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair Designed for BGA motherboard repairs, the FORWARD FW-HA04 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair offers stable heat output to ensure safe and efficient operation. Whether you’re tackling delicate components or high-stakes projects, this soldering station is your trusted partner.
Built for durability, the FW-HA04 features a user-friendly design that simplifies operational complexity. Ideal for beginners and professionals alike, it merges practicality with excellence for optimal soldering experiences.
The FORWARD FW-HA04 New Arrival Helical Wind Desoldering Station is a professional-grade hot air rework gun meticulously engineered for complex electronics repair. It is widely preferred by technicians for high-precision operations such as BGA reballing, mobile phone motherboard repairs, and SMD component level rework due to its stable spiral airflow dynamics and advanced thermal regulation.
The following exhaustive tabular breakdown covers every aspect of the FORWARD FW-HA04, including electrical ratings, structural dimensions, airflow dynamics, and safety protocols.
Traditional straight-airflow hot air rework guns push air in a direct column, which risks blowing away tiny, lightweight SMD components (like 0201 or 0402 resistors) surrounding a BGA chip. The FW-HA04 resolves this by utilizing a high-pressure vortex fan that spins the air in a “soft” helical column. This delivers uniform, swirling heat distribution that evenly bathes the solder joints without disturbing nearby microscopic components.
Technician efficiency relies heavily on automation. The handle incorporates a magnetic induction circuit:
Lift-to-Work: Lifting the handle causes the station to instantly trigger the 800W core, hitting target operational temps within seconds.
Drop-to-Cool: Returning it to its cradle forces the station into an automatic high-volume cooling loop to safely dump heat below 100°C before shutting off airflow and shifting to sleep mode. This saves power and preserves the longevity of the ceramic element.
