₹6,000 Original price was: ₹6,000.₹3,899Current price is: ₹3,899.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

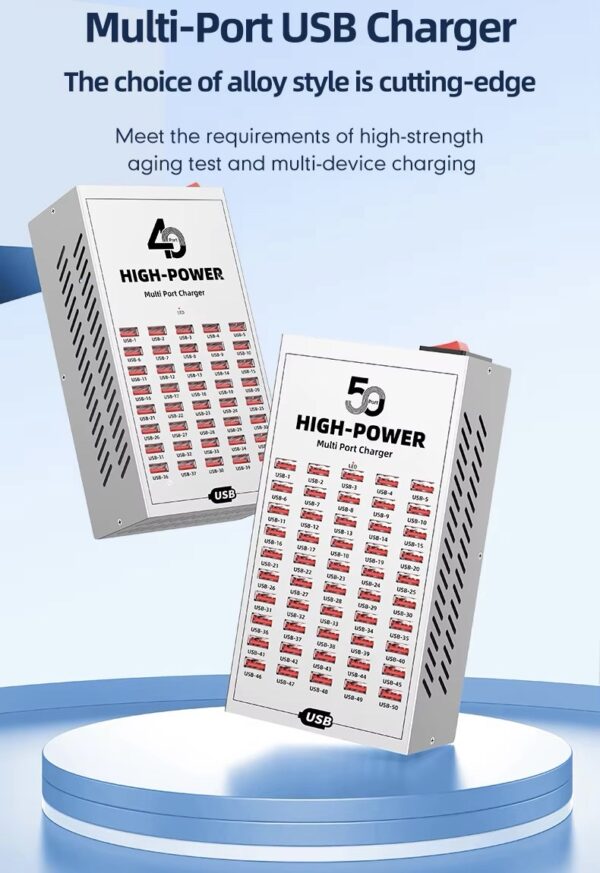

HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging Streamline your desktop setup with the HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging. Designed to deliver unparalleled performance, this robust device supports simultaneous charging for iPhones, smartphones, cameras, and more, ensuring you stay powered up wherever you are. Its intelligent power distribution optimizes charging speeds, making it perfect for tech-savvy professionals and busy households alike. HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging
Crafted from premium iron alloy, this charger boasts exceptional durability and reliability. The built-in cooling fan enhances thermal management, ensuring stable performance even during extended use. Its heat-resistant design makes it safe for long-term charging sessions and ideal for high-demand environments.
The HIGH POWER Multi USB Charger works seamlessly across a voltage range of 110V to 220V, making it suitable for global usage. Whether you’re at home, in the office, or traveling, this charging station is your go-to solution for powering multiple devices efficiently. The 50-port setup guarantees convenience while eliminating the hassle of dealing with multiple chargers. HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging

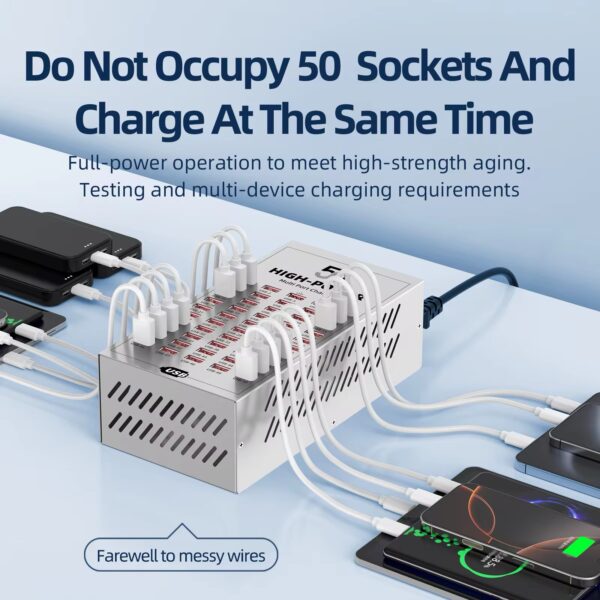

The HIGH POWER 50-Port Iron Alloy Desktop USB Charging Hub is a ruggedized, enterprise-grade multi-device power management system. Engineered for high-density environments, this system consolidates fifty standard power adapters into a single centralized desktop footprint. Delivering a combined max capacity of 200W (40A), it provides simultaneous charging for low-to-medium-drain devices, including Apple iPhones, Android smartphones, digital cameras, power banks, and portable USB accessories. HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging
Constructed inside a military-spec iron alloy frame and stabilized by an active dual-fan cooling topology, this station is built to survive continuous 24/7 deployment cycles in commercial and high-footprint organizational ecosystems. HIGH POWER 50-Port Iron Alloy 200W Multi USB Charger Built-in Cooling Fan for iPhone Smartphones Camera (110V-220V)Desktop Charging
The central challenge of a 50-port charging assembly is managing load distribution without short-circuiting downstream batteries. This unit implements an advanced asynchronous power management structure:
Smart IC Load Balancing: Each individual USB Type-A port is routed through an isolated tracking matrix governed by independent Smart IC chips. When a device is connected, the micro-controller samples its internal resistance and battery state to determine optimum current delivery up to $2.4\text{A}$.
Dynamic Matrix Scaling: While a single port can spike up to $2.4\text{A}$ for rapid charging, the aggregate power is pooled under a hard system ceiling of 200W / 40A. When all 50 slots are occupied, the internal load balancing engine dynamically manages the system down to an evenly allocated current layout, matching power needs mathematically across active channels.
Trickle Charge Management: Built-in auto-switch intelligence senses when a connected smartphone or camera battery climbs past 99% capacity. The module drops the localized current feed down to a low-amperage state ($<100\text{mA}$), completely shielding the device’s lithium-ion polymer core from chemical over-saturation and extending battery lifecycle health by up to 30%.

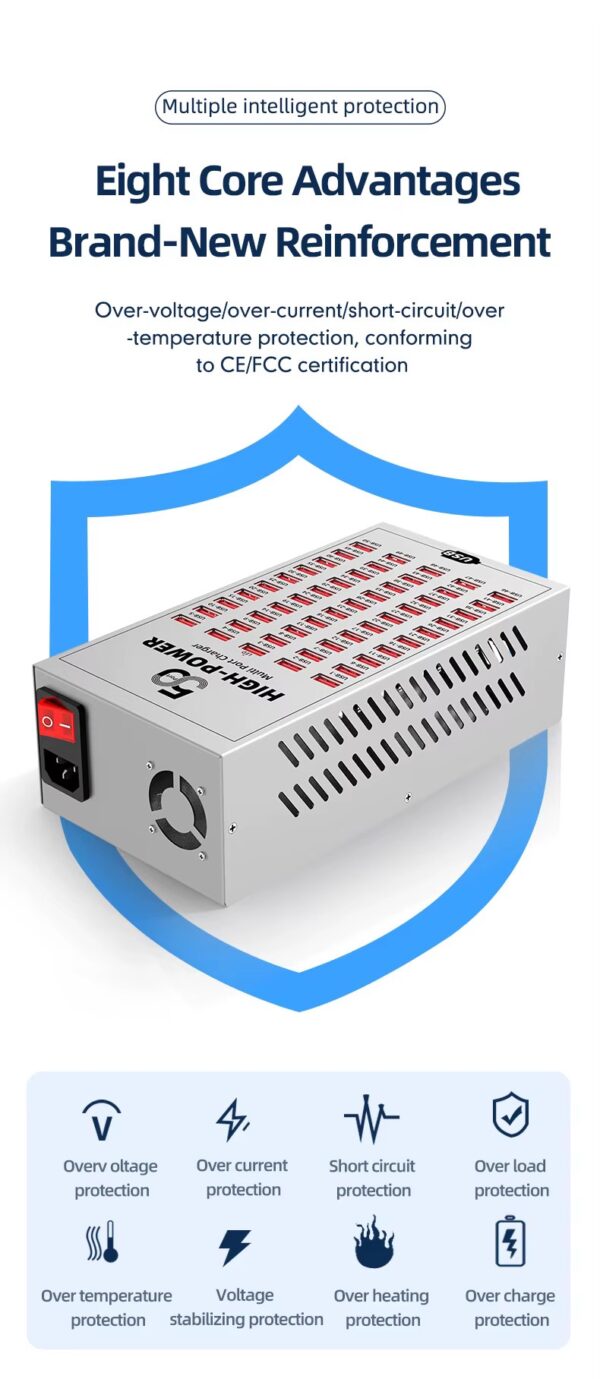

Operating mass power in consumer-accessible zones requires multi-tier fail-safes. The internal board layout integrates a hardware-level 7-in-1 Safety System:
Over-Temperature Control: Monitors internal ambient temperature via thermal resistors. It auto-throttles output if temperatures breach design baselines.
Short-Circuit Isolation: If a damaged charging cable shorts a port, that specific channel is digitally isolated instantly without tripping or resetting the other 49 ports.
Over-Voltage Protection (OVP): Filters fluctuating line inputs from dirty AC grids, keeping internal step-down conversion locked squarely at $5\text{V}$.
Over-Current Protection (OCP): Places an electronic limiter on every circuit to prevent high-amperage draw errors.
Over-Discharge Countermeasures: Prevents downstream power loops from accidentally siphoning power backward from connected equipment.
Surge and Lighting Suppression: Diverts sudden electrical spikes to ground, protecting logic boards from fried lines.
Electromagnetic Shielding: The dense iron alloy enclosure acts as a natural Faraday cage, minimizing EMI emissions to clean up nearby audio, wireless, or sensitive clinical equipment.

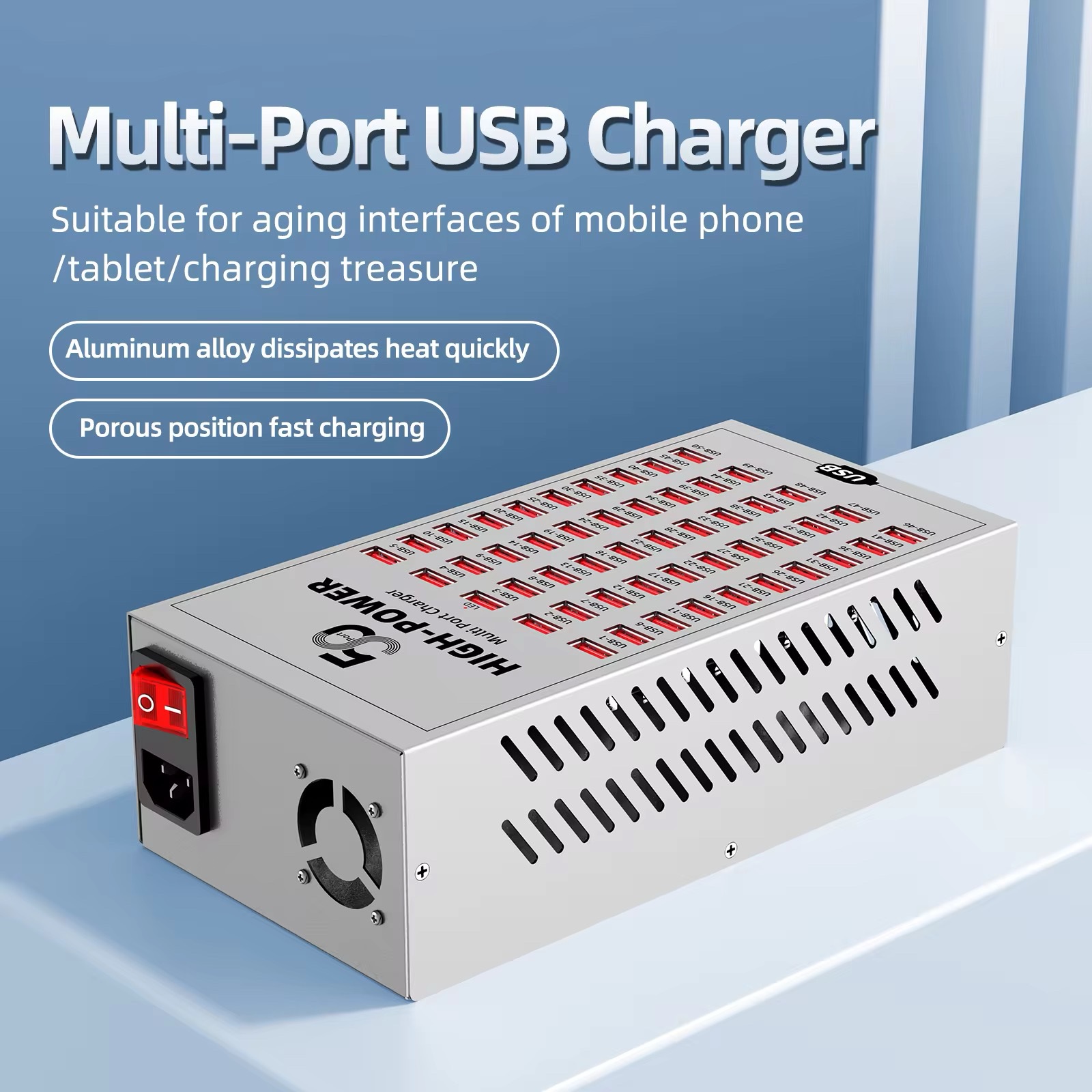

High-density power translation from AC to DC inevitably yields thermal dissipation stress. This system circumvents heat-soak through a multi-stage active/passive cooling system:
Iron-Alloy Chassis Conduit: Unlike standard plastic alternatives that trap internal radiant energy, the metallic frame serves as an expansive structural heat radiator.
Dual Turbo Extraction Fans: Positioned at opposite ends of the internal structure, two miniature high-static pressure fans continuously draw fresh ambient air over internal components and exhaust heated air out through precision-milled structural vents.
Integrated Aluminum Heat Sinks: Heavy-duty internal step-down transformers are directly bonded to aluminum fin blocks to accelerate core component cooling.
Thanks to its robust international input compatibility ($110\text{V}-220\text{V}$), this charging block is universally ready for global integration:
Educational Institutions & Testing Labs: Centralized charging setups for large groups of student tablets, smartphones, and e-readers.
Media Production & Events: Simultaneous staging points for drone batteries, production cameras, flash accessories, and crew communication transceivers.
Corporate Hubs & Hospitality: Zero-fire-risk public multi-charging lockboxes or desktop stations for visiting clientele and enterprise teams.
1× Industrial-Grade 50-Port USB Charging Hub
1× Heavy-Duty 3-Prong Grounded Detachable AC Power Cable (5ft / 1.5m)
1× Technical Operation and Safety Manual
