Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

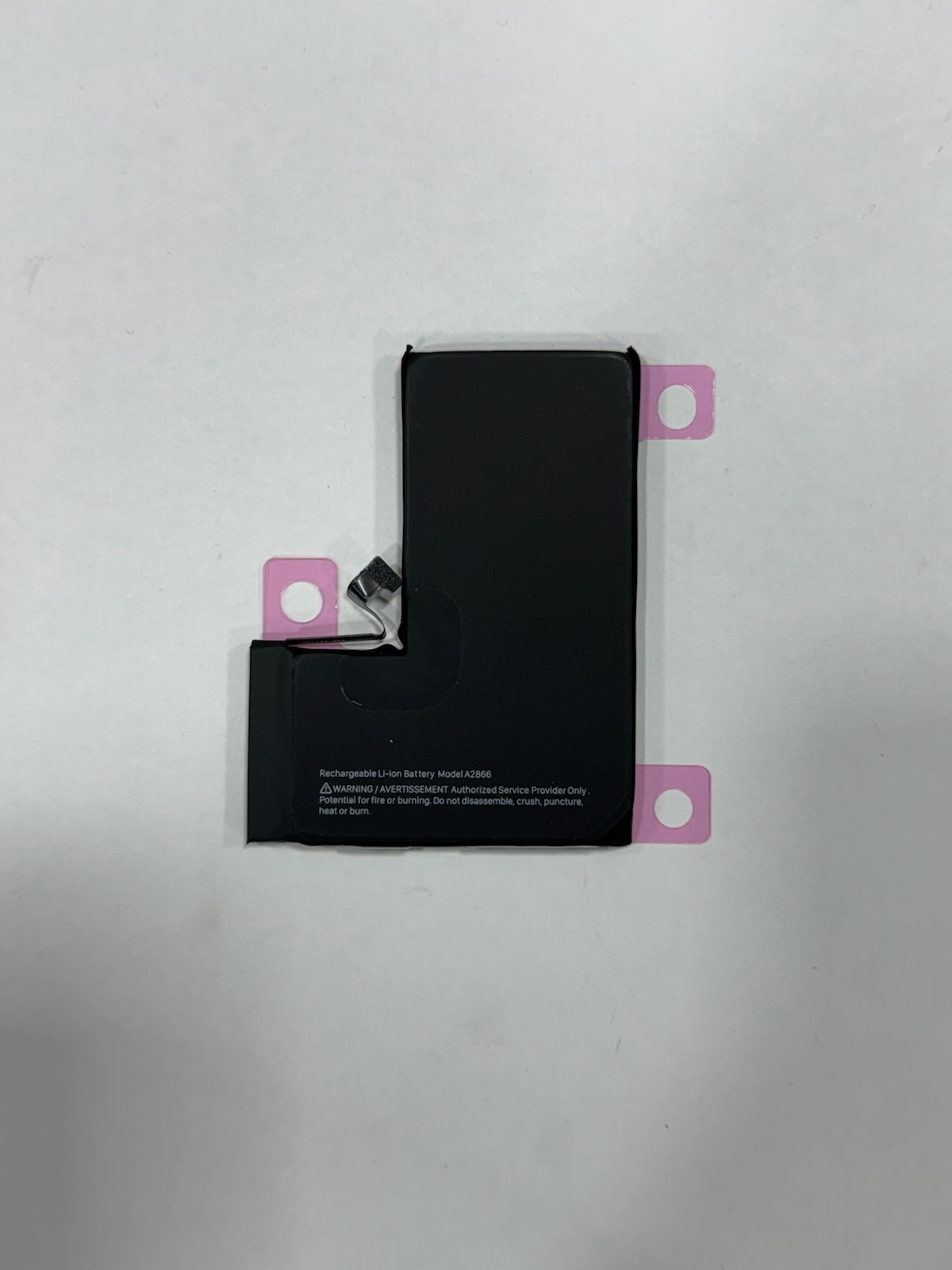

The iPhone 14 Pro Model A2655 High Capacity Diagnostic Battary 3490mah is engineered to deliver exceptional performance. With a robust 3490mAh capacity, it ensures long-lasting power, keeping your device ready for extensive usage without frequent charging interruptions. iPhone 14 Pro Model A2655 High Capacity Diagnostic Battary 3490mah
Perfect for diagnostic purposes, this battery is tailored to meet the demanding needs of technicians and repair enthusiasts. It provides reliable and consistent performance, making it an excellent choice for troubleshooting and testing your iPhone 14 Pro.
Crafted for compatibility with the Model A2655 of the iPhone 14 Pro, this battery guarantees a perfect fit and seamless integration. Built with high-quality materials, it ensures durability and safety, giving you peace of mind while enhancing your smartphone’s operational efficiency. iPhone 14 Pro Model A2655 High Capacity Diagnostic Battary 3490mah
The Apple iPhone 14 Pro (Model A2655, primarily the North American / US specification variant) originally ships with a stock lithium-ion battery capacity of 3,200 mAh (12.38 Wh). However, the aftermarket repair ecosystem features High-Capacity Diagnostic Replacement Batteries rated at 3,490 mAh. These upgraded diagnostic cells utilize high-density lithium-polymer chemistry and integrated microchips to bypass standard iOS restriction flags, providing roughly 9% more energy density over the stock configuration. iPhone 14 Pro Model A2655 High Capacity Diagnostic Battary 3490mah
Below is the comprehensive technical overview and full specification profile for the iPhone 14 Pro Model A2655 equipped with an upgraded 3,490 mAh high-capacity diagnostic battery. iPhone 14 Pro Model A2655 High Capacity Diagnostic Battary 3490mah
The host device architecture dictates how the diagnostic battery interacts with resource allocation under heavy system overhead.
When servicing the iPhone 14 Pro Model A2655, replacing the battery normally prompts an “Important Battery Message” within iOS settings due to cryptographic hardware serialization linked to the original factory cell.
To circumvent this limitation, premium Diagnostic Batteries utilize advanced micro-controllers on their integrated flex cables. Tech-repair professionals often use specialized programmers (like JCID V1S Pro or QianLi iCopy) to copy over unique calibration data from the original battery management system (BMS) directly to the diagnostic chip. This process ensures the phone correctly populates the 100% Battery Health State metrics inside the core operating system and mitigates unwanted device log warnings.
