LANRUI M191 Universal Smart Switch Clip

LANRUI M191 Universal Smart Switch Clip

Versatile and Universal Smart Switch Solution

Upgrade your home or workspace with the LANRUI M191 Universal Smart Switch Clip. Designed to fit various switch types, this smart clip seamlessly integrates into your environment, giving you effortless control over your devices without the need for extensive wiring or tools.

Quick and Effortless Installation

Say goodbye to complicated setups! The LANRUI M191 features a clip-on design that ensures a secure and hassle-free installation process. Whether you’re a DIY enthusiast or a beginner, you’ll appreciate the simplicity and convenience this product offers. LANRUI M191 Universal Smart Switch Clip

Durability Meets Modern Design

Built with high-quality materials, the LANRUI M191 is not only durable but also sleek in its appearance. Its modern design complements any interior style, making it a perfect fit for both residential and commercial spaces. Enjoy a smart solution that looks as good as it performs.

The LANRUI M191 Universal Smart Switch Clip is a professional diagnostic and hardware tool designed for mobile repair technicians. It bypasses the need for original power buttons, flex cables, or full device assembly to power on smartphone and tablet motherboards. Below is a comprehensive, deeply detailed breakdown of its specifications, mechanical design, electrical traits, and operational functionalities.

Technical Specifications Matrix

Detailed Functional & Operational Overview

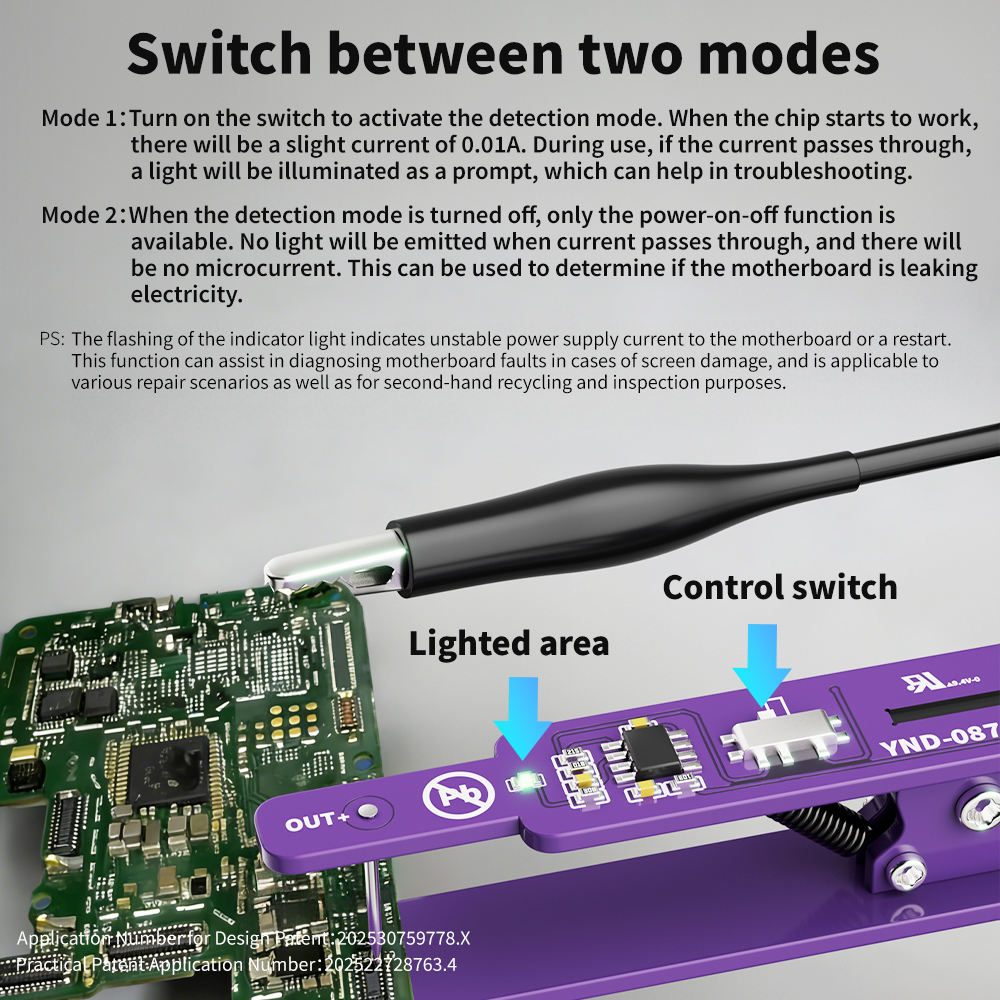

1. Dual-Mode Diagnostics Architecture

The LANRUI M191 sets itself apart from standard boot cables through its physical toggle switch, which routes the incoming current path through two distinct functional loops depending on the diagnosis required:

• Mode 1: Active Detection Mode (LED Indicator Enabled)

  When toggled on, the tool pulls a minor $0.01\text{ A}$ baseline current to prime its internal diagnostics circuit. As current flows directly into the logic board, an onboard LED acts as a real-time hardware visualizer. LANRUI M191 Universal Smart Switch Clip



  • Stable Glow: Indicates steady, regular power draw within expected parameters.

  • Flashing/Blinking LED: Instantly alerts the tech to an unstable main power line, a cycling loop, structural PMIC (Power Management IC) reset loops, or automated safety shutdowns caused by a short down the line. LANRUI M191 Universal Smart Switch Clip



• Mode 2: Isolated Power-On Mode (LED & Micro-Current Disabled)

  This mode bypasses the internal diagnostic light circuit entirely, eliminating any baseline current draw from the tool itself. This creates a completely clean, isolated circuit down to $0.000\text{ A}$. Technicians rely exclusively on this mode to check for microscopic current leakage on the $V_{BATT}$ or $V_{BUS}$ lines using their main DC power supply meter before initiating a boot sequence. LANRUI M191 Universal Smart Switch Clip

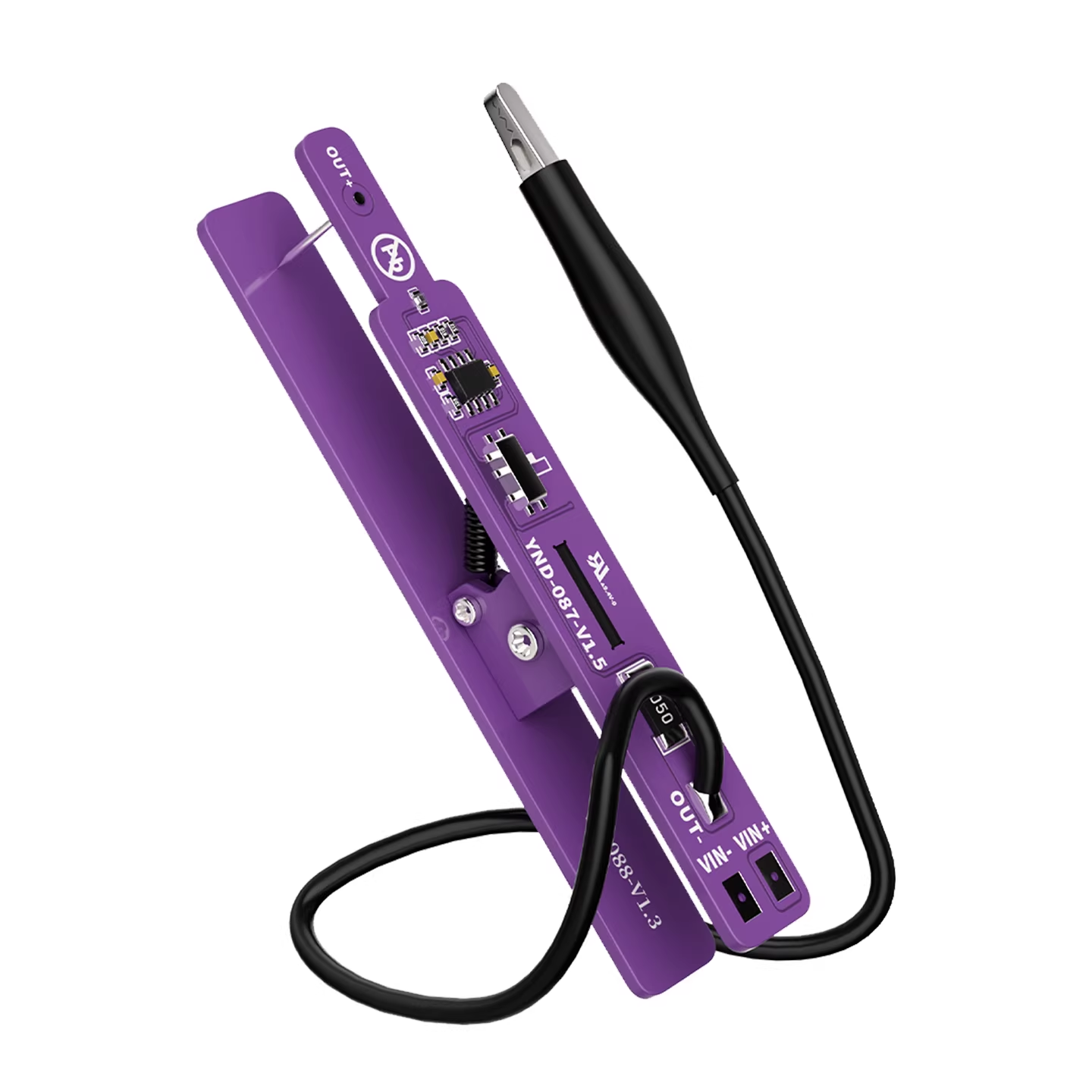

2. Universal Clamp Mechanism vs. Traditional Boot Cables

Traditional motherboard testing methods require expansive, bulky boot cable kits featuring dozens of individual FPC (Flexible Printed Circuit) connectors tailored to specific phone models. This approach presents several challenges: cables frequently wear out, they become obsolete when new phone generations release, and wrong connections risk bending delicate motherboard pins. LANRUI M191 Universal Smart Switch Clip

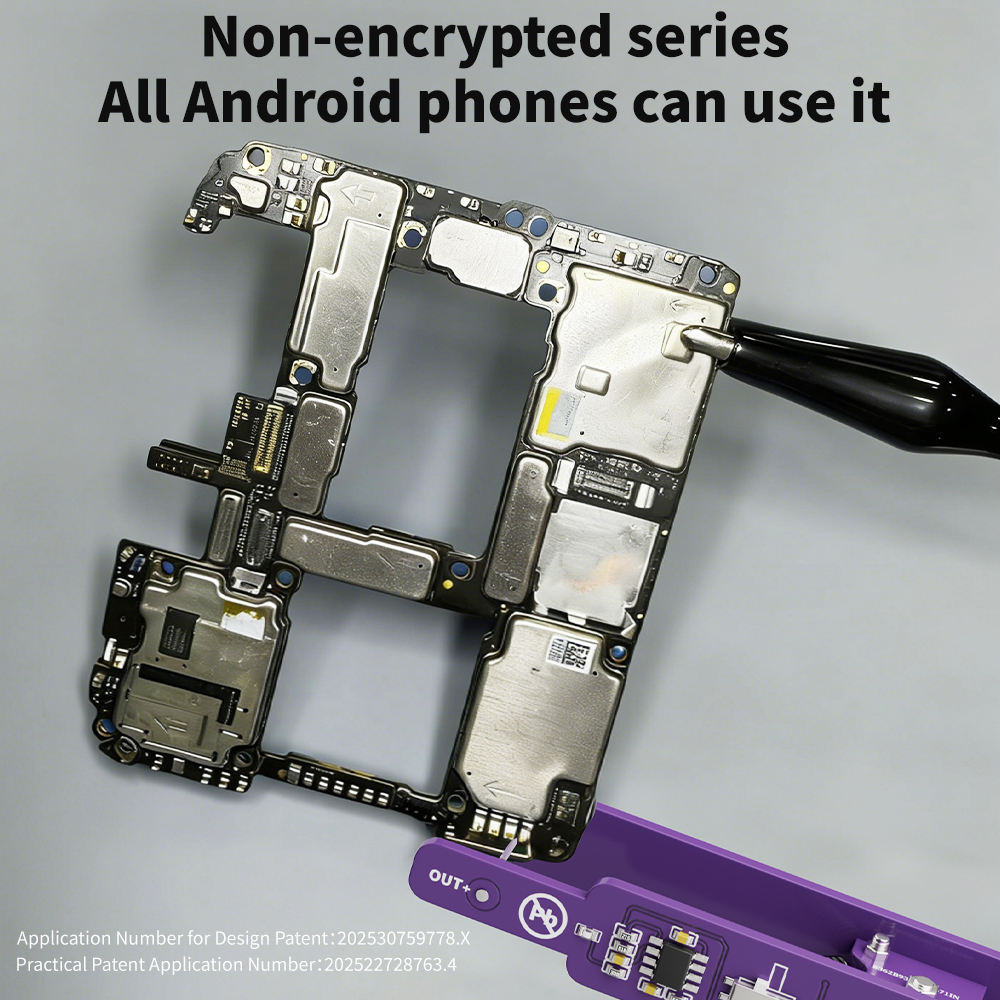

The LANRUI M191 replaces these complex setups with a smart, universal spring-loaded clamp mechanism. Its gold-plated contact jaws are engineered to fit directly over the generic positive ($V_{BATT}$) and negative ($GND$) structural terminals of any unencrypted phone or tablet motherboard. This clip mechanism applies even, calibrated mechanical pressure to maintain an uninterrupted electrical flow, solving the common “rebound” disconnect problem often encountered during software flashing or CPU reballing diagnostics. LANRUI M191 Universal Smart Switch Clip

Applications in Advanced Mobile Diagnostics

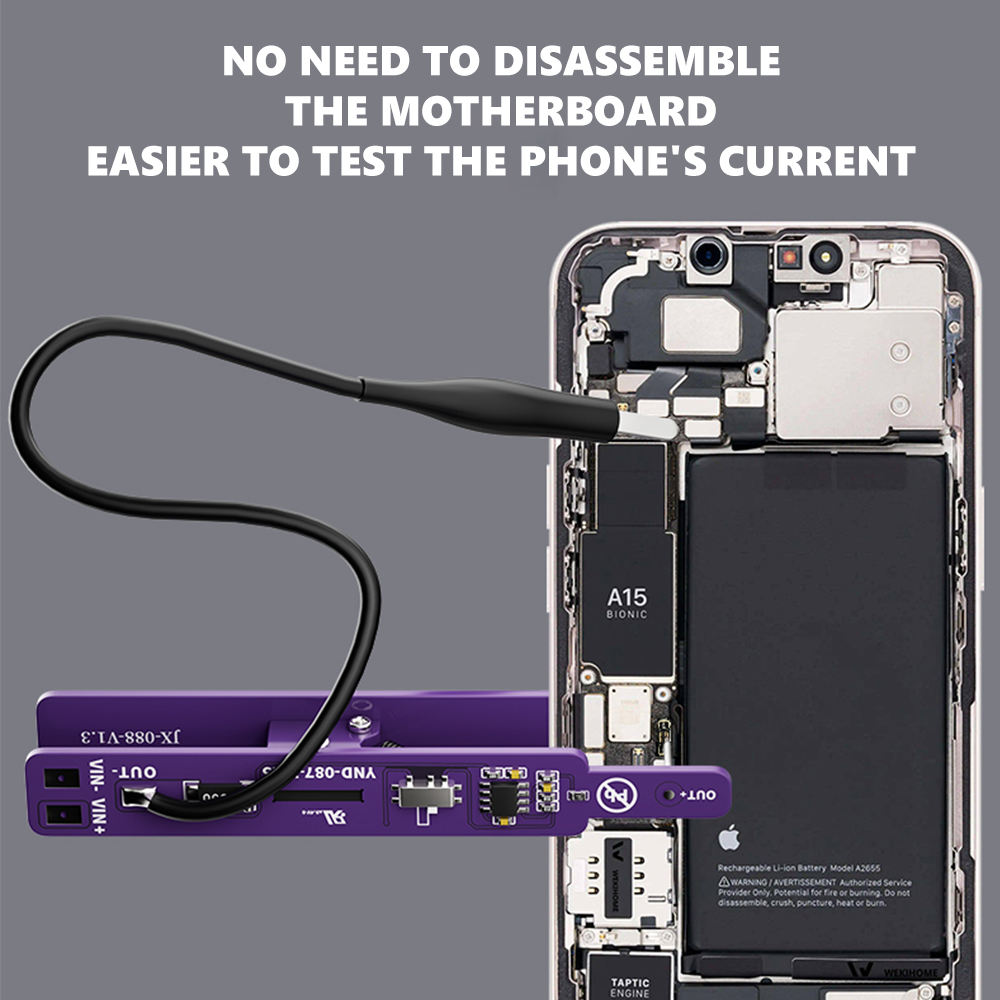

• No-Disassembly Hardware Validation: Technicians can test naked motherboards during housing transfers or screen replacements without routing fragile power buttons or volume flex cables back through the frame. LANRUI M191 Universal Smart Switch Clip



• Dual-Cell Battery Emulation: Many modern flagship smartphones feature split dual-battery configurations that fail to boot with standard single-line diagnostic cables. The M191 features balancing logic capable of triggering the startup sequence on dual-cell Android architectures and iPads. LANRUI M191 Universal Smart Switch Clip

• Refurbishing & Recycling Inspections: Provides recycling depots and second-hand verification benches a single tool to instantly boot, benchmark, and check the power health of random assortments of incoming Android and iOS devices. LANRUI M191 Universal Smart Switch Clip

• Post-Repair Stress Testing: Ideal for monitoring system stability immediately after completing demanding micro-soldering tasks, such as replacing a CPU, UFS storage chip, or baseband processor. LANRUI M191 Universal Smart Switch Clip
