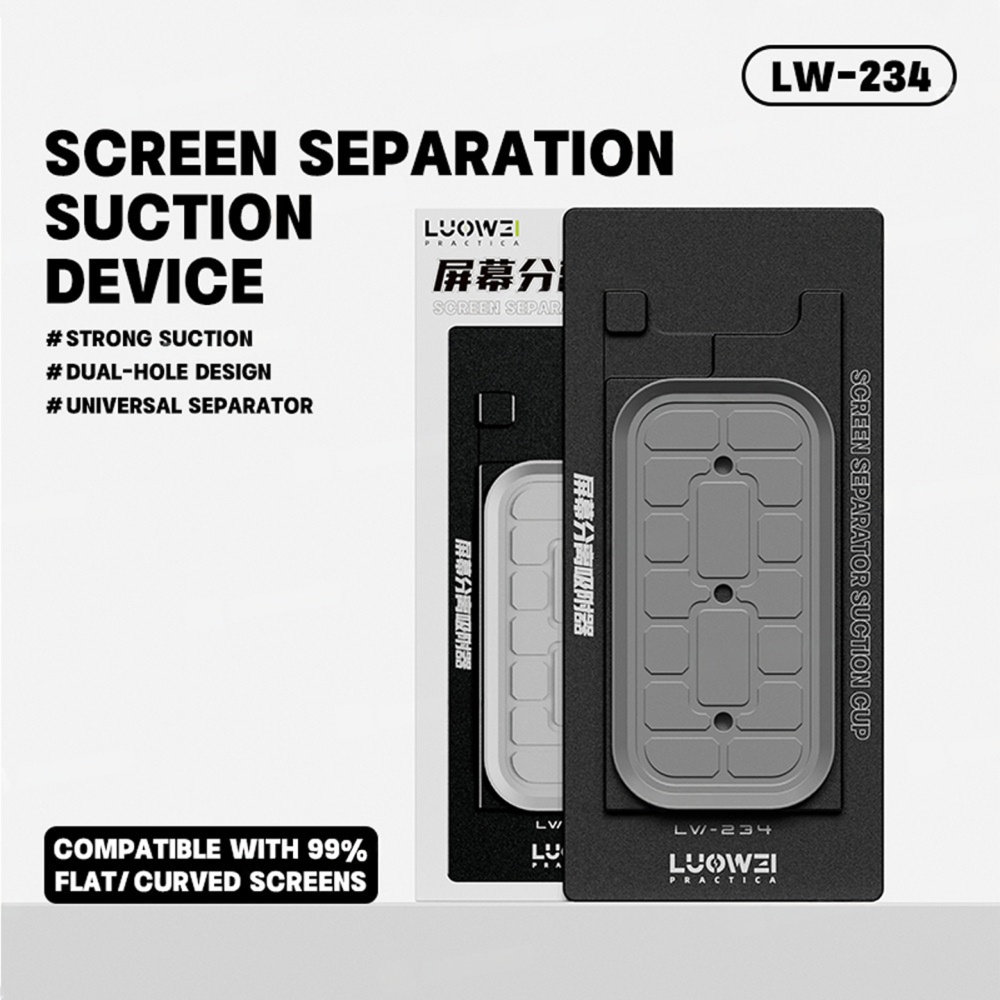

Luowei LW-234 Screen Separation Suction

Precision Engineering for Screen Repair

The Luowei LW-234 Screen Separation Suction is meticulously designed for professionals and DIY enthusiasts in need of an efficient screen repair tool. Built for precision, this suction-based solution ensures smooth and hassle-free screen separation without risking damage to delicate components. Luowei LW-234 Screen Separation Suction

Durable and User-Friendly Design

Crafted with high-quality materials, the LW-234 offers durability and long-term performance you can count on. Its ergonomic design and easy-to-grip handles provide a comfortable user experience, making it an indispensable tool in your repair kit. Luowei LW-234 Screen Separation Suction

Versatile and Practical for Every Workspace

Whether you’re working on mobile phones, tablets, or other electronic devices, the Luowei LW-234 Screen Separation Suction adapts effortlessly to meet your repair needs. Its compact size makes it an ideal choice for professionals working in tight spaces or on the go. Luowei LW-234 Screen Separation Suction

The Luowei LW-234 Screen Separation Suction Fixture is an essential, heavy-duty repair platform engineered for smartphone and tablet technicians. Its primary role is to facilitate the safe, non-heating, and damage-free separation of LCD, OLED, and AMOLED screens from mobile phone midframes. By combining a mechanical screw-driven tension system with premium industrial-grade suction cups, it eliminates the risks of screen cracking, flex cable tearing, or frame scratching associated with manual prying methods. Luowei LW-234 Screen Separation Suction

The comprehensive technical specifications for the Luowei LW-234 are outlined below in a highly detailed tabular format. Luowei LW-234 Screen Separation Suction


1. Product Identity & Overview

Technical Parameter Specification Details Industrial Application Analysis
Brand / Manufacturer Luowei (Luowei Repair Technology) Reputable brand known for precision mobile repair hardware. Luowei LW-234 Screen Separation Suction
Model Designation LW-234 Professional-tier shop tool. Luowei LW-234 Screen Separation Suction
Product Classification Universal Heating-Free Screen Separation Fixture Specialized mechanical separation rig for device teardowns. Luowei LW-234 Screen Separation Suction
Core Separation Method Micrometer-adjust screw tension with dual structural suction cups. Prevents aggressive, uneven manual pulling that ruptures matrix displays. Luowei LW-234 Screen Separation Suction
Primary Industry Focus Smartphone refurbishment, glass replacement, battery swaps, and internal component repair. Used globally in micro-soldering labs and retail electronics repair shops.

2. Structural Composition & Material Science

Component Part Material Composition Engineering Purpose & Advantage
Main Base Chassis High-density, anodized Aircraft-Grade Aluminum Alloy Provides absolute rigidness, preventing the frame from flexing or bowing under high mechanical tension.
Suction Cup Assemblies Premium Industrial-grade Nitrile Rubber (NBR) / PVC Blend Formulated for high elastic memory and airtight seal capabilities on smooth glass surfaces. Resistant to Isopropyl Alcohol (IPA).
Tension Control Screw Hardened Carbon Steel with deep-cut Acme Threads Ensures highly controlled, buttery-smooth upward vertical travel. Minimizes micro-stuttering while lifting the glass.
Side Clamping Jaws Aluminum blocks padded with thick, High-Density EVA Protective Foam Safely grips the sides of the phone frame without marring polished aluminum, titanium, or glass back covers.
Friction Pads (Base) Non-slip Silicone Base Plugs Prevents the entire rig from sliding around on smooth wooden or ESD-safe workbench mats during heavy operations.

3. Physical Attributes & Mechanical Capacity

Dimensional Metric Rated Engineering Value Operational Performance Impact
Net Device Weight Approximately $580\text{ grams}$ ($\pm 10\text{g}$) Provides a planted, stable center of gravity so the tool does not tip over when lifting stubborn, factory-sealed displays.
Gross Shipping Weight Approximately $720\text{ grams}$ Shipped in a high-density foam-lined retail box to protect precision alignment tracks from transit warp.
Physical Dimensions (Base) $210\text{ mm} \times 90\text{ mm} \times 75\text{ mm}$ Compact workbench footprint that stores easily inside standard technician drawers or tool racks.
Suction Cup Diameter $\varnothing\ 45\text{ mm}$ (Dual-cup configuration) Distributes pulling forces evenly across a wide surface area, drastically mitigating localized stress fracture risks.
Maximum Vertical Lift Travel Up to $45\text{ mm}$ of total screw-driven stroke Offers more than enough clearance to safely separate the screen and disconnect interior display/digitizer flex ribbons.

4. Mechanical Design & Safety Profiles

Engineering Vector Specification Capacity Safety Performance Breakdown
Clamping Width Range Adjusts from $55\text{ mm}$ to $95\text{ mm}$ wide Flexibly accommodates compact, old-generation smartphones up to massive modern ultra-premium flagships and small folding devices. Luowei LW-234 Screen Separation Suction
Lifting Tension Increment $< 0.5\text{ mm}$ per full rotation of the dial Allows ultra-precise, micro-level adjustments. Technicians can lift the screen fraction by fraction as the adhesive yields. Luowei LW-234 Screen Separation Suction
Suction Pull Force Rating Up to $15\text{ kgf}$ (Kilogram-force) of reliable vertical hold Easily overcomes original factory water-resistant seals (like IP68 adhesives) without the suction cups slipping off mid-lift. Luowei LW-234 Screen Separation Suction
Buffer Clearance System Integrated groove channel built into the center base Specifically prevents the camera bump on the back of modern phones from bearing any weight, avoiding cracked camera lenses. Luowei LW-234 Screen Separation Suction

5. Functional Capabilities & Process Advantages

Common Repair Failure Mode Luowei LW-234 Countermeasure Matrix Underlying Protective Mechanism
Heat-Induced Display Damage 100% Heating-Free Operation Avoids the risk of yellowing LCD panels, burning out backlight layers, or damaging delicate lithium-ion batteries with hot plates or heat guns.
Torn Display Flex Cables Controlled Linear Vertical Lifting Unlike manual suction rings that can violently snap upward, the screw-driven lift stops instantly whenever the technician ceases turning the dial.
Crushed Frame Corners Parallel Flat Clamping Action Side sliders clamp evenly along the strongest structural axis of the phone chassis rather than crushing delicate corner radiuses.
Adhesive Snap-back Constant Tension Holding The screw system locks in place, keeping constant upward pressure on the glass so the technician can safely inject a drop of alcohol to dissolve glue lines.
