Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

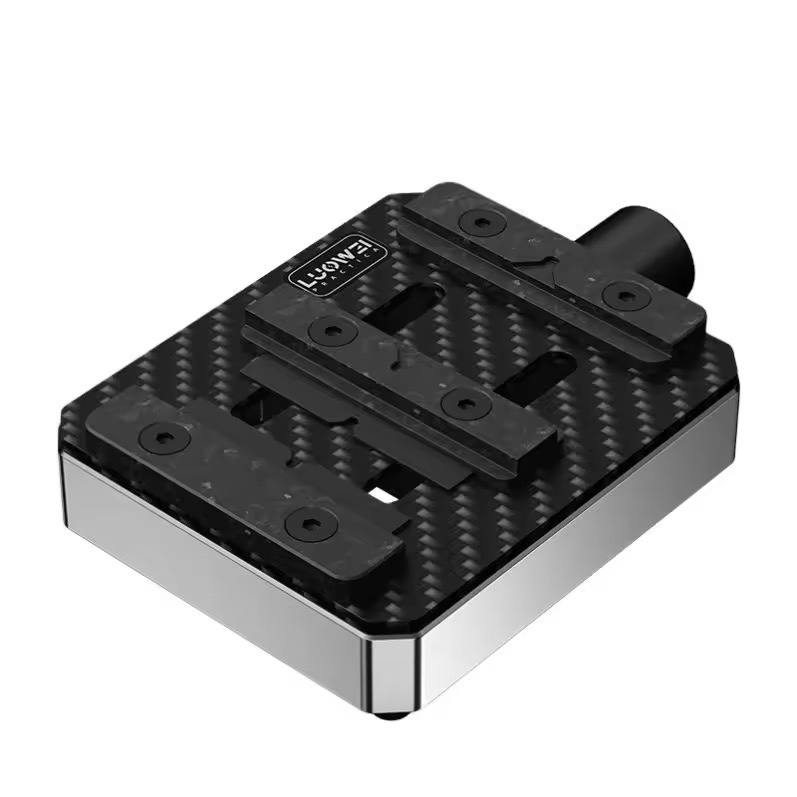

The LUOWEI LW-AP03 Motherboard Clamp is crafted from high-grade carbon fiber, ensuring exceptional durability and resistance to high temperatures. This clamp is designed to withstand demanding conditions, making it ideal for professional hardware repairs and precision applications.
Engineered to last, this motherboard clamp features a superior corrosion-resistant structure. Whether you’re working on PCB boards, chip BGA welding, or stencil repairs, the LUOWEI LW-AP03 ensures reliability without compromising efficiency over time.
Designed with functionality in mind, the LUOWEI LW-AP03 Motherboard Clamp provides stable and secure support for intricate repairs. Its versatility allows seamless handling of various tasks, maintaining accuracy and minimizing operational failure—an essential tool for any repair enthusiast or professional technician.

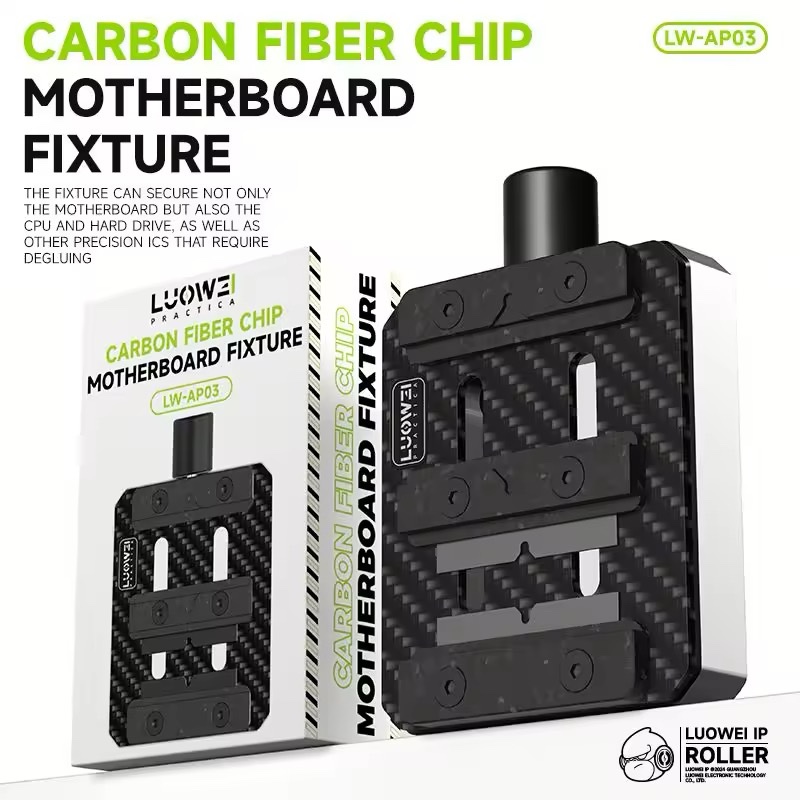

The LUOWEI LW-AP03 Carbon Fiber Motherboard Clamp is a high-precision, professional-grade fixture designed for the delicate task of mobile phone and computer electronics repair. It is specifically engineered to handle micro-soldering, BGA reballing, and chip de-gumming tasks where stability and thermal resistance are paramount.
The LW-AP03 stands out in the “Geek Future” series by Luowei due to its carbon fiber construction. Unlike traditional metal or plastic clamps, carbon fiber provides a unique combination of high strength and low thermal conductivity, ensuring that heat from a hot air gun or soldering iron stays focused on the component rather than being sucked away by the fixture.

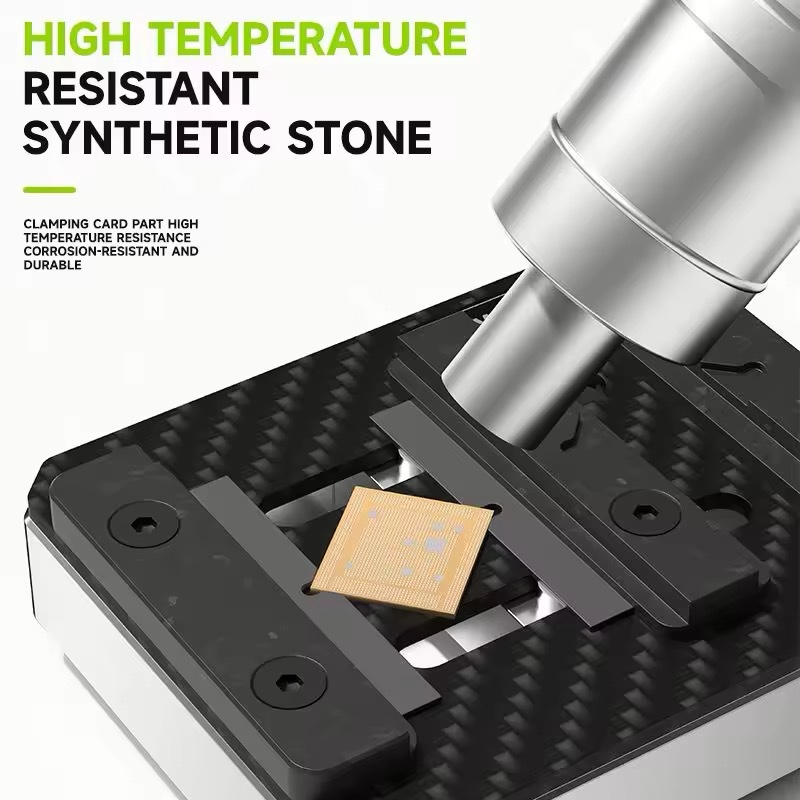

The clamp utilizes high-temperature synthetic stone and carbon fiber. These materials are rated to withstand the intense heat required for motherboard desoldering (often exceeding 350°C–400°C) without warping or releasing toxic fumes. Its corrosion resistance ensures that aggressive flux or cleaning agents (like PCB cleaner or isopropyl alcohol) do not degrade the tool over time.

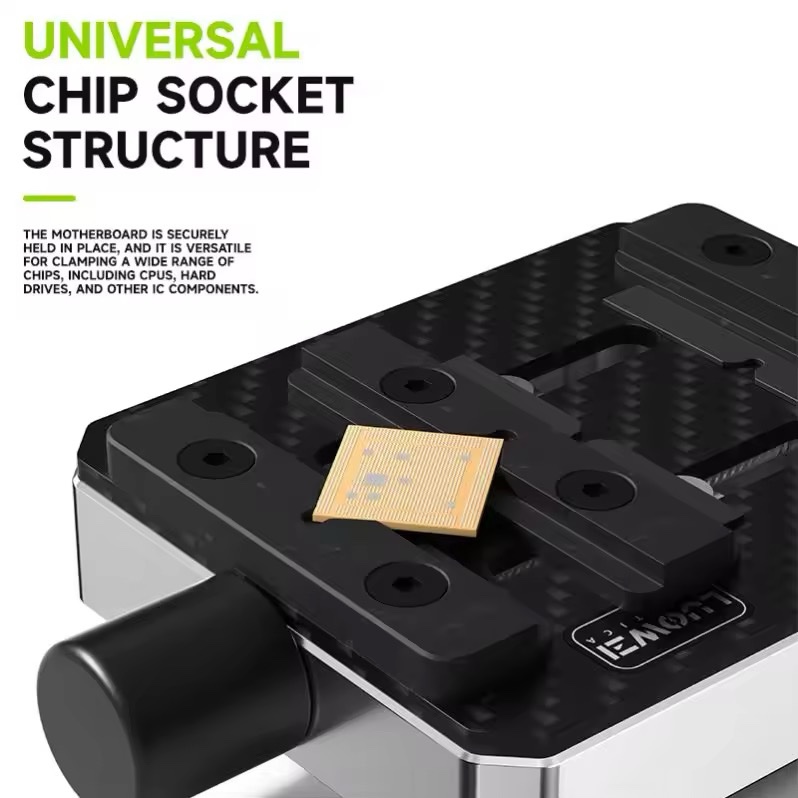

The LW-AP03 features a specialized “universal chip socket” structure. This design allows it to clamp not just the motherboard itself, but also individual ICs, CPUs, and hard drives. This is critical for de-gumming (removing the black resin underfill from chips) and tin planting (reballing).

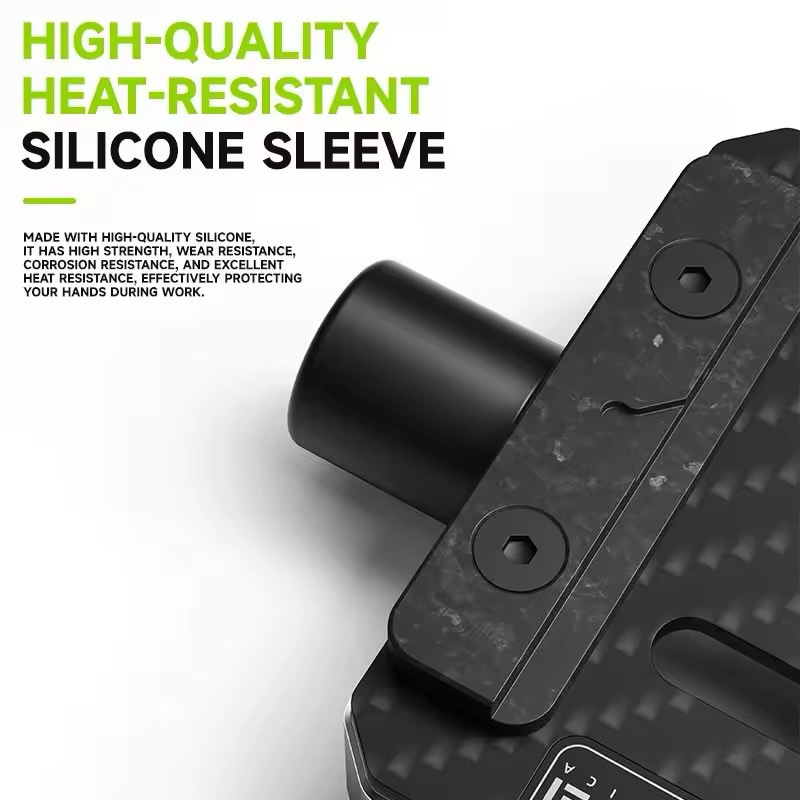

With a compact “mini” footprint, the LW-AP03 is designed to fit comfortably under a microscope. Its low profile ensures that the technician’s hands remain at a natural angle, and the high-quality silicone sleeve on the adjustment knob provides a non-slip grip while protecting fingers from heat.
45° Inclined Clamping: The edges of the clamps are often beveled at 45 degrees. This subtle design choice is vital because it prevents the clamp’s jaws from obstructing your soldering iron or hot air nozzle when working on components near the edge of the board.
Multi-Point Support: The fixture includes specific zones for different shapes. There are notched areas for rectangular motherboards and flat-edge sections for smaller ICs like NAND flash or Power Management ICs (PMICs).
Stability: Despite its light weight (130g), the center of gravity is kept low. The base often features anti-skid pads to ensure the motherboard doesn’t slide across the workbench while you are applying pressure with a scraper or tweezers.
Traditional “green” or “blue” PCB holders are often made of heavy cast iron or cheaper synthetic plastics. The carbon fiber in the LW-AP03 offers:
Lower Thermal Inertia: It doesn’t act as a “heat sink,” meaning you reach soldering temperature faster.
Durability: It is virtually impossible to melt with a standard soldering station.
Aesthetics: The “Geek Future” design language provides a premium, modern look to a professional workstation.
