Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

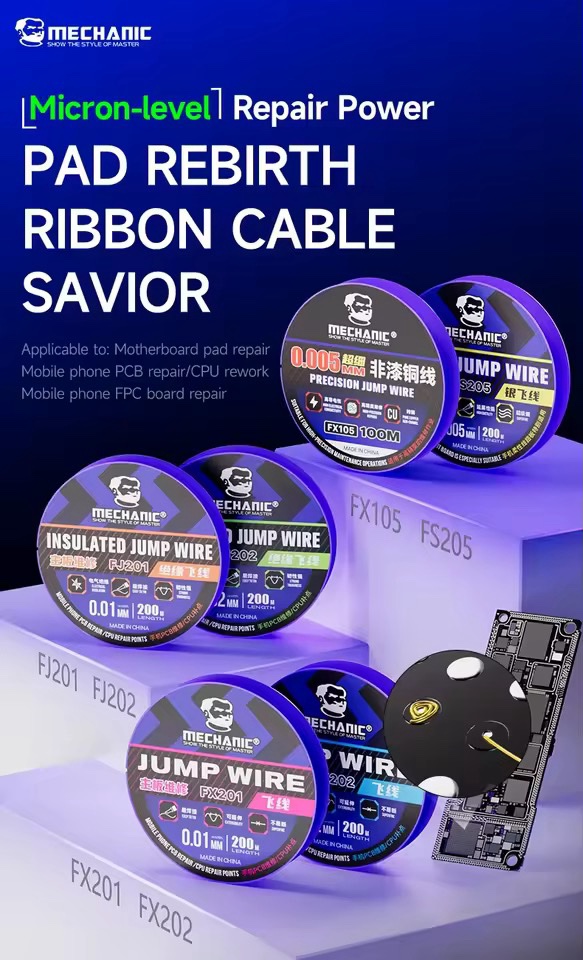

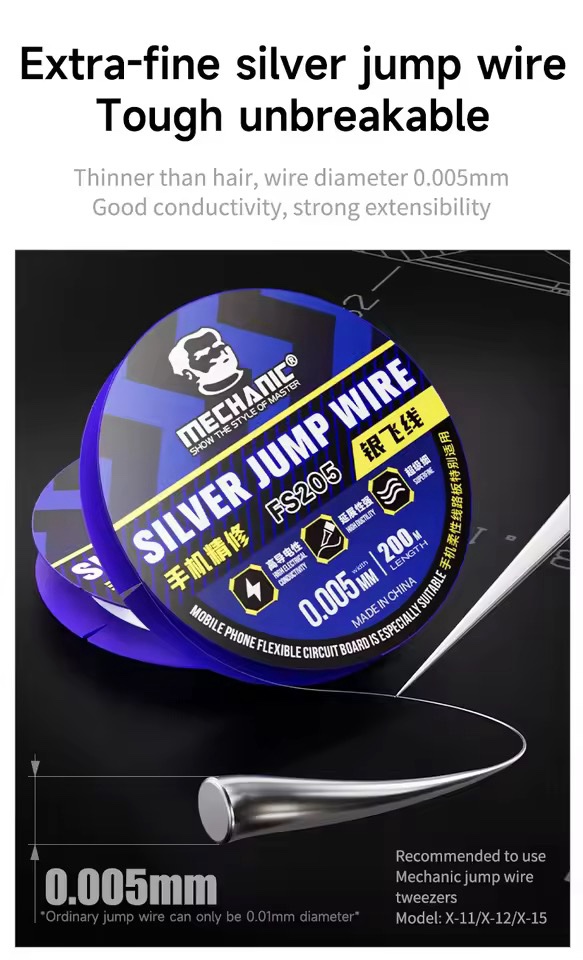

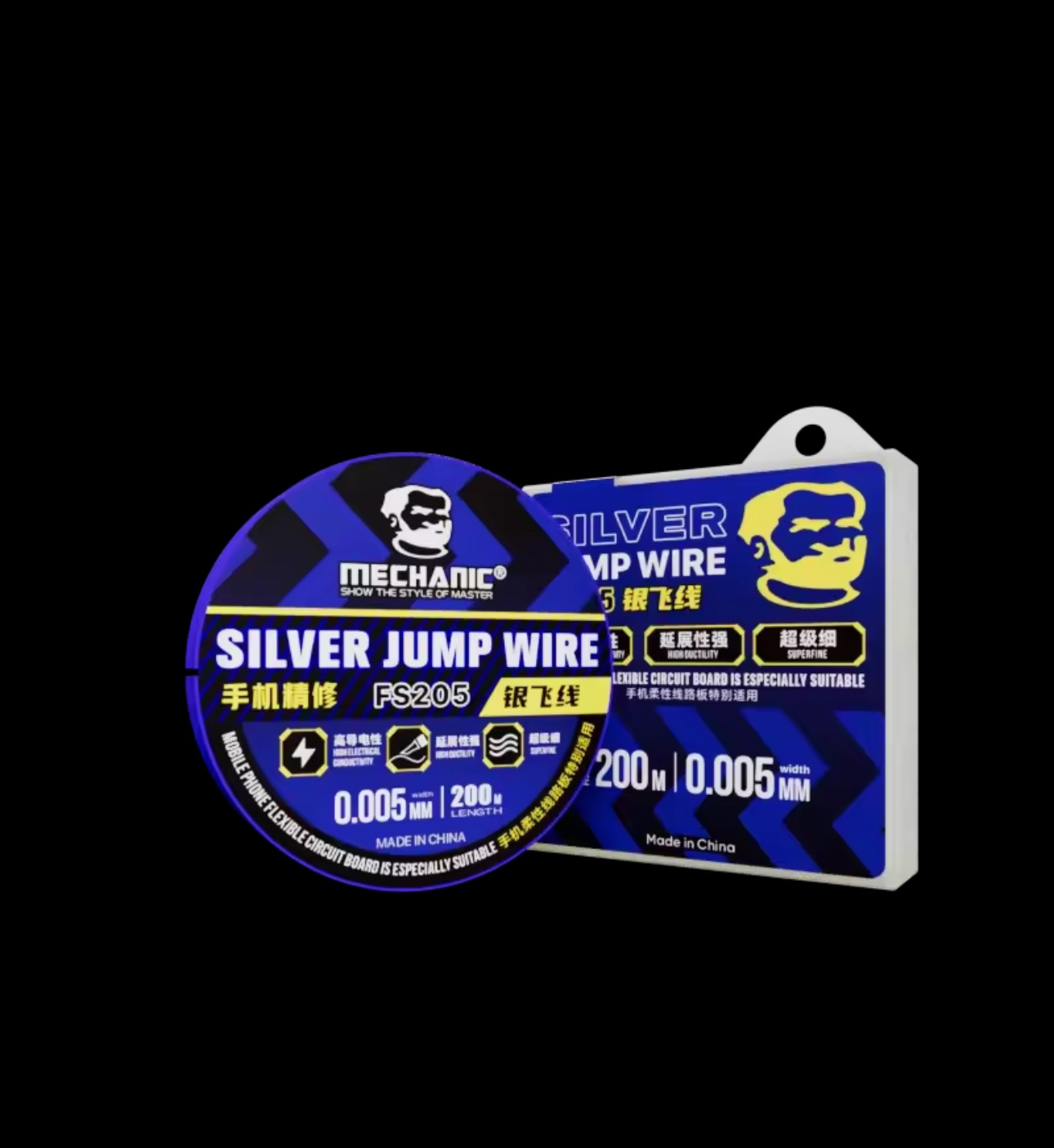

The MECHANIC FX205 0.005mm Extra-fine Silver Jump Wire is meticulously designed to provide unmatched accuracy in repairing motherboard screw holes and broken wire flex cables. Its ultra-thin profile ensures flawless performance in the most intricate electronic repairs.
This silver jump wire is crafted for durability and reliability, making it an indispensable tool for professionals and electronics enthusiasts alike. With superior conductivity and a robust design, it delivers dependable results for long-lasting repairs.
Whether repairing broken connections or addressing challenging flex cables, the MECHANIC FX205 stands out as the ultimate solution. Its versatility ensures compatibility with various electronic devices, providing consistent efficiency across repair projects.
The MECHANIC FX205 is a specialized precision tool designed for micro-soldering and high-end electronics repair. When dealing with modern smartphone motherboards or intricate flex cables, standard jumper wire is often too thick, leading to shorts or structural instability. The FX205 addresses this by offering a diameter of just 0.005mm, making it nearly invisible to the naked eye.
While copper is the industry standard for general electronics, Silver is the most conductive element. In the context of the FX205:
Lower Resistance: At a microscopic 0.005mm diameter, the cross-sectional area of the wire is extremely small. Using silver ensures that even at this scale, electrical resistance remains low enough to maintain signal integrity.

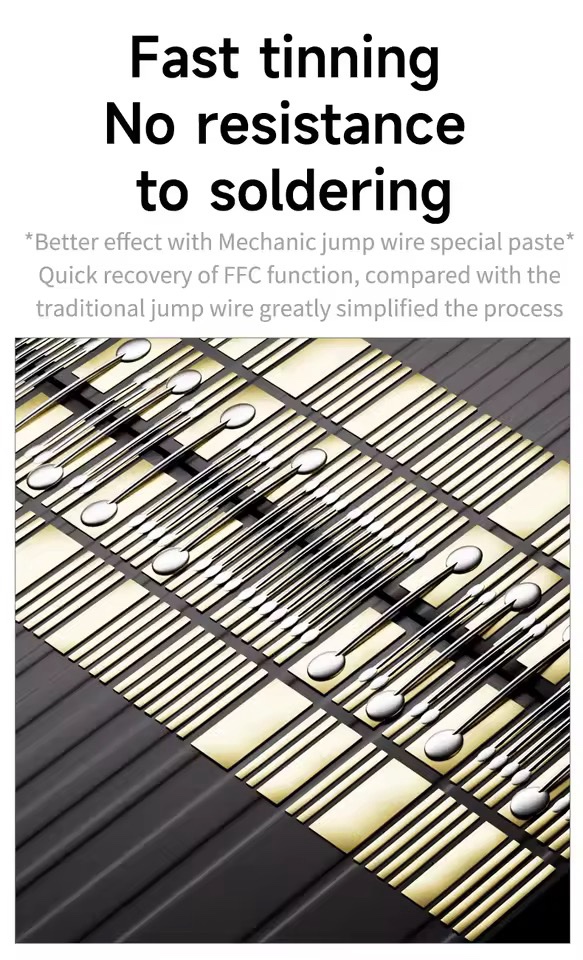

Solderability: Silver bonds exceptionally well with leaded and lead-free solder, reducing the “beading” effect that can occur with poorly coated copper wires.
A common issue in iPhone and high-end Android repair is “long screw damage.” This occurs when a technician accidentally drives a long screw into a short screw hole, crushing the underlying PCB layers and severing the traces.
The FX205 Advantage: Because the traces under screw holes are incredibly thin and packed tightly together, the 0.005mm silver wire allows a technician to bridge these gaps without accidentally touching adjacent traces.
Modern displays and FaceID modules use delicate flex cables that are prone to tearing.
The FX205 Advantage: Its extreme flexibility allows it to follow the natural bend of a cable without putting stress on the solder joint, preventing the repair from failing after the device is reassembled.

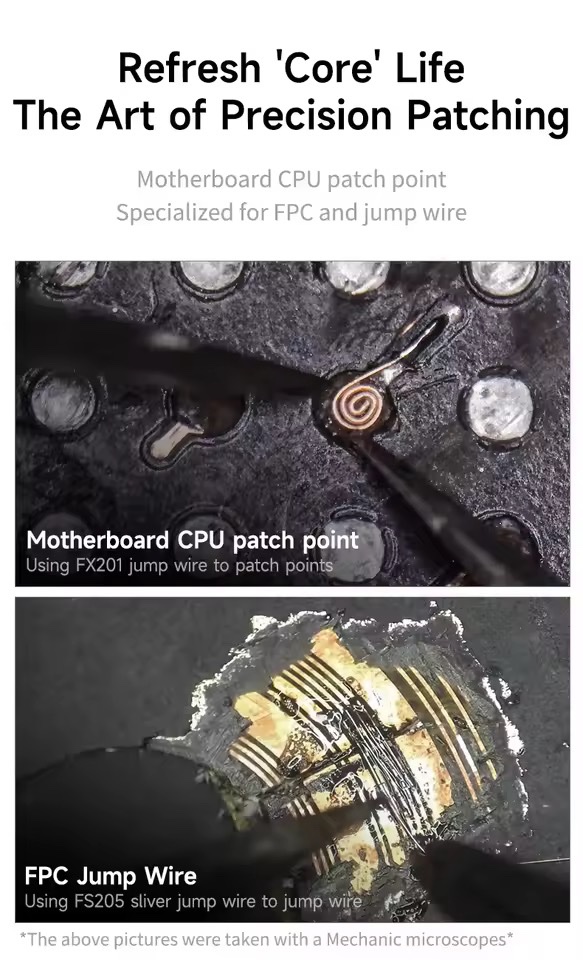

When a pad is “ripped” off a motherboard during chip desoldering (BGA work), the FX205 can be used to recreate the connection from the underlying “via” to the chip’s ball.
Microscope Required: You cannot use this wire without a trinocular or binocular microscope. It is thinner than a human hair (which is roughly 0.07mm).
Flux Selection: Use a high-quality, non-conductive “no-clean” flux to help the wire seat into the solder point.
UV Curable Solder Mask: Once the jump is made, it is imperative to secure the 0.005mm wire with UV green oil (solder mask) to prevent it from moving or oxidizing.
Tooling: Use high-precision tweezers (such as Titanium curved tweezers) to handle the wire, as standard steel tweezers may be too “blunt” to grab it effectively.
Note: Due to the non-insulated nature of the FX205, you must ensure that your jump paths do not cross each other unless they are separated by a layer of cured UV mask.
