₹200 Original price was: ₹200.₹100Current price is: ₹100.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

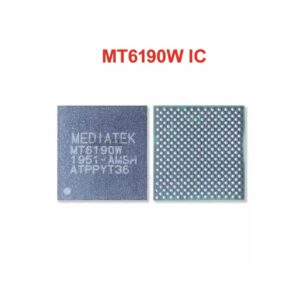

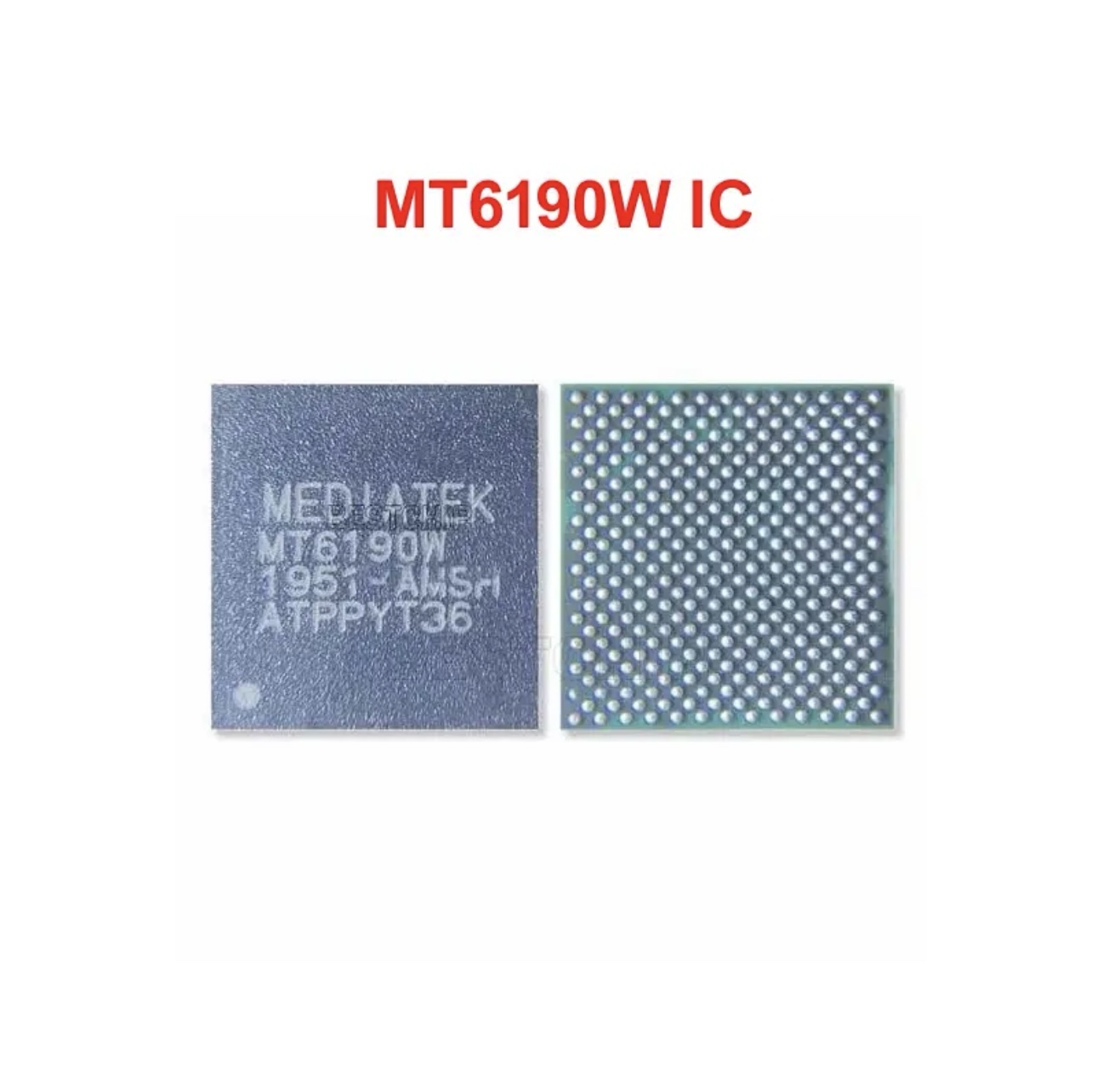

The MT6190W NEW POWER IC represents a significant advancement in power management technology, catering specifically to modern electronic devices that demand efficient energy solutions. Designed with cutting-edge features, the MT6190W stands out in the competitive landscape of power ICs due to its unique specifications and high-performance capabilities. One of the key aspects of this IC is its capability to manage power with minimal energy loss, thus enhancing the overall efficiency of electronic devices. MT6190W NEW POWER IC
Overall, the MT6190W serves as a pivotal component in numerous applications, contributing to lower power consumption, better thermal management, and increased reliability across diverse sectors. Its real-world performance confirms that integrating the MT6190W into various systems not only meets but exceeds industry expectations, making it a noteworthy advancement in power IC technology.
The MT6190W is targeted towards a diverse range of applications, including mobile devices, tablets, and other consumer electronics that require reliable power management. Its architecture incorporates advanced technologies that ensure effective voltage regulation, which is crucial for preserving battery life and optimizing performance in various applications. The integration of such technologies allows for better energy consumption, making the MT6190W an essential component in the design of next-generation devices. MT6190W NEW POWER IC
In addition to its energy efficiency, the MT6190W boasts a compact form factor that enables designers to implement it in devices with space constraints without compromising on performance. The power IC also includes features such as thermal protection and fault detection, which further enhances its reliability in demanding environments. Furthermore, it complies with industry standards, ensuring seamless integration into existing designs and contributing to the overall market adoption of sustainable energy practices. MT6190W NEW POWER IC
As the electronics industry continues to evolve, the focus on power management solutions becomes more pronounced. The MT6190W aligns perfectly with these trends, providing robust support for energy-saving initiatives while meeting the performance needs of contemporary consumers. Future developments in the device will likely further push the boundaries of efficiency and effectiveness in power management, affirming the MT6190W’s role as a cornerstone in modern electronic design. MT6190W NEW POWER IC
The MT6190W power IC presents a multitude of applications across various industries, establishing itself as a reliable solution in consumer electronics, automotive systems, and industrial devices. Its versatility and advanced design not only enhance performance but also improve overall operational efficiency. In consumer electronics, for example, the MT6190W helps to minimize power consumption while maximizing battery life in devices such as smartphones and tablets. The integration of this power IC allows for sleeker designs with longer-lasting performance and fewer heat dissipation challenges.
In the automotive sector, the MT6190W significantly contributes to the driving experience by enabling smarter power management. This power integrated circuit optimizes energy usage in electric vehicles (EVs), enhancing their range and reducing charging times. The improved thermal management provided by the MT6190W is crucial in automotive applications, where high efficiency under varying conditions is essential. Moreover, it elevates the reliability of automotive electronics, ensuring safety and functionality in critical systems such as braking and navigation.
Industrial devices also benefit from the MT6190W, which supports automation technologies through enhanced performance and reduced energy costs. The efficiency of this power IC is particularly valuable in factory setups where power consumption directly affects operational expenditures. Case studies showcasing the MT6190W demonstrate its efficacy in improving design efficiency, with numerous companies reporting significant cost savings and optimized product lifecycles after implementation.
