₹28,000 Original price was: ₹28,000.₹23,999Current price is: ₹23,999.
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
Shipping India
Guaranteed Satisfaction
Safe Checkout

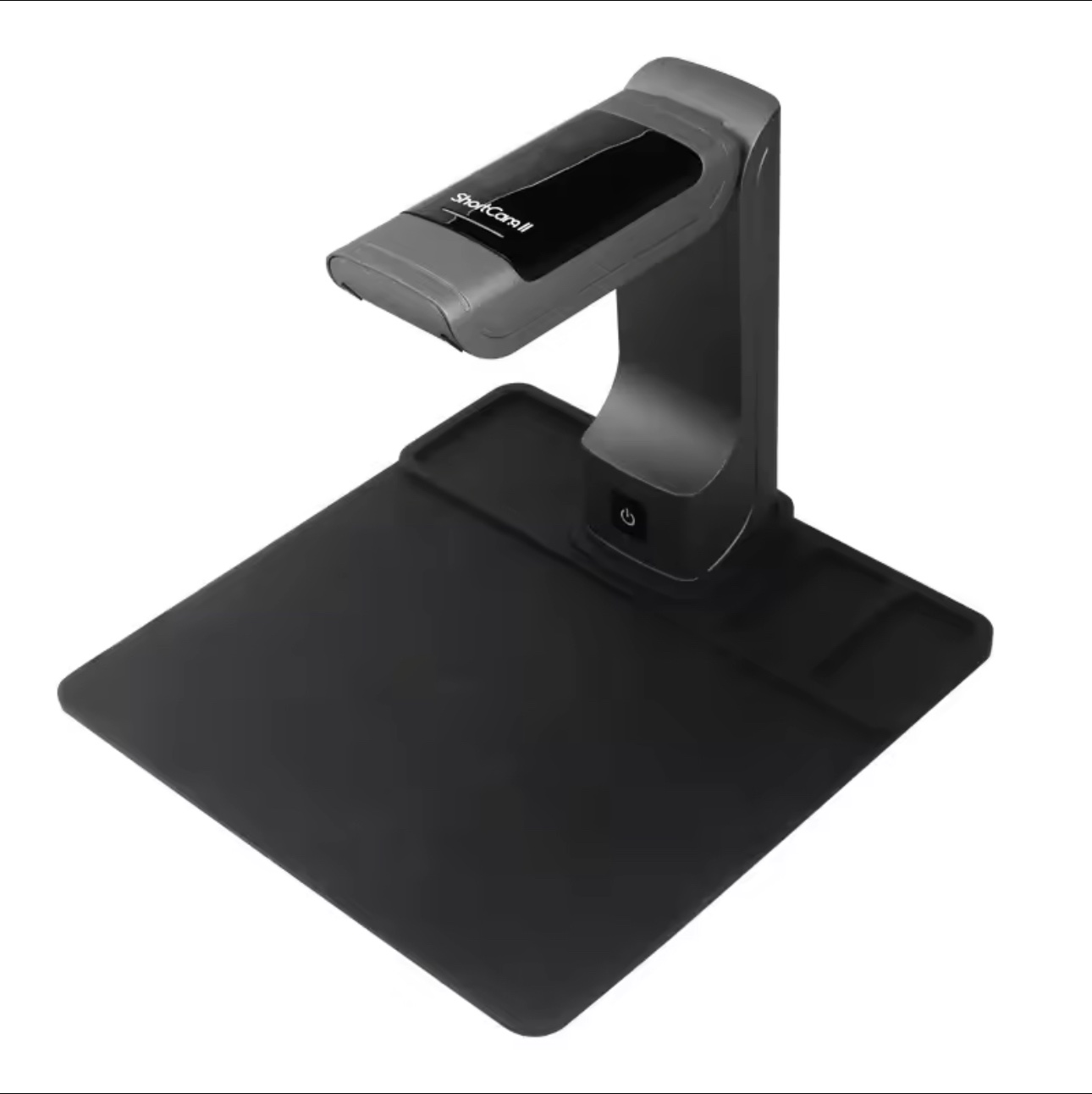

The PCB Shortcam ll Camera is an innovative device specifically designed for mobile repair technicians aiming to enhance their diagnostic capabilities. This high-resolution camera focuses on inspecting printed circuit boards (PCBs), a crucial component in mobile devices. The PCB Shortcam ll Cameraallows repair professionals to identify various issues, including cracked traces, faulty solder joints, and problematic components, with remarkable precision. Its advanced imaging capabilities reveal minute details that may be invisible to the naked eye, thus enabling technicians to address problems more effectively.

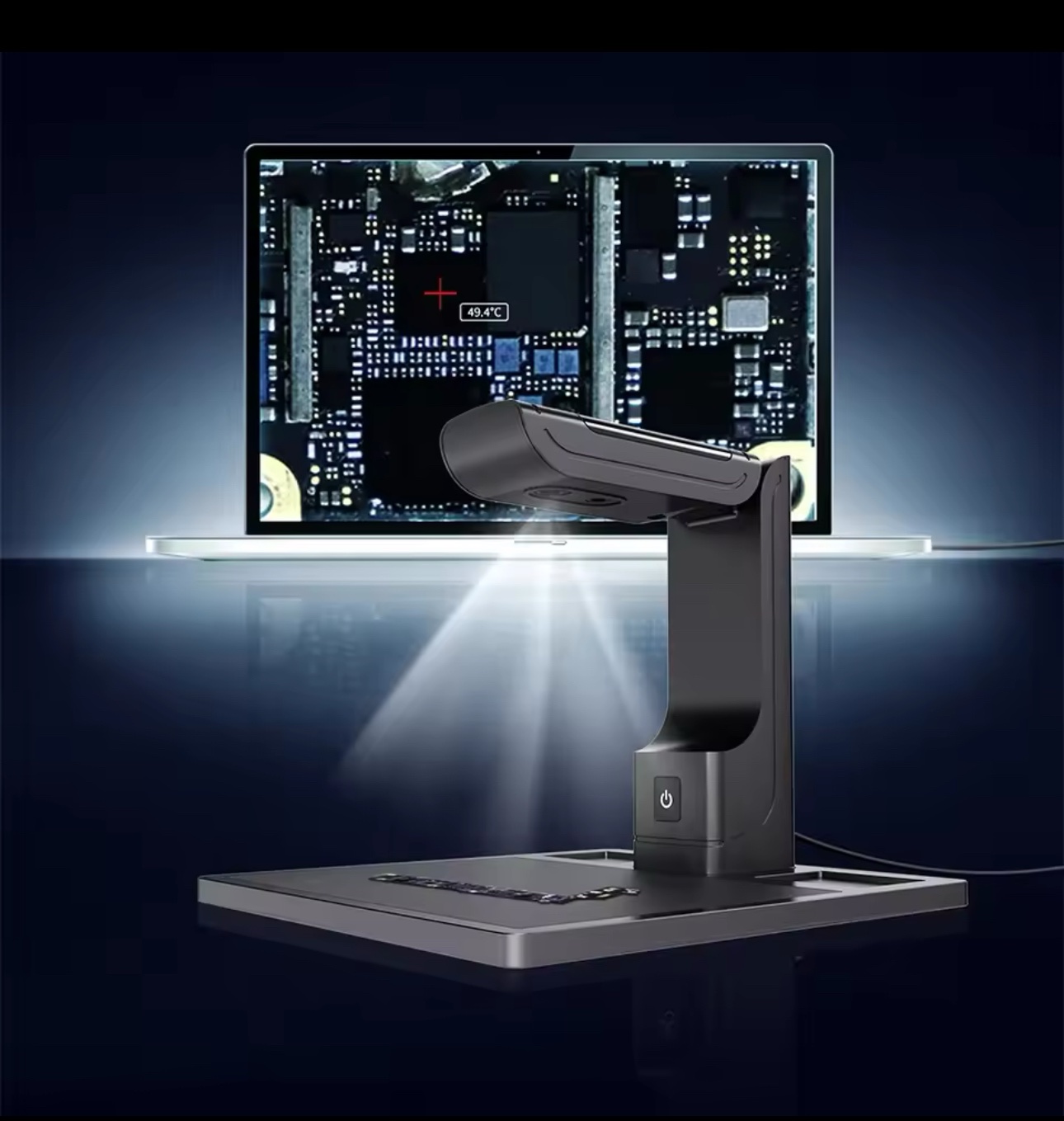

One significant advantage of using the PCB Shortcam ll Camera is its ability to provide real-time imagery during inspections. Traditional methods often rely on visual inspection under magnification or the use of optical microscopes, which can be time-consuming and labor-intensive. In contrast, the Shortcam simplifies this process by allowing technicians to capture high-quality images and videos instantly, streamlining their workflow and improving efficiency. This capability not only saves time but also enhances the accuracy of repairs, as technicians can diagnose issues early in the repair process.
Furthermore, user experience testimonials from mobile repair experts highlight the effectiveness of the PCB Shortcam in various repair scenarios. One technician noted that incorporating the device into their workflow has significantly reduced the frequency of repeat repairs due to overlooked issues. The ability to document and share inspection results fosters a collaborative approach among repair professionals, as they can easily communicate findings to peers or customers. This advancement in repair technology is revolutionizing the way mobile devices are inspected and repaired, promoting a more thorough and effective service.
Overall, the integration of PCB Shortcam technology in mobile repair is an essential development that enhances the quality of service and educational opportunities for technicians. As mobile technology continues to evolve, the PCB Shortcam stands out as a powerful tool that empowers professionals to meet the challenges of modern mobile repairs with confidence and expertise.

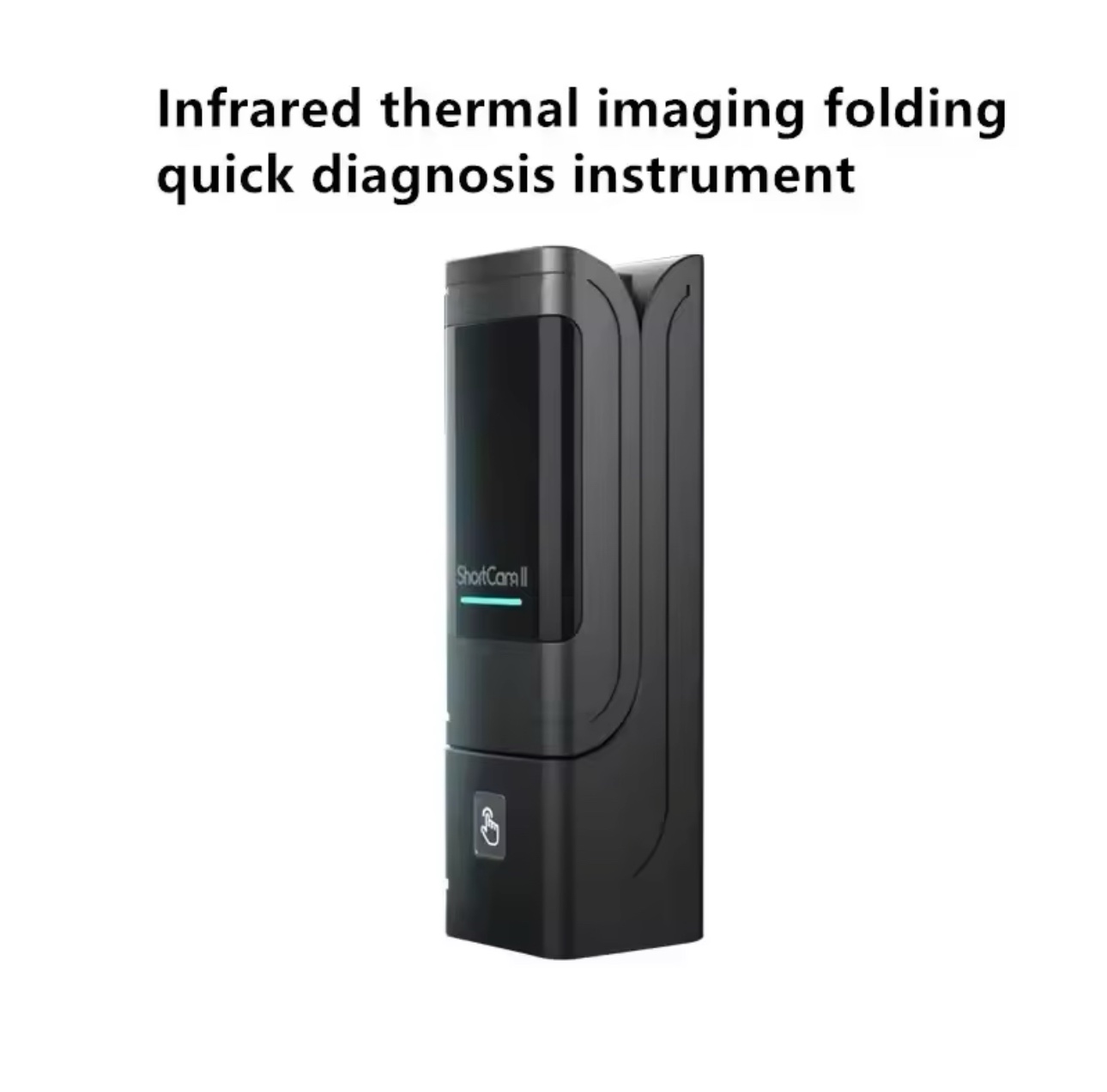

The advancement of technology has significantly impacted various industries, with mobile repair being no exception. One of the standout innovations in this field is the thermal imaging camera, particularly the Shortcam 2 model. These cameras play a critical role in diagnosing issues within mobile devices by detecting heat levels that indicate potential problems. Essentially, thermal imaging employs the principle of infrared radiation to create visual representations of temperature variations across components.

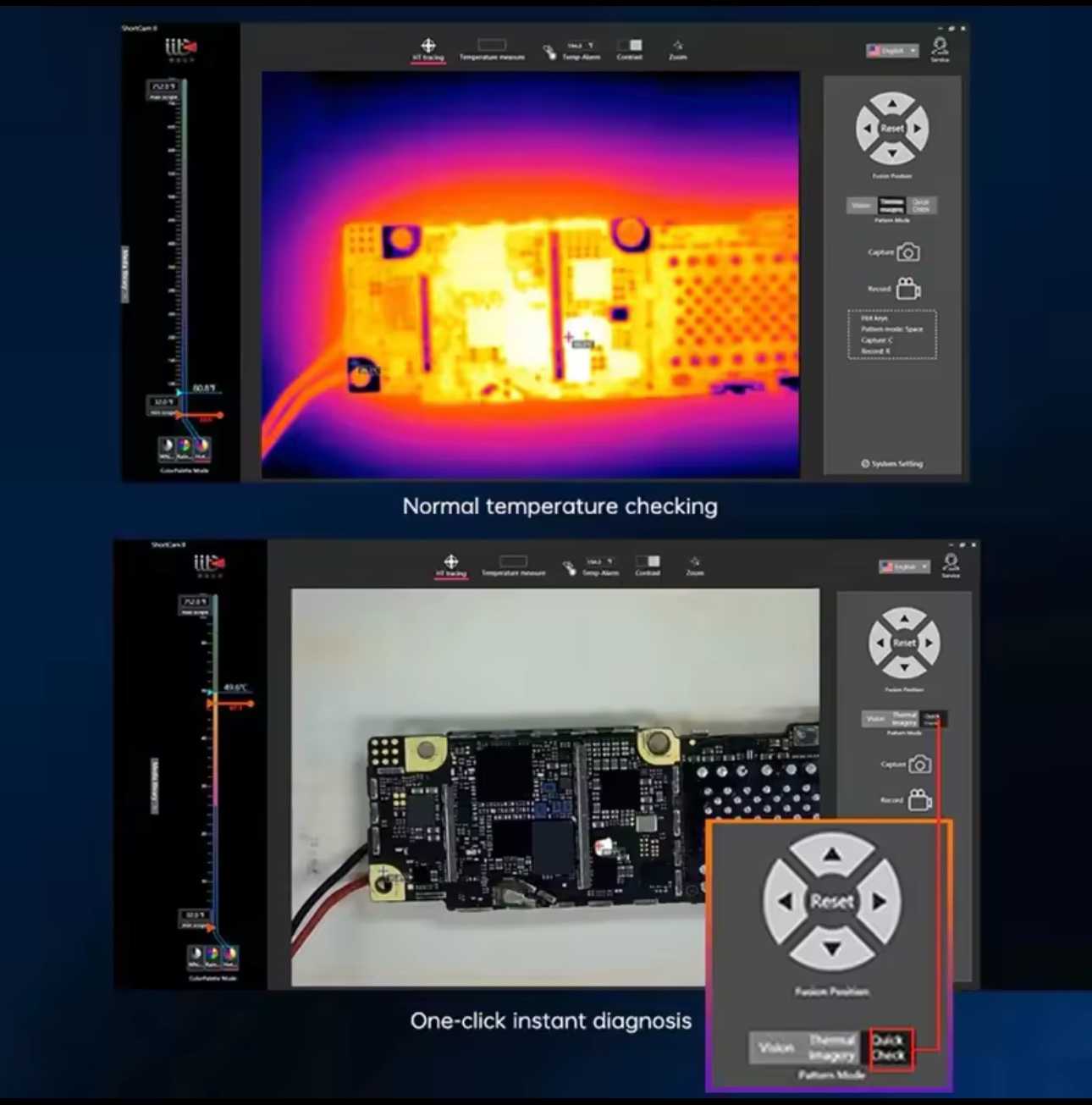

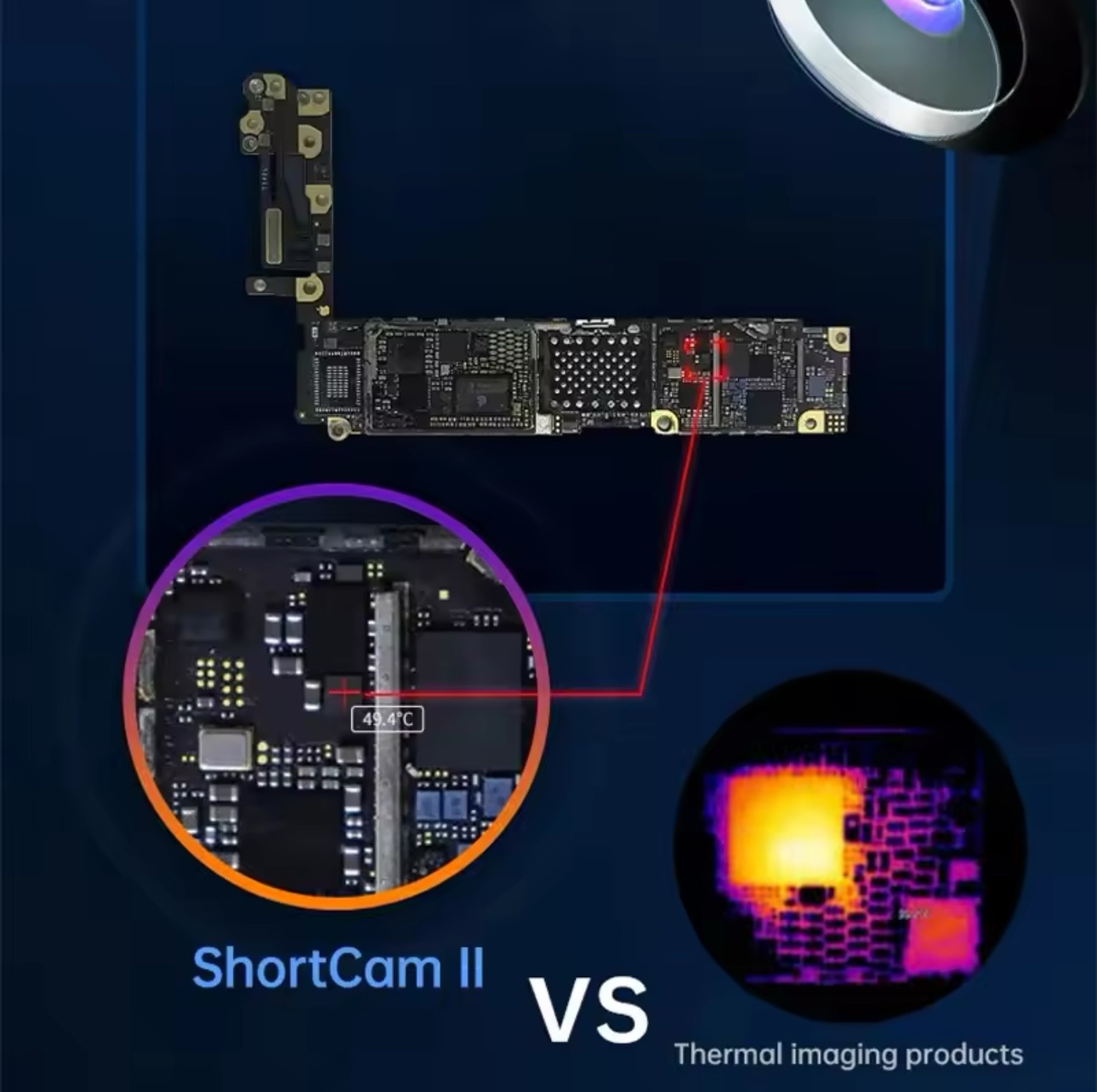

When applied to mobile devices, overheating and overcurrent situations are common issues that can lead to malfunction or complete failure. For instance, a thermal imaging camera can reveal hot spots on a circuit board that may signify damaged components, short circuits, or excessive current draw. By pinpointing these problematic areas quickly, technicians can address the underlying issues more efficiently. This capability drastically reduces diagnostic time, allowing for quicker repairs and enhanced accuracy. PCB Shortcam ll Camera
Several case studies illustrate the effectiveness of thermal imaging in practical repair scenarios. In one instance, a technician utilized a thermal camera to locate a malfunctioning charging port in a smartphone. Upon detecting an unusually high temperature in the vicinity of the port, it became evident that a faulty component was drawing excessive current. By replacing this component, the technician was able to restore normal functionality to the device, resulting in satisfied customers and improved repair turnaround times. PCB Shortcam ll Camera
As the mobile repair industry evolves, integrating thermal imaging solutions into the toolkit of modern technicians becomes increasingly essential. The ability to visualize heat distribution not only streamlines the diagnostic process but also significantly enhances the accuracy of repairs. The impact of thermal imaging cameras extends beyond efficiency; they bring about a transformative change in how technicians approach mobile device troubleshooting. PCB Shortcam ll Camera
