Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

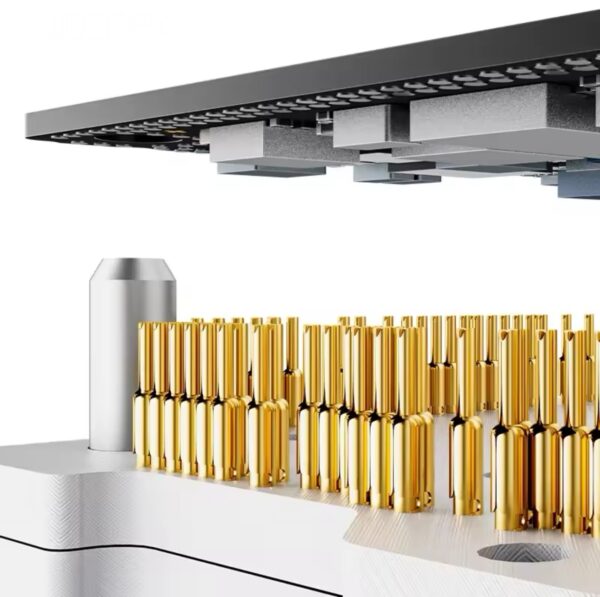

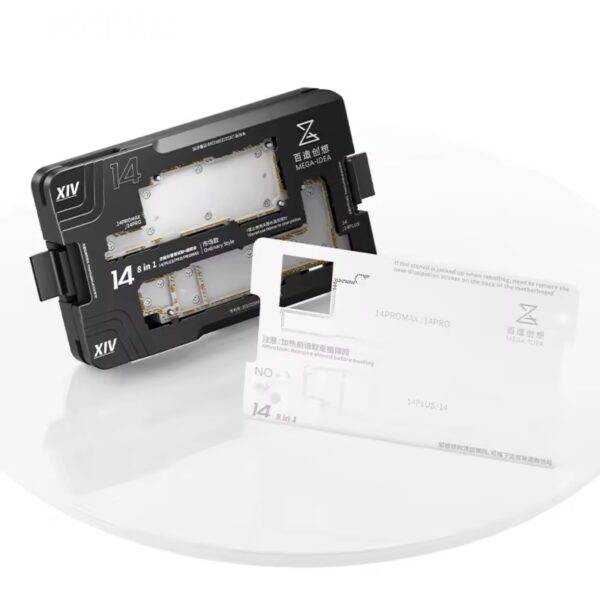

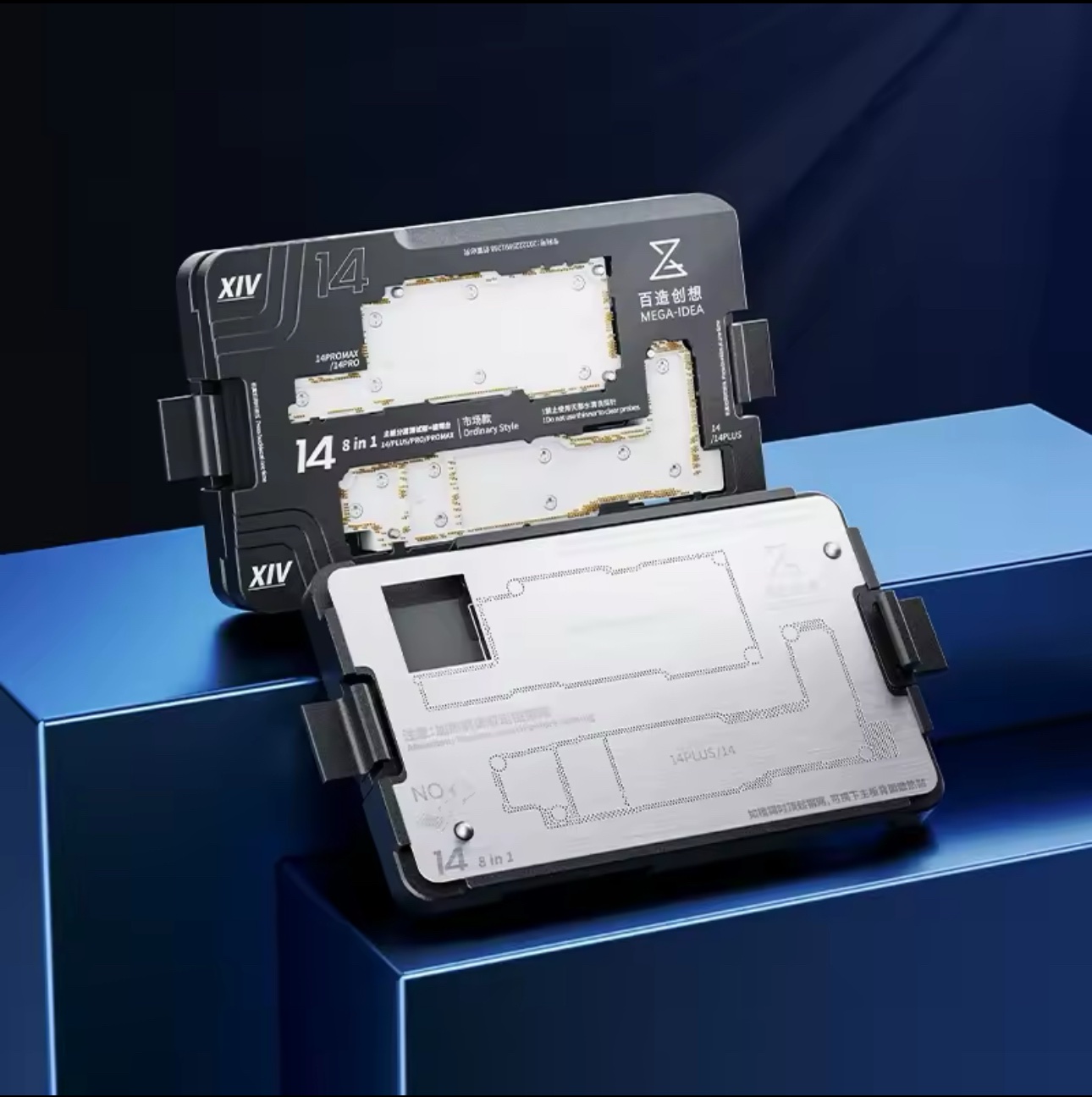

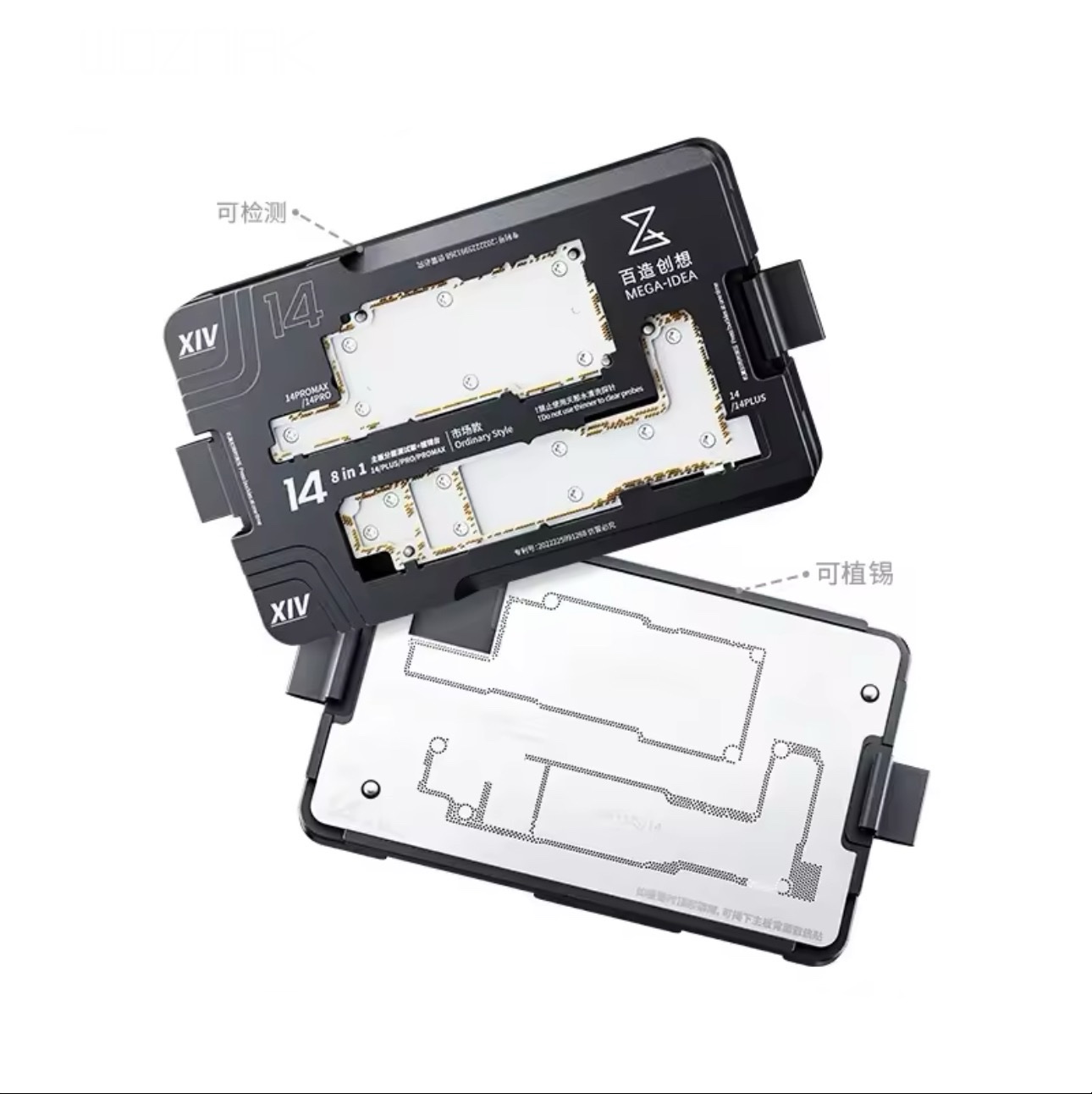

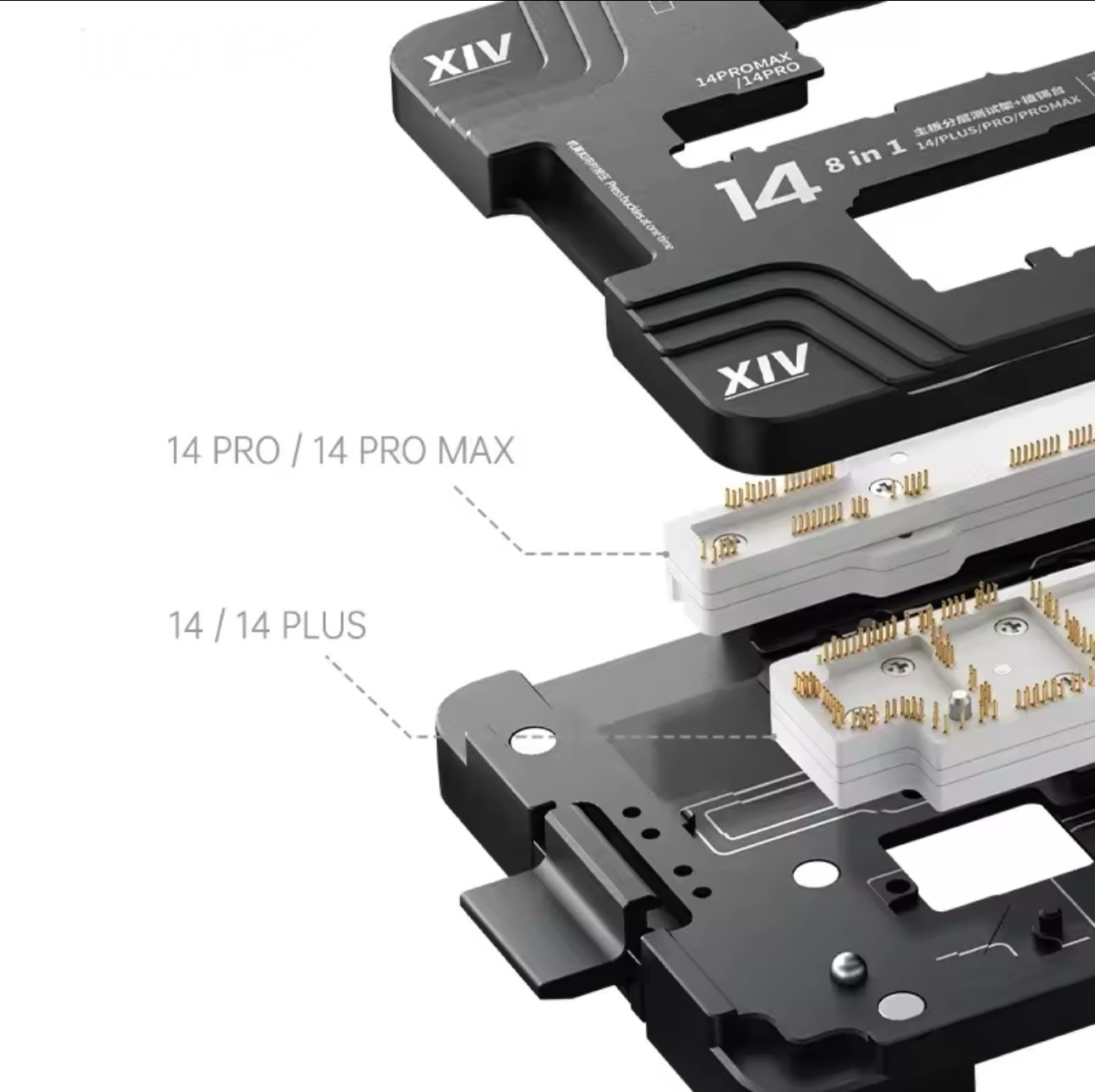

The Qianli Mega-IEDA iSocket Testing Mainboard is an innovative tool designed specifically for the iPhone 14 series, bringing a significant advancement in mobile device diagnostics and repairs. This testing mainboard has been meticulously engineered with a layered frame/support design that offers a robust and durable platform for technicians to work on iPhone units. One of its most prominent features is its compatibility with the entire iPhone 14 lineup, which includes the standard model, Pro, and Pro Max variations. This versatility allows for seamless testing across different models, greatly benefitting repair shops and professionals in the mobile repair sector.
Maintenance of the Qianli Mega-IEDA iSocket Testing Mainboard is equally important for longevity. Regularly inspect the connection points and clean them to prevent oxidation. Additionally, storing the mainboard in an anti-static bag when not in use will help preserve its functionality. Employ best practices when using the mainboard in your repair processes, and with time, you will find this device to be an invaluable asset in accurately diagnosing and resolving iPhone 14 issues.
Among the many advantages of the Qianli Mega-IEDA iSocket Testing Mainboard is its ability to enhance troubleshooting processes. Technicians can conduct a variety of tests to diagnose issues more effectively, leading to quicker assessments and repairs. This is primarily due to the mainboard’s ability to provide accurate readings of device functionality, such as battery performance and connection integrity. Such features streamline the repair workflow, which is essential for technicians aiming to increase efficiency within their operations.
The construction quality of the Qianli Mega-IEDA iSocket is noteworthy. Built using premium materials, it ensures reliability during frequent use in professional environments. Additionally, the ergonomic design makes it user-friendly, allowing technicians to focus on repairs without undue strain. The mainboard is not only optimized for usability but also integrates the latest advancements in testing technology, enabling practitioners to stay ahead in an ever-evolving industry. As a result, the Qianli Mega-IEDA iSocket Testing Mainboard emerges as a vital tool that enhances the overall efficacy of iPhone repairs, making it an essential investment for any professional technician.
Using the Qianli Mega-IEDA iSocket Testing Mainboard is crucial for professionals who wish to troubleshoot issues with iPhone 14 motherboards effectively. To start, ensure that your testing environment is free from static and that you are equipped with essential tools, such as a pair of tweezers. Begin the setup by securely connecting the mainboard to a power source, which is typically done via a DC power adapter that suits the specifications of the mainboard.
Next, to connect the motherboard of the iPhone 14, align the connection pins of the mainboard with the corresponding sockets on the iPhone motherboard. Ensure that there is a snug fit to avoid any communication failures. Once connected, power on the setup and observe the indicators on the mainboard. The LED lights will provide feedback on the operational status: a solid green light generally indicates readiness, while a red light may suggest an error or misconfiguration.
When performing tests, the mainboard offers various diagnostic options. Familiarize yourself with the available testing modes, such as the digital communication test or current consumption analysis. Follow the on-screen instructions carefully for each test, as these will guide you in interpreting the outcomes. In case you encounter problems, refer to the mainboard’s manual for troubleshooting common issues, such as error codes or indicators suggesting a hardware failure.
