Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

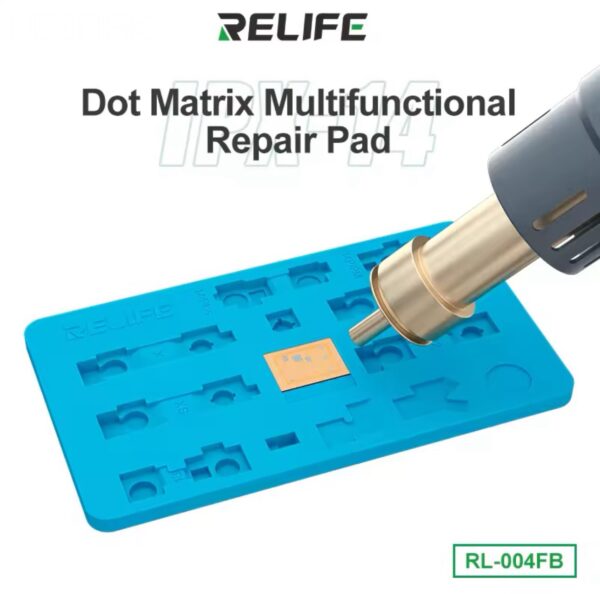

The RELIFE RL-004FB IPX-14 Dot Matrix Multifunctional Repair Pad is a high-quality, anti-static work mat designed specifically for mobile phone repair, motherboard rework, and precision electronics assembly. Built for professional technicians and repair enthusiasts, this multifunctional repair pad offers an organized, heat-resistant, and anti-slip surface, ensuring safe and efficient repair operations.
With a special dot matrix design, this premium repair pad enhances tool stability, small part placement, and workflow organization. Whether you’re working on iPhones, Android devices, tablets, laptops, or other delicate electronic components, this repair mat provides the ideal workspace for precision soldering, microsoldering, and BGA chip replacement.

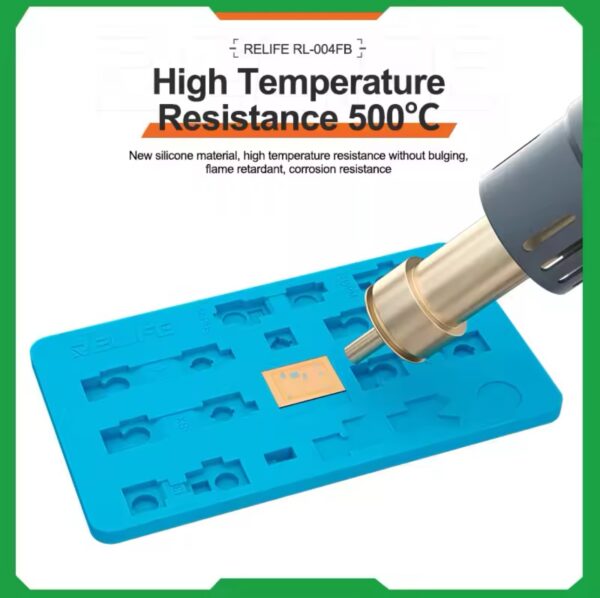

The RELIFE RL-004FB IPX-14 is built to withstand high temperatures up to 500°C, making it an essential tool for professionals using hot air rework stations, heat guns, and soldering irons.
Made from high-temperature resistant silicone, capable of withstanding heat exposure from soldering irons and hot air rework stations.
Protects your work surface from burn marks, heat damage, and static buildup.
Designed with anti-static properties to prevent electrostatic discharge (ESD) from damaging delicate components.
Ensures safe handling of IC chips, PCBs, and motherboard circuits.
The dot matrix texture provides enhanced grip, keeping tools and components in place.
Prevents small screws, IC chips, and tools from sliding or getting lost during repair work.

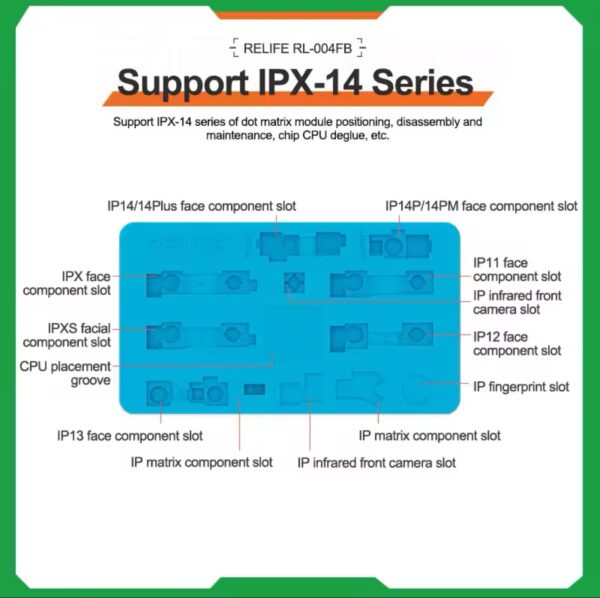

Specially designed for iPhone Dot Matrix repairs (IPX-14), BGA rework, and general electronics maintenance.
Supports various repair tasks such as screen replacement, soldering, and PCB debugging.
Constructed from high-quality silicone that is flexible, durable, and resistant to wear and tear.
The non-slip base ensures firm placement on workbenches and repair stations.
Features dedicated slots and sections for tools, screws, IC chips, and small components.
Improves efficiency and reduces the risk of misplaced parts during repair processes.
Resistant to dust, flux residue, and solder paste, making it easy to clean after extensive repair sessions.

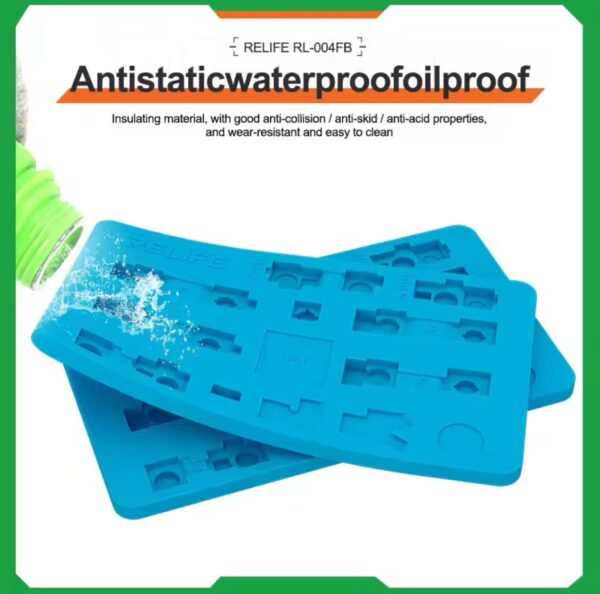

Water-resistant and chemical-resistant surface ensures long-lasting usability.
✅ Heat-Resistant Up to 500°C – Ideal for use with soldering irons, heat guns, and hot air stations.
✅ Anti-Static & ESD-Safe – Prevents electrostatic damage to delicate electronic components.
✅ Dot Matrix Non-Slip Surface – Provides enhanced stability for tools and small parts.
✅ Multi-Functional Design – Supports iPhone Dot Matrix repairs (IPX-14), soldering, and BGA rework.
✅ Durable, Flexible & Long-Lasting – High-quality silicone material ensures extended use.
✅ Organized Work Sections – Keeps screws, tools, and small components in place.
✔ Mobile Phone Repair – Ideal for screen replacements, motherboard soldering, and dot matrix IC rework.✔ BGA Rework & IC Chip Repair – Perfect for precision soldering and microsoldering tasks.✔ PCB & Logic Board Debugging – Provides a stable workspace for PCB circuit board troubleshooting.✔ Laptop, Tablet & Electronics Repair – Suitable for a variety of small electronic devices.✔ Soldering & Hot Air Rework – Heat-resistant design protects work surfaces from heat damage.✔ Professional Repair Stations & Workshops – Essential for technicians, engineers, and electronics enthusiasts.
Place the repair pad on a flat, clean surface.
Ensure proper lighting and use a microscope for high-precision work if necessary.
Utilize the dot matrix texture and dedicated sections to arrange screws, IC chips, and tools.
Keep small parts within easy reach to improve efficiency.
The mat’s 500°C heat resistance makes it safe for high-temperature repair work.
Position your motherboard, logic board, or PCB securely before applying heat.
Use an ESD wrist strap in combination with the anti-static mat for maximum protection of sensitive components.
Wipe off dust, flux residue, and solder paste regularly.

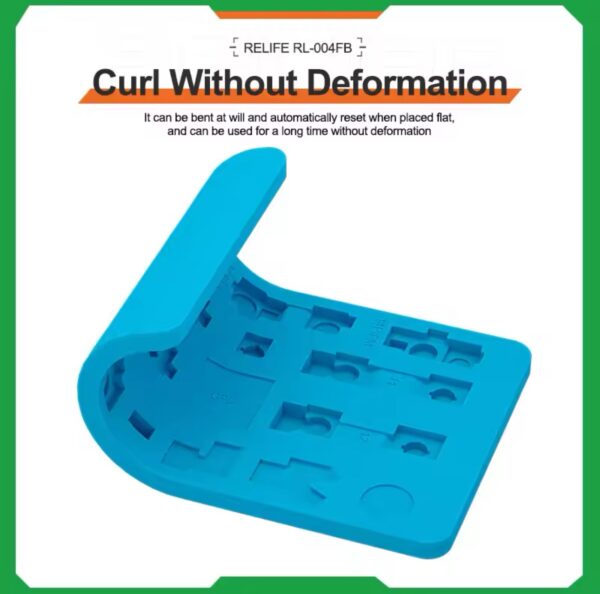

Store the mat flat or rolled up to avoid deformation.
Brand: RELIFE
Model: RL-004FB IPX-14
Material: High-Quality Silicone
Heat Resistance: Up to 500°C
Surface Type: Dot Matrix Non-Slip Surface
Anti-Static (ESD-Safe): Yes
Color: Standard RELIFE Color
Usage: Mobile phone repair, BGA rework, IC chip replacement, precision soldering
The RELIFE RL-004FB IPX-14 Dot Matrix Multifunctional Repair Pad is an indispensable tool for professional repair technicians and DIY enthusiasts involved in mobile phone repair, motherboard rework, and precision soldering tasks.
With high heat resistance (500°C), anti-static properties, and a unique dot matrix non-slip surface, this repair pad ensures maximum safety, efficiency, and precision during delicate repair processes.
If you’re looking for a durable, high-quality work mat for electronics repair, PCB debugging, and microsoldering, the RELIFE RL-004FB IPX-14 is the ultimate choice.
Upgrade your repair workstation today with the RELIFE RL-004FB and experience professional-level organization, safety, and heat resistance!
