Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

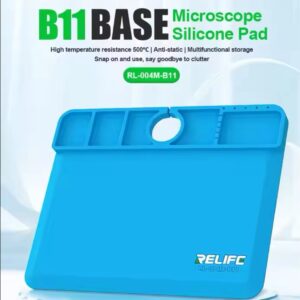

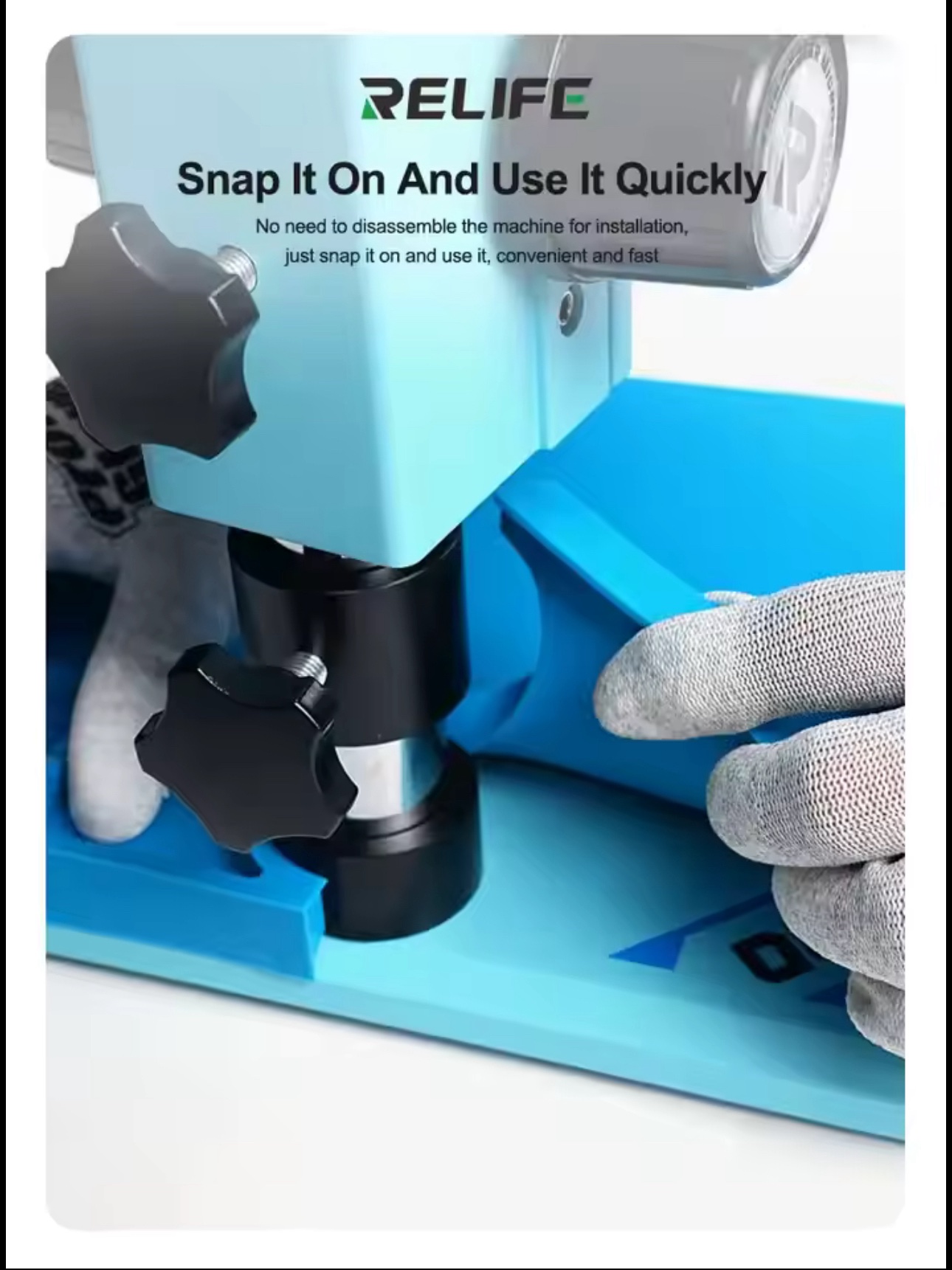

The RELIFE RL-004M-B11 Black Color is a high-performance workstation accessory designed for professional mobile phone motherboard repair. This heat-resistant, anti-static silicone pad provides a safe, organized, and durable surface for working with soldering stations, microscopes, and precision repair tools. RELIFE RL-004M-B11 Black Color
With a high-temperature resistance of up to 500℃, it effectively withstands the heat from hot air guns, soldering irons, and rework stations, making it an essential tool for technicians repairing smartphones, tablets, laptops, and other electronics. The anti-static design prevents electrostatic damage to delicate motherboard components, ensuring the highest level of safety during repairs. RELIFE RL-004M-B11 Black Color
If you’re looking for a reliable, heat-resistant, and ESD-safe repair mat, the RELIFE RL-004M-B11 is a must-have addition to your repair workspace. RELIFE RL-004M-B11 Black Color
Designed to withstand extreme heat, making it ideal for soldering, hot air rework, and BGA chip removal.
Protects workbenches from burn marks caused by soldering irons, heat guns, and rework stations.
Ensures safety and durability for long-term use in professional repair environments.
Prevents electrostatic discharge (ESD), which can damage sensitive motherboard components. RELIFE RL-004M-B11 Black Color
Essential for handling ICs, logic boards, and small electronic parts without the risk of electrostatic damage.
Provides a safe and secure environment for working with iPhone, Samsung, Huawei, and Xiaomi motherboards. RELIFE RL-004M-B11 Black Color
The dark-colored surface enhances visibility under a microscope, improving clarity for detailed repairs.
Reduces glare and provides better contrast when inspecting tiny solder joints and ICs.
Helps technicians achieve greater precision when performing micro-soldering and circuit board analysis.
Made from durable, flexible, and non-toxic silicone, ensuring long-lasting performance.
Resistant to chemical corrosion, solder flux, and adhesives, making cleanup easy.
Maintains its shape and effectiveness even after repeated exposure to heat and soldering residues.
The non-slip base keeps the mat securely in place, preventing unwanted movement during repair work.
Provides a stable platform for placing microscopes, PCBs, and repair tools.
Helps keep small parts in place, reducing the risk of losing screws, chips, or tiny components.
Features a large working area, accommodating multiple tools and components.
Includes dedicated storage sections for organizing screws, ICs, and repair accessories.
Ideal for repair professionals handling complex motherboard repairs requiring multiple tools and precision handling.
This mat is specifically built for phone motherboard repair, microsoldering, and rework tasks. It enhances productivity by providing a safe, organized, and heat-resistant surface for technicians.
The black base enhances microscope clarity, making it easier to inspect and repair small circuits.

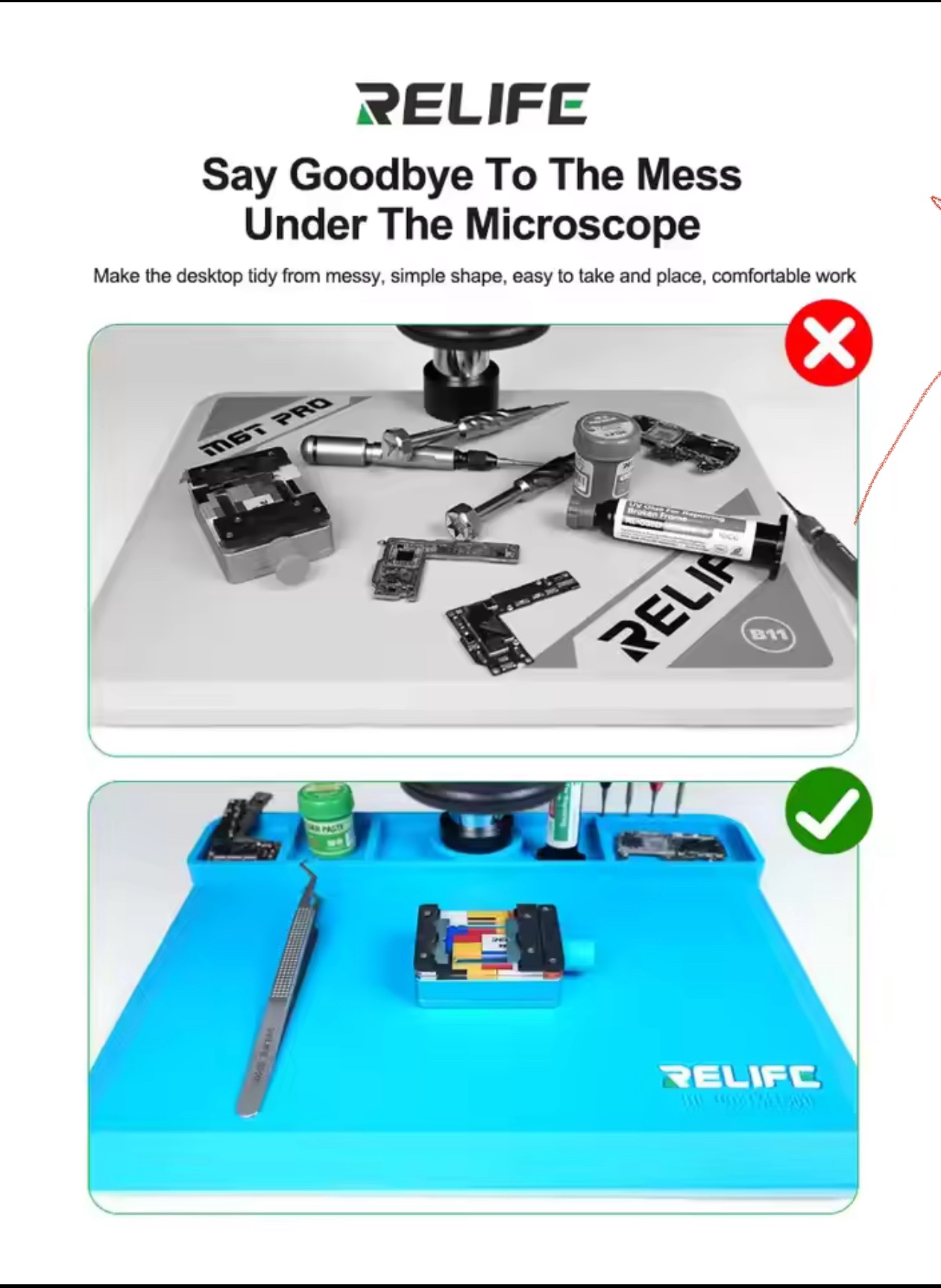

Helps maintain an organized and tidy workspace, ensuring technicians can work efficiently.
Prevents static-related failures that can damage expensive electronic components.
Unlike regular silicone mats, the RELIFE RL-004M-B11 is built to withstand extreme conditions, making it perfect for high-volume repair shops, service centers, and technicians handling delicate electronics.
Ideal for smartphone, tablet, and laptop motherboard repair. RELIFE RL-004M-B11 Black Color
Suitable for precision soldering, reballing, and BGA rework stations. RELIFE RL-004M-B11 Black Color
Great for assembling and disassembling small electronic devices. RELIFE RL-004M-B11 Black Color
Place the Mat on a Stable Workbench
Ensure the mat is flat and stable before starting repairs.
Position it in an area with adequate lighting and space for tools.
Set Up Your Microscope and Repair Tools
Use the black base surface to improve visibility under the microscope.
Arrange tools such as screwdrivers, tweezers, and soldering irons within easy reach.
Perform Repairs Safely
Take advantage of the heat-resistant surface when using soldering irons and hot air stations.
Place delicate motherboards and ICs on the ESD-safe surface to prevent electrostatic damage.
Keep Components Organized
Utilize the mat’s storage sections to hold screws, small parts, and removed components.
Helps prevent losing important motherboard connectors or microchips during disassembly.
Clean and Maintain the Mat
After repairs, wipe the surface clean using alcohol wipes or a dry cloth.
Avoid cutting or puncturing the mat to maintain its durability and anti-static properties.
✔ Mobile Repair Technicians – Essential for professionals handling iPhone, Samsung, Huawei, and Xiaomi motherboard repairs.✔ Electronics Repair Shops – Ideal for high-precision soldering and circuit board analysis.✔ DIY Repair Enthusiasts – Perfect for hobbyists working on personal devices and small electronics.✔ Manufacturing and Assembly Lines – Useful for component testing, assembly, and rework tasks.
Brand: RELIFE
Model: RL-004M-B11
Material: High-quality anti-static silicone
Color: Black
Temperature Resistance: Up to 500℃
Anti-Static (ESD Safe): Yes

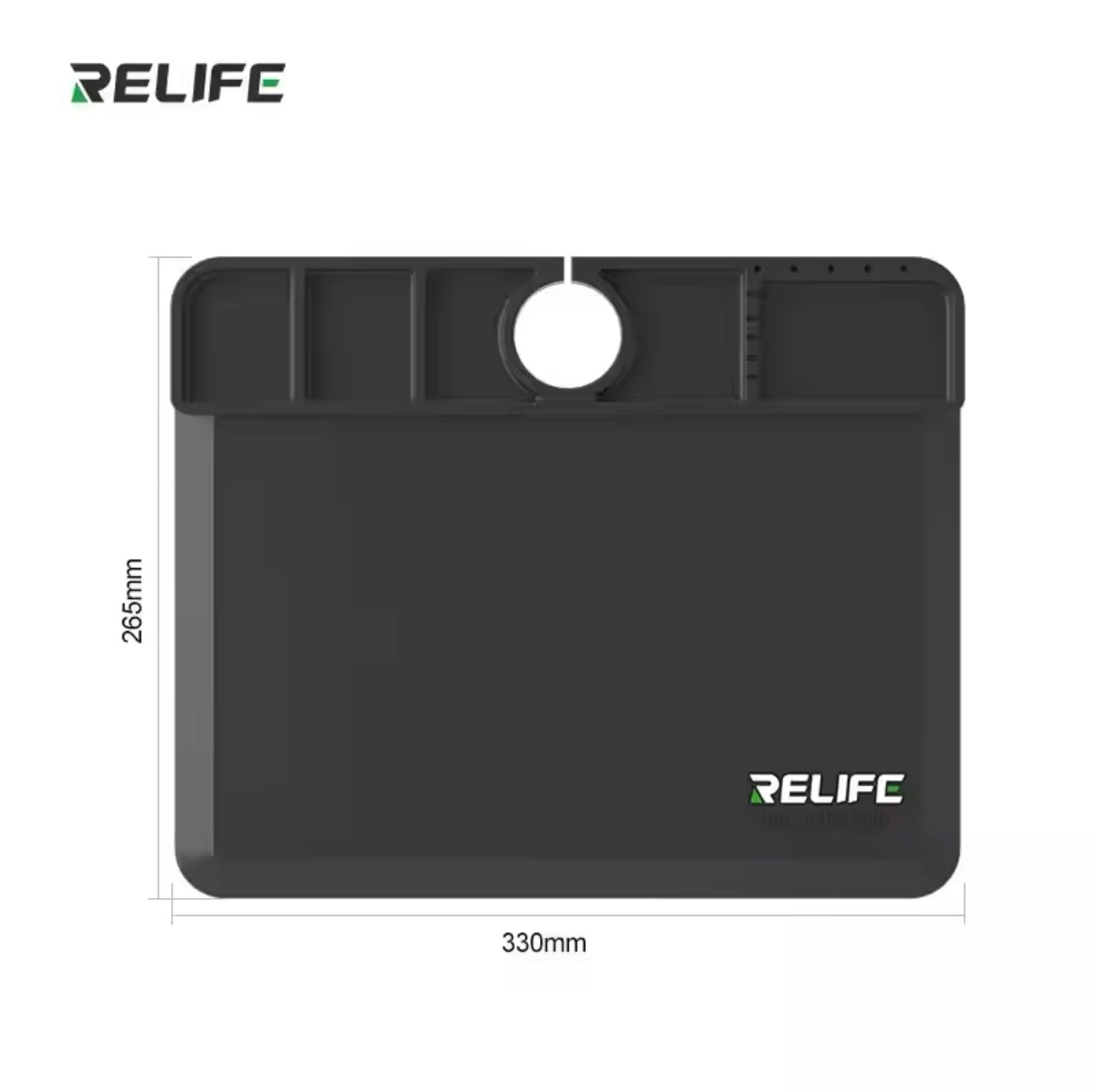

Size: Large workspace to accommodate microscopes, tools, and motherboard components
Compatibility: Suitable for mobile phone repair, laptop repair, and precision soldering tasks
The RELIFE RL-004M-B11 Black Color Base Microscope Silicone Pad is a must-have tool for professional repair technicians. With high-temperature resistance (500℃), an anti-static design, and a microscope-friendly black surface, this mat enhances safety, precision, and efficiency in smartphone motherboard repair. RELIFE RL-004M-B11 Black Color
Whether you’re a repair shop owner, a professional technician, or a DIY enthusiast, this silicone pad provides the durability and protection needed for delicate electronics work. Invest in the RELIFE RL-004M-B11 and experience a higher level of reliability, organization, and safety in your repair workspace. RELIFE RL-004M-B11 Black Color
