Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

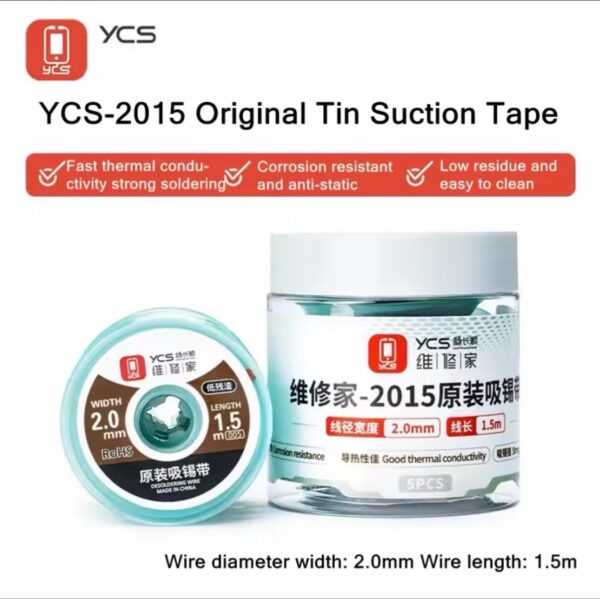

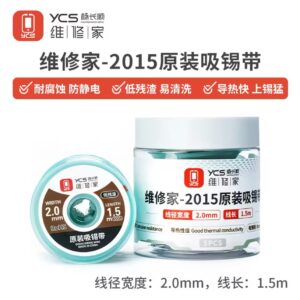

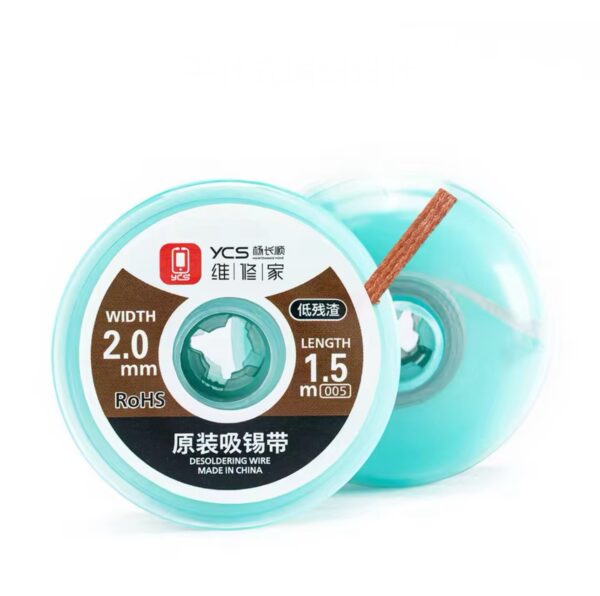

YCS 2mm 2015 Desoldering braids are essential tools utilized in the electronics repair and assembly sectors, particularly in BGA soldering applications. The YCS 2mm 2015 model is notable for its high-quality construction, which significantly enhances solder removal efficiency. Typically made from fine copper wires, desoldering braids are designed to absorb molten solder when heated, making them a preferred choice for many technicians. YCS 2mm 2015 Desoldering YCS 2mm 2015 Desoldering Braid
At the core of a desoldering braid’s effectiveness is a special flux that is integrated within or applied to the braid. This flux acts as a medium that promotes the capillary action necessary for wick solder away from components on a circuit board. When heat is applied, the solder liquefies and is drawn into the braid, leaving the area clean and ready for further soldering or repairs. The 2mm width of the YCS model makes it versatile, allowing it to navigate various surface areas and intricate circuit patterns. YCS 2mm 2015 Desoldering YCS 2mm 2015 Desoldering Braid
Desoldering braids have significant advantages over traditional methods such as solder pumps or manual desoldering tools. Unlike pumps that can be cumbersome and may not work effectively in dense layouts, desoldering braids are compact, easy to manipulate, and reliable. Furthermore, they produce less heat to the board and surrounding components, minimizing the risk of thermal damage. Their ease of use, combined with better control over the removal process, has made desoldering braids a favored choice among both professionals and hobbyists alike. YCS 2mm 2015 Desoldering YCS 2mm 2015 Desoldering Braid
In conclusion, the YCS 2mm 2015 desoldering braid exemplifies effective solder removal technology, thanks to its copper composition and integrated flux. Understanding these components can help users appreciate the key benefits of employing desoldering braids in BGA soldering, ensuring high-quality, efficient results in their electronic repair tasks. YCS 2mm 2015 Desoldering Braid
Utilizing the YCS 2mm desoldering braid can be an efficient method for removing solder from circuit boards. To begin, gather the necessary tools: a soldering iron, the YCS desoldering braid, and a pair of tweezers. Additionally, ensure your workspace is clean and organized to promote effective solder removal, as a tidy environment aids in focus and efficiency. YCS 2mm 2015 Desoldering Braid
Before initiating the desoldering process, preheat your soldering iron to a suitable temperature, usually between 350°C and 400°C. This temperature range is optimal for ensuring that the solder melts effectively without damaging surrounding components. Next, cut a piece of the YCS braid to a manageable length, typically around 3-5 inches, allowing for adequate absorption of the molten solder.

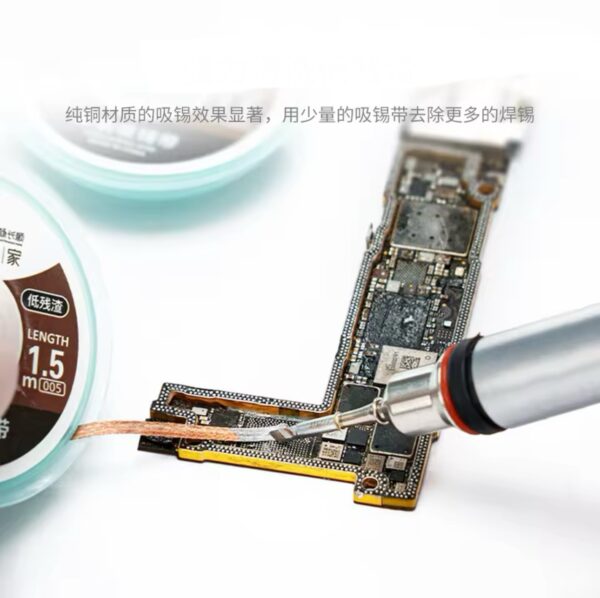

To commence the removal process, position the YCS braid over the solder joint you wish to remove. Gently press the soldering iron onto the braid and the solder simultaneously, allowing the heat to saturate the braid and melt the solder beneath it. It is crucial to monitor the timing during this step; applying heat for too long can lead to damage to sensitive components, while too short a duration may result in incomplete solder removal.
Once the solder has melted, the YCS braid will absorb the solder, leaving a clean pad on the circuit board. After the process, carefully lift away the braid along with the molten solder, and promptly refrain from overheating to ensure durability. Proper cleanup involves inspecting the desoldered area for any solder remnants and, if necessary, applying flux to promote a better connection during future soldering. Ensure that your YCS desoldering braid is stored correctly for long-term use, away from heat and moisture.
If you encounter difficulties during the removal process, troubleshooting common issues—such as lack of solder absorption or overheating—can be mitigated with adjustments to timing and heat application. By integrating these best practices while using the YCS desoldering braid, both novices and seasoned solderers can enhance their desoldering efficiency significantly.
