Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

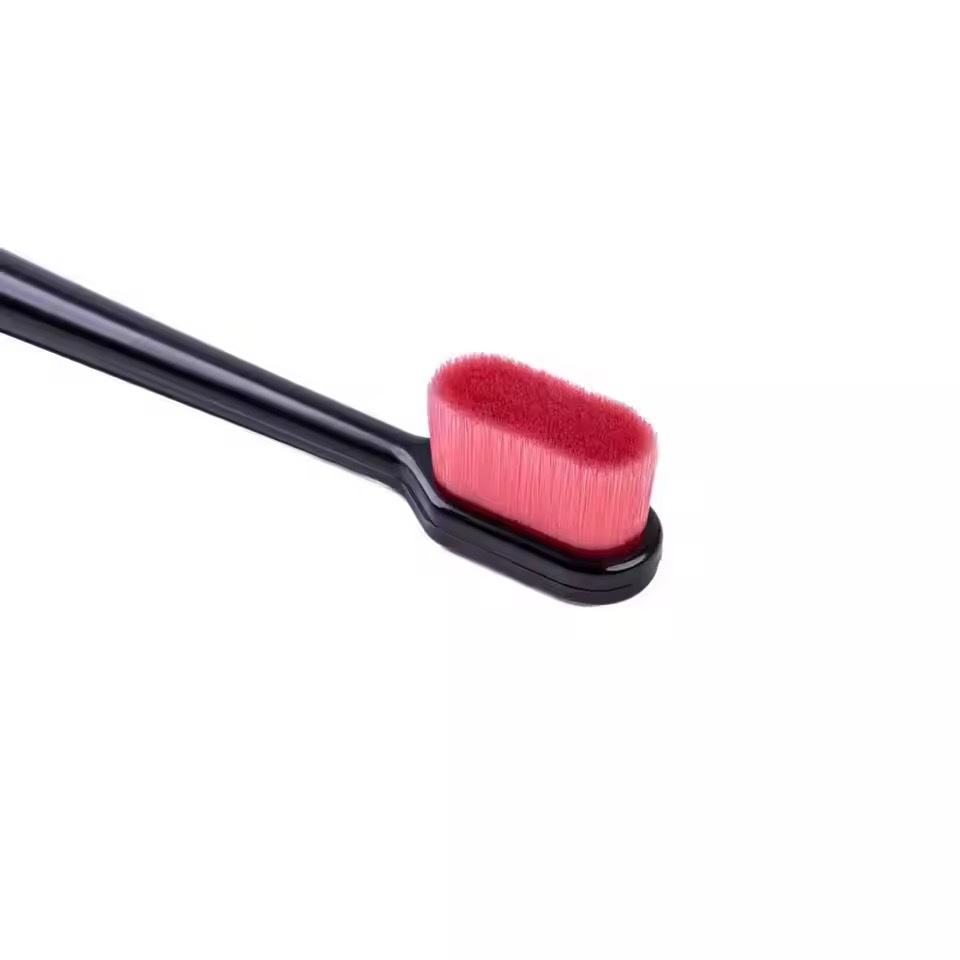

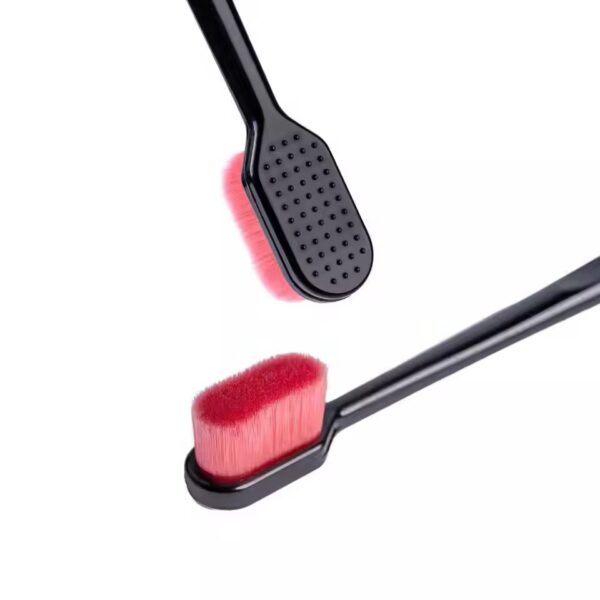

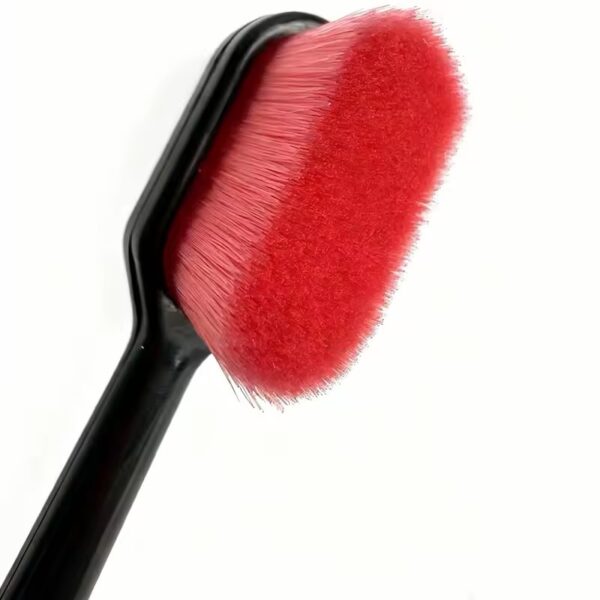

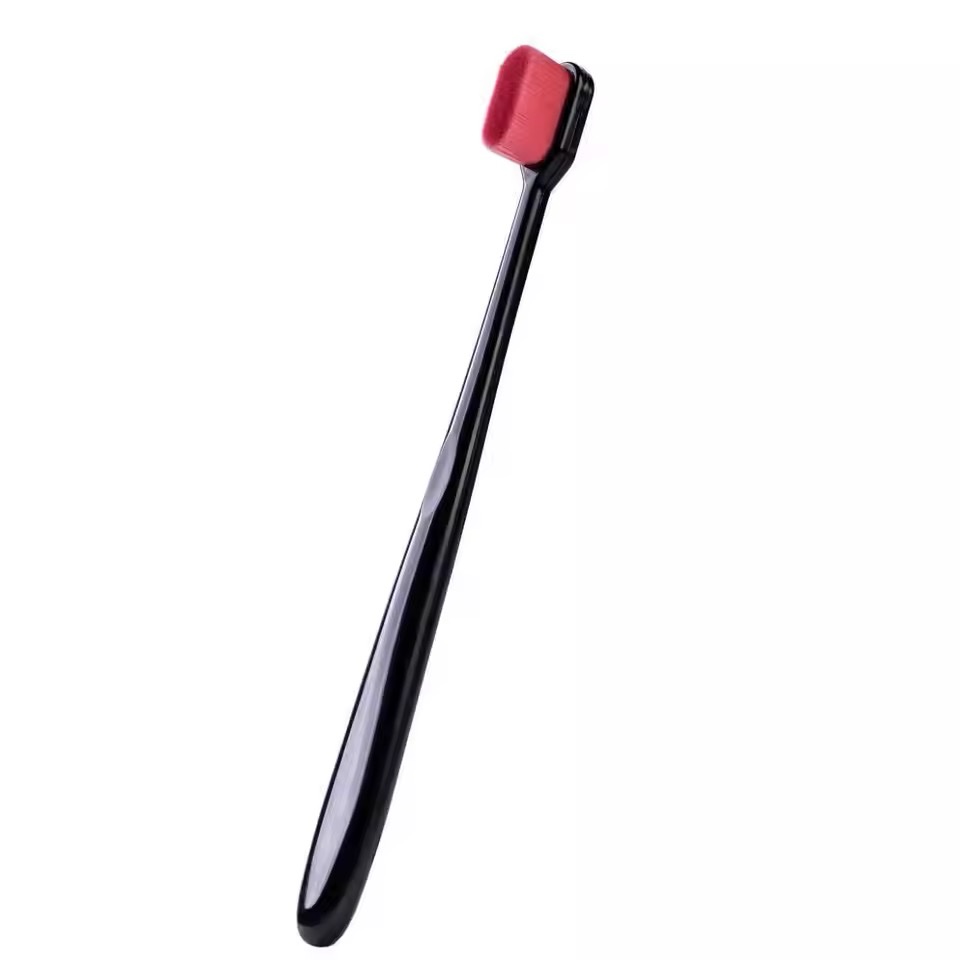

YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
The core innovation of the YCS Mr. Yang brush lies in its dual-purpose head design. Rather than switching between multiple tools during an intricate IC (Integrated Circuit) reballing or cleaning process, technicians can simply flip the tool.
The Rigid Steel Side: Features densely packed, ultra-thin steel wire bristles. These are designed to provide localized, high-abrasion scrubbing without snapping or losing shape easily.
The Soft/Flexible Side: Uses high-density natural horsehair or fine synthetic fibers designed to sweep away loose debris, dust, and microscopic balls of solder without generating static electricity.
Standard wire brushes use thick bristles that can scratch away the green solder mask of a PCB, exposing underlying copper traces and causing accidental shorts. The YCS Mr. Yang brush utilizes microscopic steel wires (often down to 0.08mm in diameter). This extreme fineness grants the brush a unique property: it behaves softly over flat areas but provides sharp, collective abrasive force when pressed firmly against hardened glues or oxidation.
The handle is constructed from anti-static materials to protect sensitive CMOS components from electrostatic discharge (ESD). Additionally, because cleaning often happens immediately after desoldering while the board is still hot, the entire brush assembly is built to withstand high temperatures without melting or deformation.
After removing a BGA (Ball Grid Array) chip like a phone CPU or memory module, residual, uneven solder (“tin”) remains on the motherboard pads. Using a soldering iron alongside the YCS steel brush allows technicians to gently whisk away excess solder lumps, preparing a perfectly flat surface for the replacement chip. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Modern smartphone manufacturers use black underfill epoxy resin to structurally reinforce chips against drops. This glue is notoriously difficult to remove. When softened slightly with a hot air gun, the steel bristles of this brush effortlessly score, break up, and scrape away the resin from between tight component spacings without harming adjacent SMD components. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Liquid-damaged motherboards suffer from rapid corrosion, which leaves a crusty layer of oxide on components. The fine steel wire acts as a micro-polisher, scrubbing away rust and scale to reveal clean metal contacts on charging ports, FPC connectors, and test points. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
To ensure maximum longevity of your YCS Mr. Yang brush, adhere to the following shop practices:
Chemical Compatibility: The bristles are fully compatible with common electronics cleaning solvents like Isopropyl Alcohol (IPA), acetone, and specialized flux removers. Clean the brush regularly in an IPA bath to remove sticky flux buildup. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Avoid Excessive Downward Pressure: Let the high-density micro-wires do the cutting work. Pushing down too hard bends the bristles permanently out of shape and reduces the tool’s lifespan. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Dedicated Task Separation: Keep separate brushes for glue scraping and pad polishing to avoid cross-contaminating pristine soldering surfaces with old epoxy residue. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
The YCS Mr Yang Motherboard Cleaning Brush is designed to deliver smooth and effective cleaning for delicate electronics and equipment. Whether clearing dust, removing glue, or polishing soldering pads, this brush ensures thorough cleaning without damage. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Built for functionality, the brush tackles a range of maintenance needs. From dust removal to tin cleaning, it makes every task easier and more efficient. Its ergonomic design ensures comfortable use while maintaining high performance. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
Manufactured with high-quality materials, the YCS Mr Yang Cleaning Brush combines durability and reliability. Perfect for professionals and hobbyists, it’s the ideal companion for intricate cleaning and polishing tasks. YCS Mr Yang Motherboard Cleaning Brush Soldering Pad Dust Glue Tin Removing Maintenance Clean Hand Too Polishing Brush
