Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

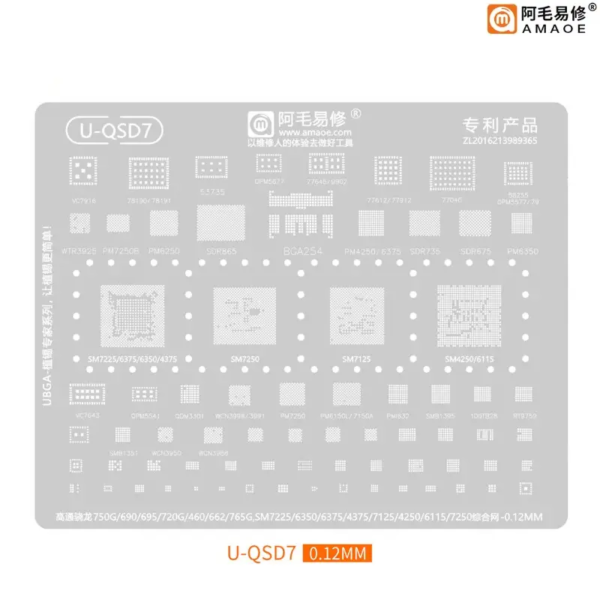

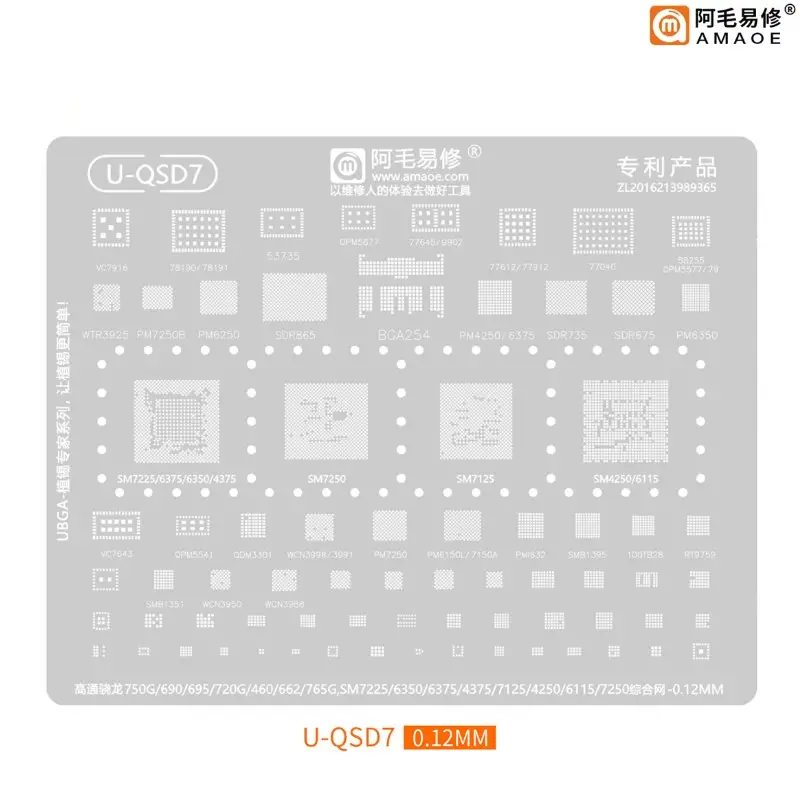

The AMAOE U-QSD7 stencil is a high-precision tool designed specifically for professionals engaged in mobile repairing. Its primary purpose is to facilitate the efficient soldering and reworking of components on various mobile devices, which includes smartphones, tablets, and other compact electronics. The stencil’s intricate design allows technicians to apply solder paste with remarkable accuracy, ensuring optimal connectivity and performance of repaired devices. This level of precision is critical in the fast-paced environment of mobile repair, where even the smallest errors can lead to significant setbacks.
Constructed with durable materials, the AMAOE U-QSD7 stencil is not only built to withstand the rigors of frequent use but also engineered for ease of handling. Its robust yet lightweight design enhances portability for repair technicians who may operate in diverse environments. Moreover, this stencil is compatible with an extensive array of mobile phone models, making it a versatile addition to any repair toolkit. Users can transition seamlessly between different devices without the need for multiple stencils, streamlining the repair process.
Another noteworthy feature of the AMAOE U-QSD7 is its thoughtful design, which incorporates clear markings and dimensions to guide users during the application of solder paste. This attention to detail significantly reduces the risk of misalignments, thus improving the overall efficiency of repair tasks. For both seasoned professionals and hobbyists, the AMAOE U-QSD7 stencil serves as an invaluable asset, elevating the standard of accuracy in mobile device repairs. Its reputation in the mobile repair industry underscores its effectiveness and reliability, making it a widely recommended tool among technicians.
Using the AMAOE U-QSD7 stencil in mobile repairs requires careful preparation and attention to detail. The first step involves pre-repair preparations, which are crucial for successful repair outcomes. Begin by ensuring that you have selected the appropriate stencil based on the specific model of the device you are working on. The AMAOE U-QSD7 stencil is designed to cater to various mobile devices, but choosing the correct variant is essential for achieving optimal alignment and soldering precision.
Next, set up a conducive working environment. This includes a clean, organized workspace equipped with all necessary tools such as a soldering iron, solder paste, and cleaning materials. Proper lighting is also vital to ensure you can see the finer details during the repair process. Additionally, implementing safety measures, such as wearing anti-static gloves and using an anti-static mat, will protect both the technician and the device from potential damage.
Once your preparations are complete, it is time to proceed with the application process. Align the stencil meticulously over the motherboard, ensuring it fits snugly without any misalignments. When applying solder paste, use a spatula to spread it evenly across the stencil openings. This step is critical, as uneven application can lead to failed solder joints. Common mistakes include overfilling the openings or not applying enough paste, both of which can result in operational issues.
After the application, remove the stencil carefully and inspect the solder joints. It is essential to check for any solder bridges and ensure that all components are securely placed. Performing post-repair checks will confirm that everything is functioning optimally, minimizing the risk of future malfunctions. Following these steps will enhance your efficiency and effectiveness when using the AMAOE U-QSD7 stencil in mobile repairing.
