Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

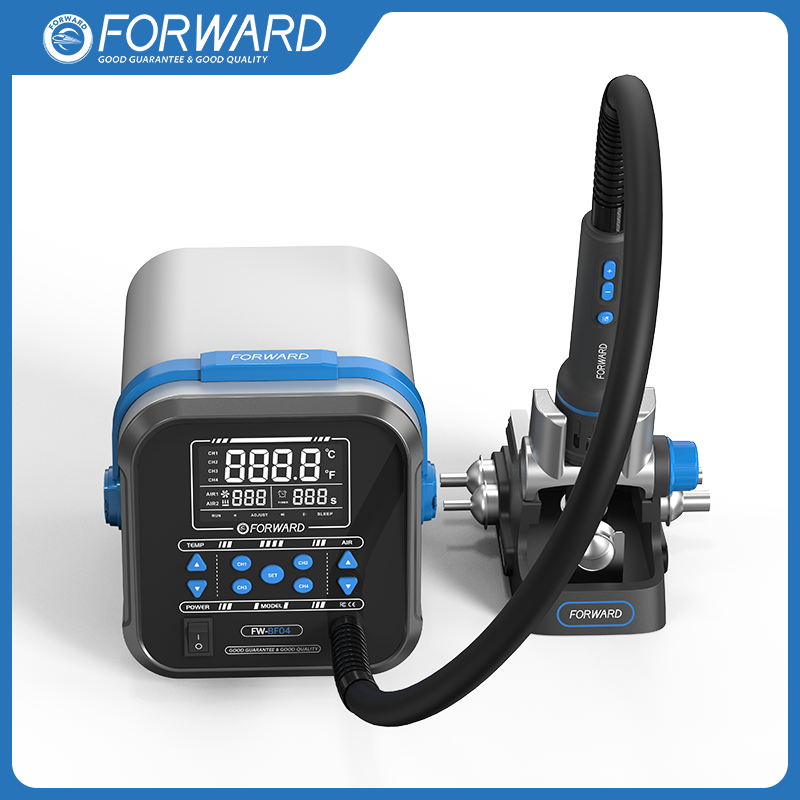

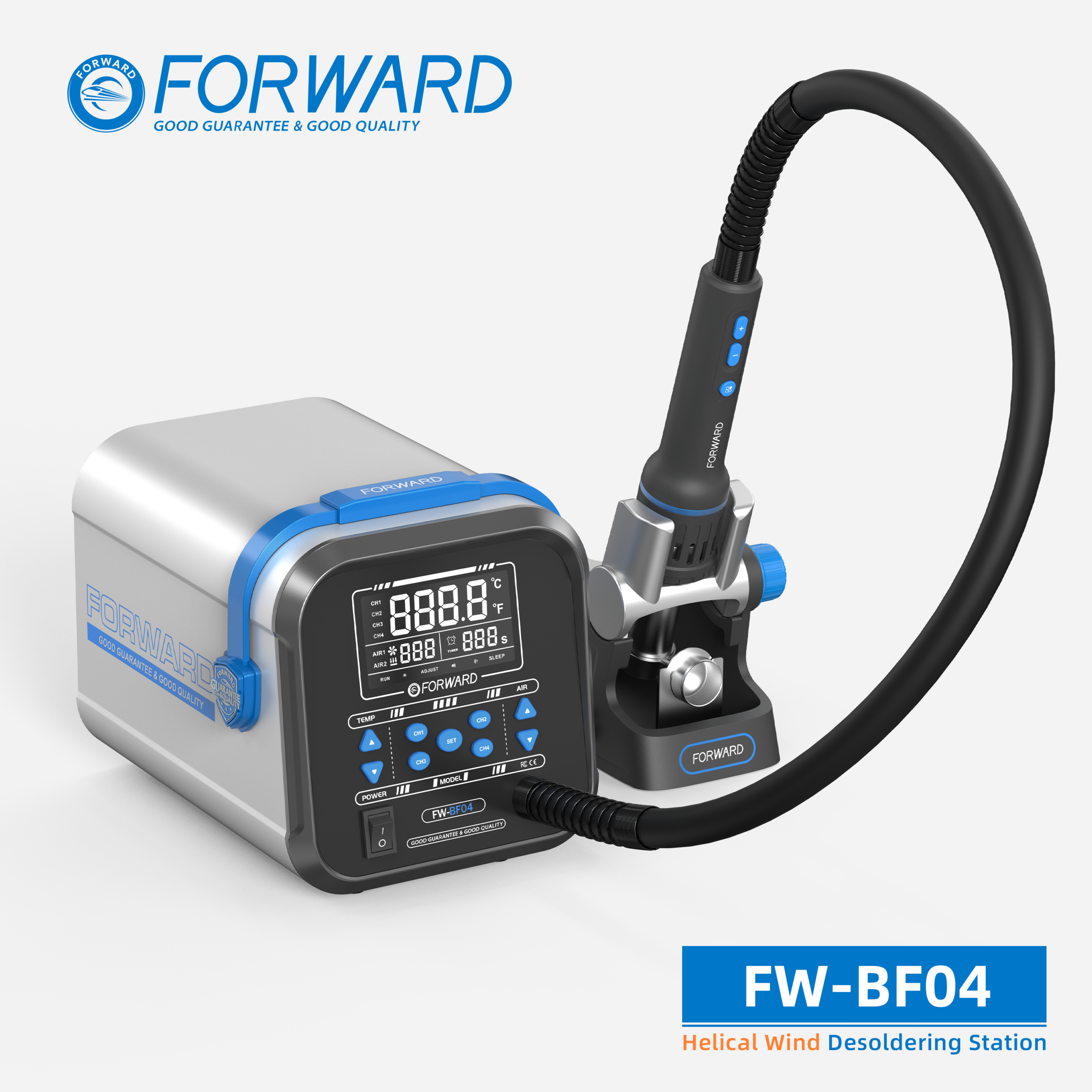

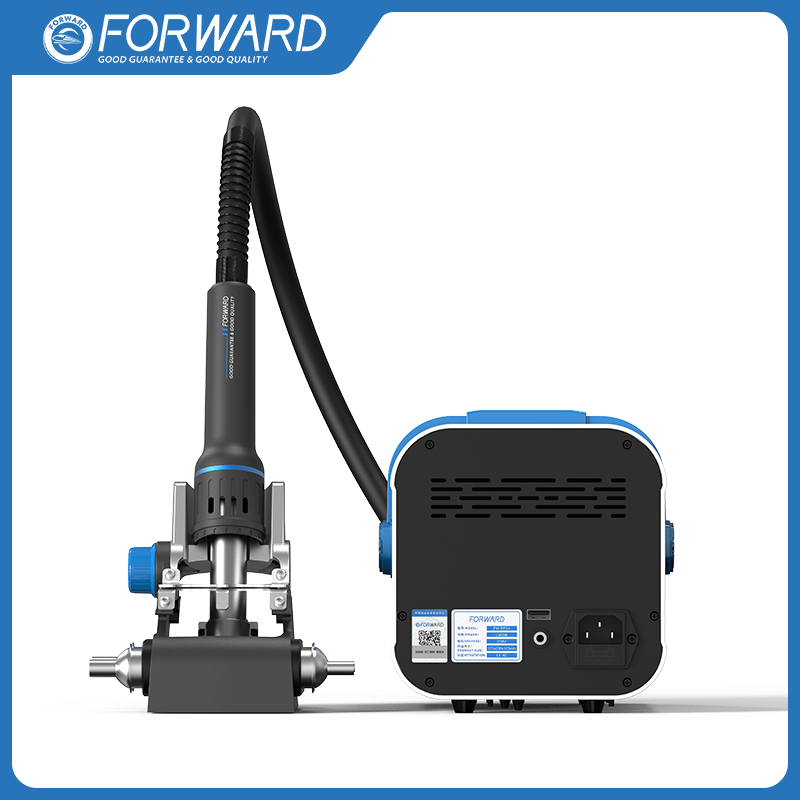

The FORWARD FW-BF04 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair is designed to meet the needs of professionals in electronic repairs. With its advanced helical wind technology, this hot air gun ensures targeted heat delivery, making it ideal for BGA motherboard repair and intricate SMD rework tasks.
This soldering station is equipped with an ergonomic build and intuitive controls, making it easy to handle during prolonged use. Its adjustable temperature settings provide flexibility for a variety of soldering and welding applications, ensuring consistent and high-quality results.
Built to last, the FW-BF04 offers robust construction and reliable heat output. Whether you’re working on delicate electronic components or advanced rework processes, this soldering station delivers the precision and durability professionals expect from a top-tier tool.
The FORWARD FW-BF04 uses an advanced 1300W ceramic heating element paired with a microcomputer-driven PID control loop. This configuration minimizes thermal lag, enabling the hot air gun to climb from room temperature to its operational setpoint within seconds. The K-type thermocouple samples temperature values continuously, holding the nozzle output to a strict ±2°C threshold. This eliminates hazardous thermal spiking, protecting delicate BGA chips, CPU pads, and micro-SMD resistors on modern smartphone motherboards.
Standard hot air rework tools often utilize a linear airflow configuration that risks blasting miniature passive components ($01005$ or $0201$ packages) off the circuit pads. The FW-BF04 counteracts this through its Soft Helical Wind™ system. Driven by a high-pressure, 16,000+ RPM dual-ball vortex turbine, the air delivery mimics a controlled cyclone. This disperses thermal mass evenly across the component surface rather than concentrating extreme pressure on a single point, resulting in cleaner reflows and reducing adjacent-component displacement.
Efficiency is enhanced by moving control away from the base unit. The station’s ergonomic handle integrates three multi-function buttons directly onto the grip. Technicians can toggle between the four pre-saved memory profiles (CH1–CH4), modulate real-time airflow, or dial in specialized countdown times without looking away from the microscope. The base unit is anchored by a scratch-resistant, high-temperature toughened glass display panel that reports error states, countdown indicators, and active temperature parameters.
To prevent accidents in busy workshop environments, the FW-BF04 integrates an intelligent safety algorithm. The station monitors system functions using 3S active fault detection. If an airflow blockage or structural fan malfunction occurs, power to the 1300W element is immediately isolated to stop thermal runaway. Additionally, docking the handle in its magnetic cradle engages a high-volume cold air flush, rapidly reducing the element’s core temperature before putting the station into low-power standby mode, expanding the service life of internal components.
