Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

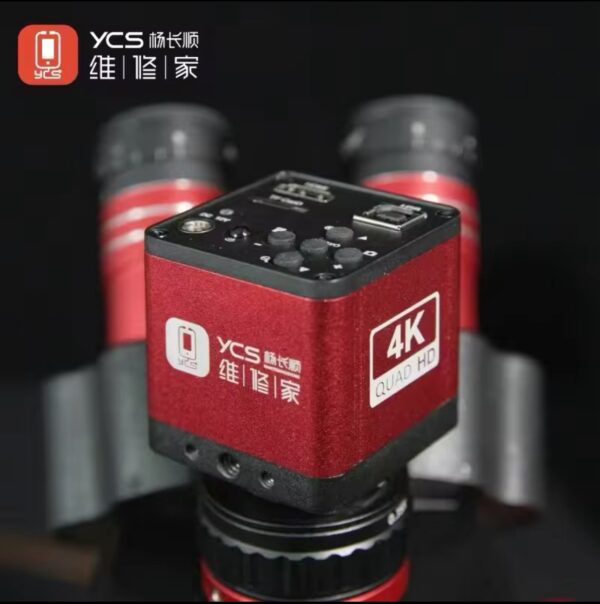

The YCS Industrial Microscope Camera represents a significant advancement in the field of microscopy, particularly in 4K high pixel imaging. This camera is engineered to deliver exceptional clarity and detail, boasting a resolution of 3840 x 2160 pixels. This high pixel density allows users to capture intricate details in samples that would otherwise be invisible with standard microscope cameras. Such capabilities make the YCS camera particularly suitable for a wide range of applications including industrial inspections, laboratory research, and educational settings.

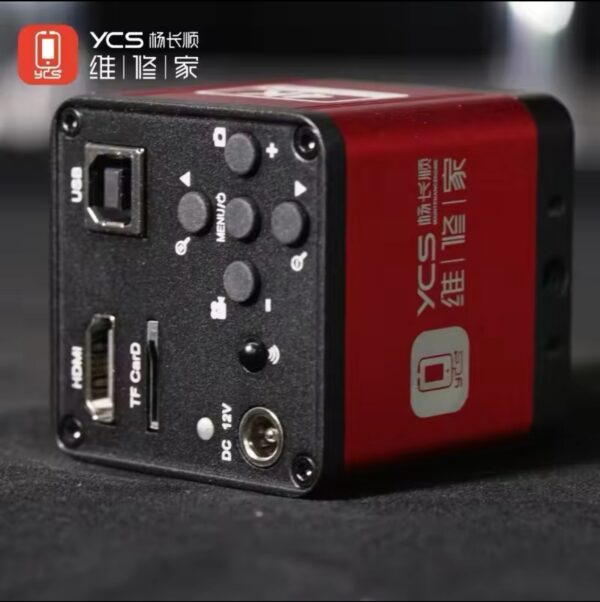

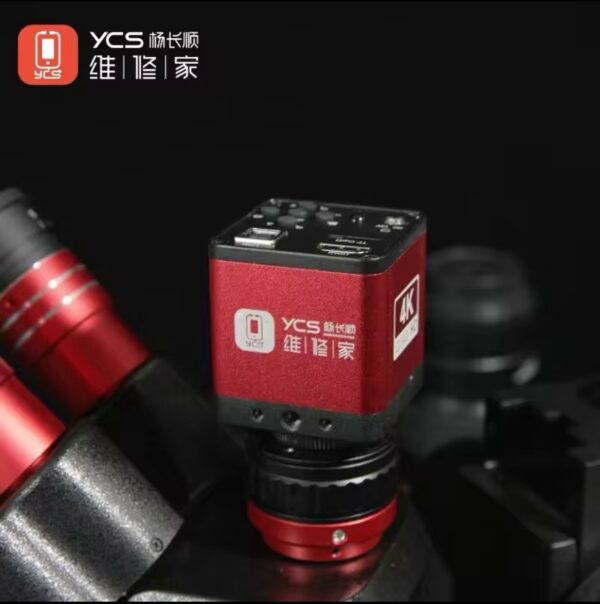

Compatibility is a vital aspect of the YCS Industrial Microscope Camera, designed to operate seamlessly with trinocular stereo microscopes. This feature enables users to integrate the camera into their existing setups without significant modifications. The user-friendly interface simplifies the process of capturing images and videos, making it accessible to both seasoned professionals and newcomers to microscopy. The intuitive controls and software compatibility enhance the overall user experience, allowing for easy adjustments and real-time viewing.

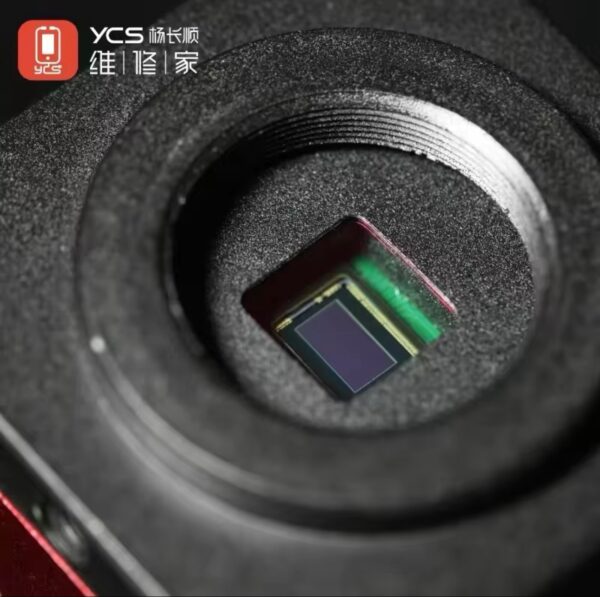

The YCS camera stands out due to its advanced features, which include high-performance sensors that provide superior light sensitivity. This characteristic is particularly advantageous in low-light environments, ensuring that high-quality images can be obtained even in challenging conditions. Additionally, the camera’s robust build quality ensures durability, making it a reliable choice for various professional environments. Users can depend on the YCS Industrial Microscope Camera to withstand frequent use, while maintaining its performance over time. The combination of its high pixel imaging capabilities, compatibility, and durability establish the YCS camera as an exemplary tool in modern microscopy.
The YCS Industrial Microscope Camera is a significant advancement in the field of microscopy, offering 4K high pixel imaging that greatly enhances image clarity and detail. This level of resolution is crucial for professionals in various fields, allowing for precise observations that are essential in tasks such as scientific research and manufacturing quality control. By providing clear and high-definition images, users can analyze specimens with remarkable accuracy, leading to improved decision-making processes. Moreover, the ability to capture fine details increases the potential for discovering new insights in complex samples.
In the realm of scientific research, the YCS Industrial Microscope Camera plays a vital role in facilitating accurate analyses. For example, biologists studying cellular structures benefit from the camera’s capability to reveal intricate details that would typically remain unseen with conventional microscopes. Additionally, testimonials from researchers reveal a marked increase in productivity as the camera reduces the time taken to document and analyze findings. The switch to a 4K imaging system has allowed labs to conduct comprehensive studies more efficiently, fostering advances in pharmaceutical development and materials science.
Quality control in manufacturing environments is another area where this camera excels. The detailed imaging helps ensure products meet stringent specifications, as inspectors can scrutinize intricate components for defects and inconsistencies. Manufacturing experts note that integrating the YCS Industrial Microscope Camera into their quality analysis processes has minimized errors and waste, significantly boosting overall productivity.
In educational settings, the YCS camera serves as an effective teaching tool, providing students with the opportunity to explore microscopic phenomena in high definition. The engaging images captivate students’ attention, enhancing their learning experience. Nevertheless, challenges may arise when integrating this advanced technology into existing setups, such as compatibility with older systems and the need for additional training. Nonetheless, the advantages offered by the YCS Industrial Microscope Camera in various applications underscore its value in contemporary microscopic analysis.
