₹10,500 Original price was: ₹10,500.₹8,700Current price is: ₹8,700.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

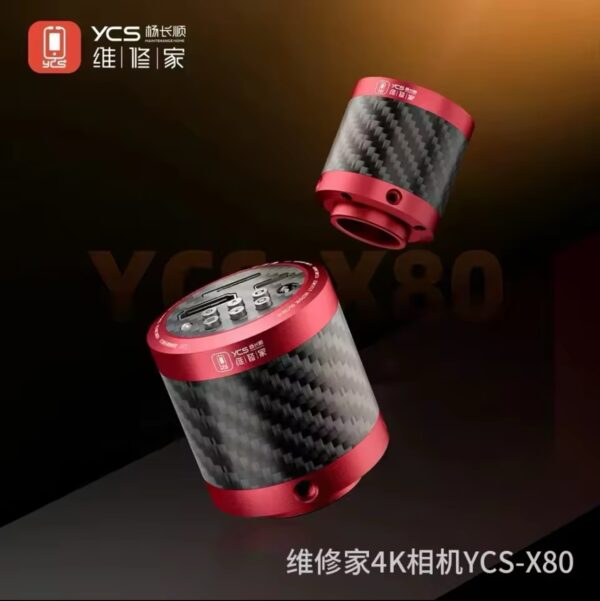

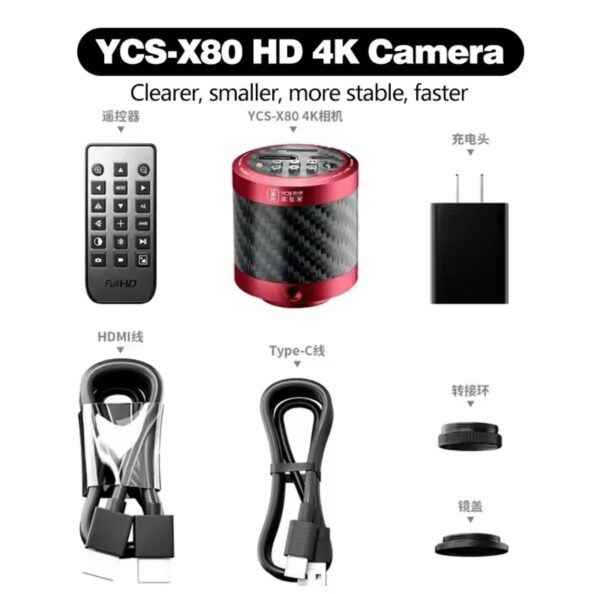

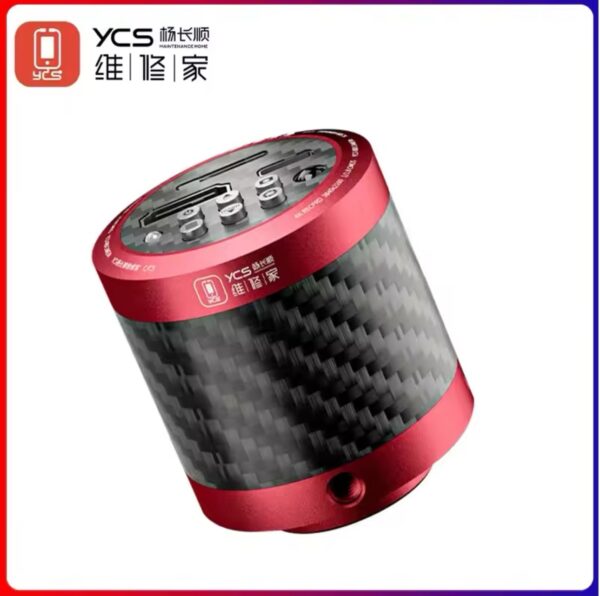

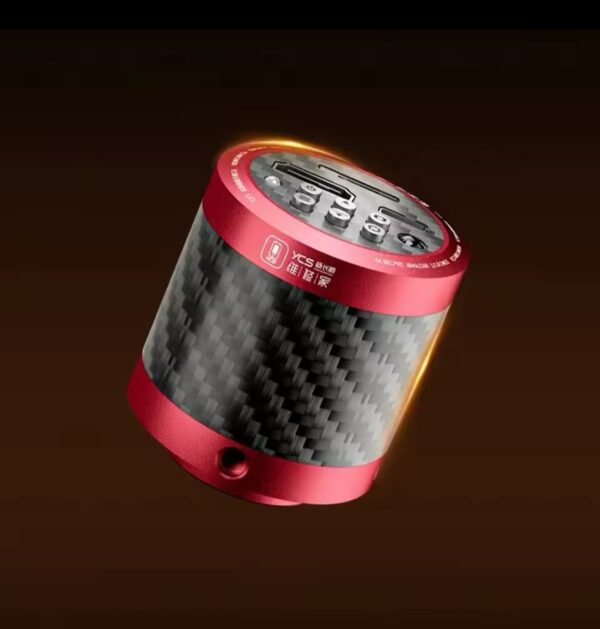

The YCS 4K Trinocular Microscope Camera is a cutting-edge imaging device designed to elevate precision and efficiency in various industrial applications, particularly in printed circuit board (PCB) repair. This advanced microscope camera boasts a remarkable 4K resolution, enabling users to observe intricate details with unparalleled clarity. The integration of a high-performance CMOS sensor ensures that images captured are not only sharp and vibrant but also free from distortion, which is crucial for meticulous tasks that require accuracy.

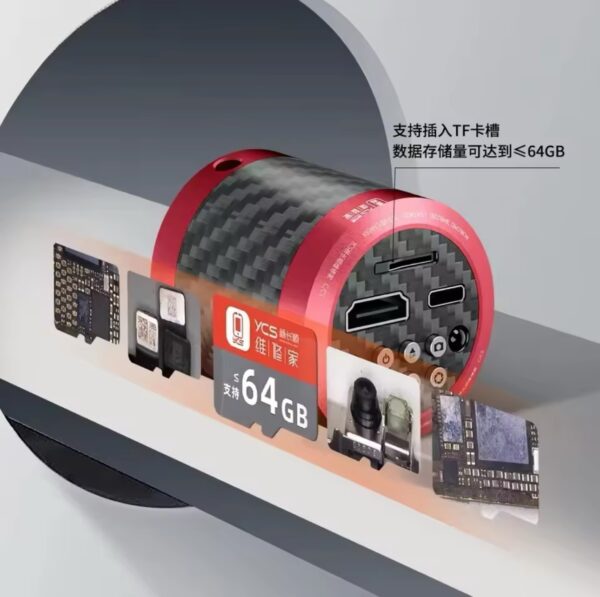

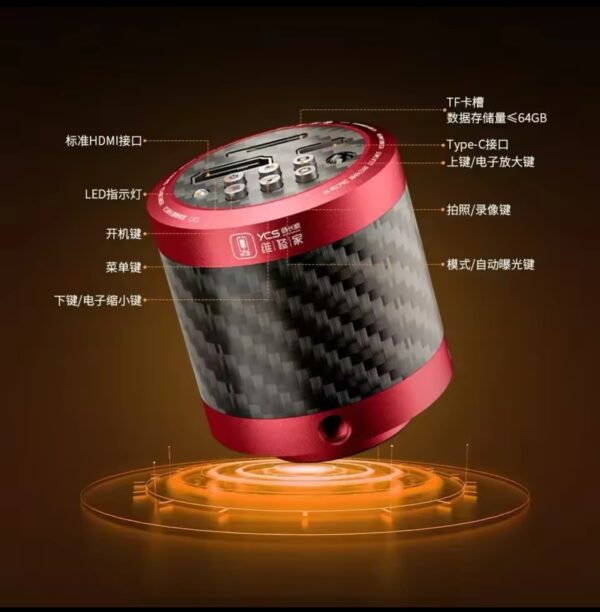

One of the standout features of the YCS 4K Trinocular Microscope Camera is its HDMI output functionality, allowing direct connection to external displays. This capability significantly enhances the viewing experience, enabling technicians and engineers to work collaboratively or share findings in real time. The capacity to connect to larger screens opens up possibilities for presentations and training, making it an asset for both educational and professional environments.
The trinocular design of this microscope camera further amplifies its effectiveness. With dedicated eyepieces for both viewing and imaging, the design facilitates seamless observation while capturing high-resolution images. This dual functionality is particularly advantageous in PCB repair, where fine details can be easily overlooked. The added station for a camera promotes an efficient workflow, reducing the need for repetitive repositioning and adjustment, which can hinder productivity.
Overall, the YCS 4K Trinocular Microscope Camera combines high-definition imaging with user-friendly features, making it an indispensable tool for professionals engaged in PCB repair and similar industrial tasks. With its ability to provide detailed observations while capturing and displaying images in real-time, this microscope camera is exceptionally well-suited to meet the demands of precision engineering. Its role in enhancing the quality of work in the field cannot be overstated.
The YCS 4K Trinocular Microscope Camera has revolutionized the field of PCB repair by providing remarkable precision during critical inspection tasks. With a high-resolution image capture capability, the YCS microscope allows for detailed analysis of components and circuits, facilitating more accurate soldering, rework, and assembly processes. The visibility it offers enables technicians to identify defects or discrepancies in circuit boards that might go unnoticed with less advanced systems. This level of detail is crucial for maintaining high standards of quality in electronic manufacturing and repair.
The ease of use of the YCS microscope is one of its standout features. It boasts a user-friendly interface that allows both novice and experienced technicians to operate the system seamlessly. Additionally, its compatibility with USB connections allows for straightforward image transfer, making it easy to document findings and share images with team members or clients. This capability enhances communication and collaboration throughout the repair process, ultimately leading to higher efficiency and improved repair outcomes.
The robust design of the YCS microscope also makes it well-suited for industrial settings. It withstands the rigors of a busy workshop environment, thus ensuring that it remains a dependable tool for PCB professionals. A number of technicians have shared positive feedback about their experiences with the YCS microscope, noting significant improvements in productivity. For instance, one technician reported that using the YCS camera cut down inspection times by nearly 30%, allowing for faster turnaround on repairs without sacrificing quality.
Incorporating the YCS 4K Trinocular Microscope Camera into PCB repair workflows not only enhances technical capabilities but also fosters an environment of continuous improvement in quality assurance practices. By providing clarity and ease of use, the YCS microscope stands out as an essential tool for professionals in the electronics industry.
More Products :https://gsmtoolsindia.com/
Official Website : https://www.mechanichk.com/
