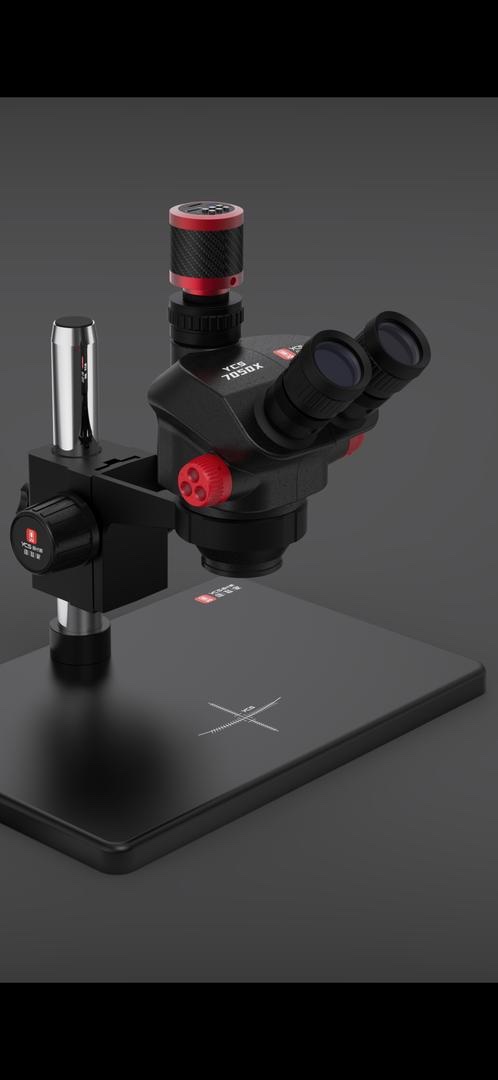

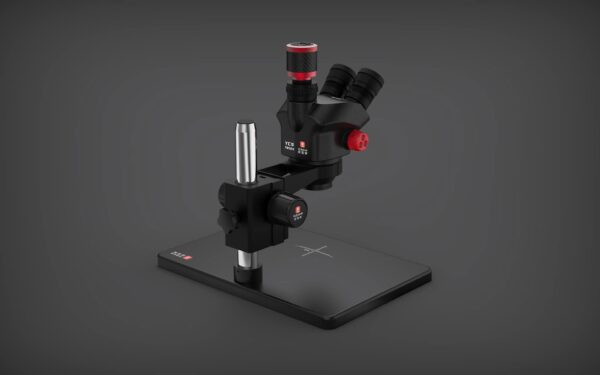

YCS 7050X Trinocular Stereo Microscope is a high-performance, industrial-grade precision instrument designed for a wide range of applications, including phone PCB (Printed Circuit Board) BGA (Ball Grid Array) repair, electronics inspection, and other precision work in industrial and research settings. Its robust features and advanced optical system make it an ideal choice for professionals who require detailed and accurate observation for intricate tasks. YCS 7050X Trinocular Stereo Microscope

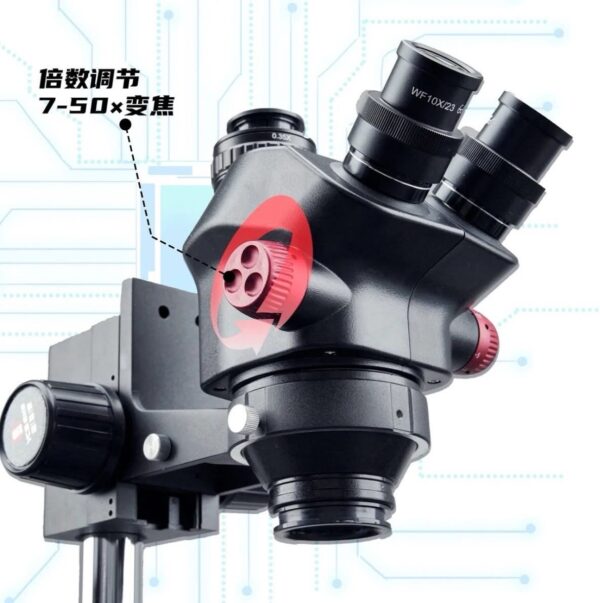

1. Continuous Zoom Magnification: The YCS 7050X features a continuous 7x to 50x zoom magnification range, offering users exceptional flexibility when inspecting small to medium-sized objects. This range is ideal for tasks requiring fine details such as soldering, circuit board analysis, and BGA rework. The zoom mechanism allows smooth transitions between magnifications, providing clear and sharp images without the need to switch lenses. This functionality significantly improves the efficiency and ease of operation for users, ensuring they can focus on the task at hand without interruptions. YCS 7050X Trinocular Stereo Microscope
2. Trinocular Design: The trinocular head of the YCS 7050X allows for a three-way viewing system that includes two eyepieces and a third optical port for attaching a camera. This feature is particularly beneficial for users who need to capture detailed images or videos of their work for documentation, analysis, or remote viewing. The camera port is compatible with a variety of digital cameras, including USB cameras, making it easy to integrate the microscope into a digital inspection or repair workflow. The trinocular setup ensures that the user can observe the specimen through the eyepieces while simultaneously recording or sharing their findings via the camera. YCS 7050X Trinocular Stereo Microscope

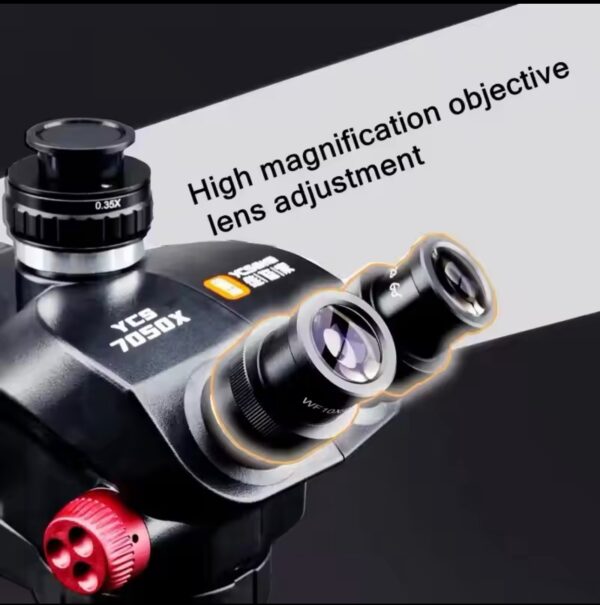

3. High-Quality Optics: The YCS 7050X incorporates high-quality optical components, providing users with clear, crisp, and distortion-free images. The microscope’s optical system is engineered for high resolution and excellent contrast, ensuring that even the smallest details are visible with high precision. This optical clarity is essential for tasks such as inspecting solder joints, microchips, and fine traces on PCB boards. With exceptional color fidelity and sharpness, users can accurately assess the condition of components and make precise adjustments or repairs. YCS 7050X Trinocular Stereo Microscope
4. Wide Working Distance: The YCS 7050X offers a generous working distance, allowing users to work comfortably with the specimen without having to worry about interference from the microscope itself. This feature is particularly useful when repairing PCBs, as it provides ample space for handling tools and components such as soldering irons and tweezers. The wide working distance ensures that users can perform delicate tasks, such as BGA reballing or chip replacement, with ease and precision. YCS 7050X Trinocular Stereo Microscope
5. Adjustable LED Illumination: Effective lighting is critical when working with small components, and the YCS 7050X provides adjustable LED illumination to ensure that the specimen is lit evenly and brightly. The built-in LED light source can be fine-tuned for optimal brightness and contrast, ensuring that details are illuminated without glare or shadow. The light intensity is adjustable to suit different types of work and lighting conditions, providing consistent illumination for all types of inspections.
6. Ergonomic Design: The YCS 7050X is designed for comfort and ease of use during extended periods of operation. The eyepieces are positioned to reduce eye strain, and the adjustable focus mechanism allows for precise adjustments. Its stable and durable construction ensures that the microscope remains steady during use, minimizing vibrations that could affect the accuracy of the work being performed.
7. Versatile Applications: While it is particularly suited for phone PCB BGA repair and precision electronics work, the YCS 7050X can be used in a variety of industrial and scientific applications. It is ideal for inspecting and repairing small mechanical components, circuit boards, biological specimens, and more. Whether used in electronics manufacturing, quality control, research labs, or repair workshops, this microscope provides the versatility needed to handle a wide range of tasks.
8. Easy Setup and Operation: Setting up and using the YCS 7050X is straightforward. It comes with easy-to-follow instructions and can be quickly assembled and adjusted to suit the user’s needs. The microscope’s intuitive design ensures that operators can get started immediately without requiring extensive training or experience.
The YCS 7050X Trinocular Stereo Microscope is an excellent choice for professionals seeking a reliable, high-performance microscope for precision work, particularly in the field of phone PCB BGA repair. Its continuous zoom magnification, high-quality optics, ergonomic design, and versatile features make it a valuable tool for electronics inspection and maintenance, ensuring users can perform their tasks with precision and efficiency. Whether you’re performing delicate soldering work or inspecting micro components, the YCS 7050X offers the clarity and flexibility needed for high-quality results.
