Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

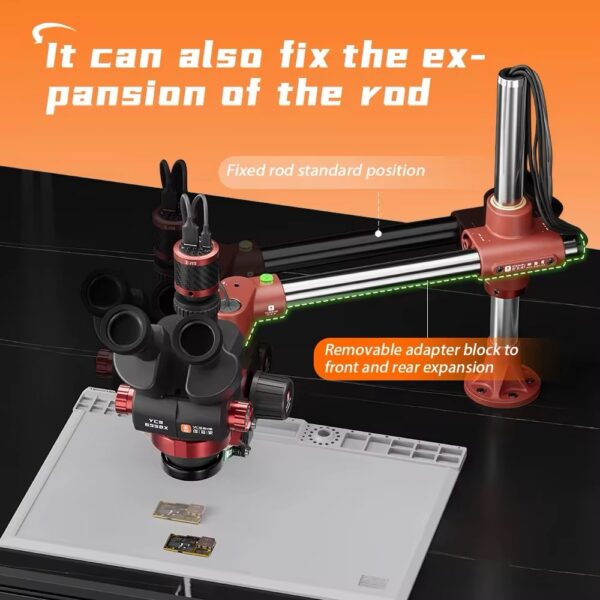

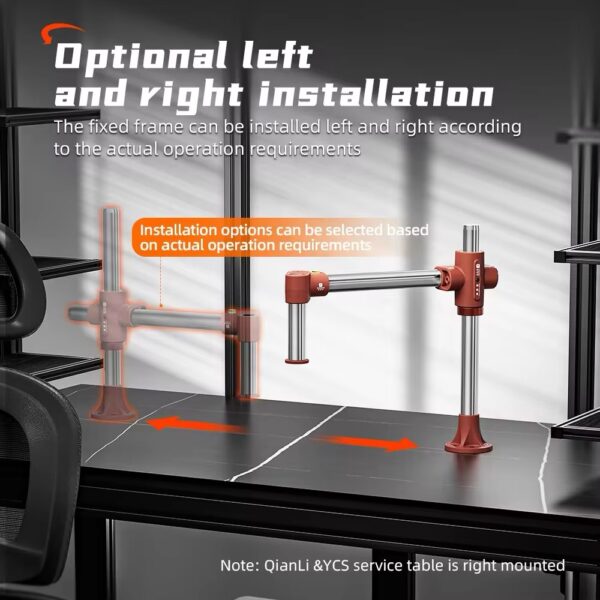

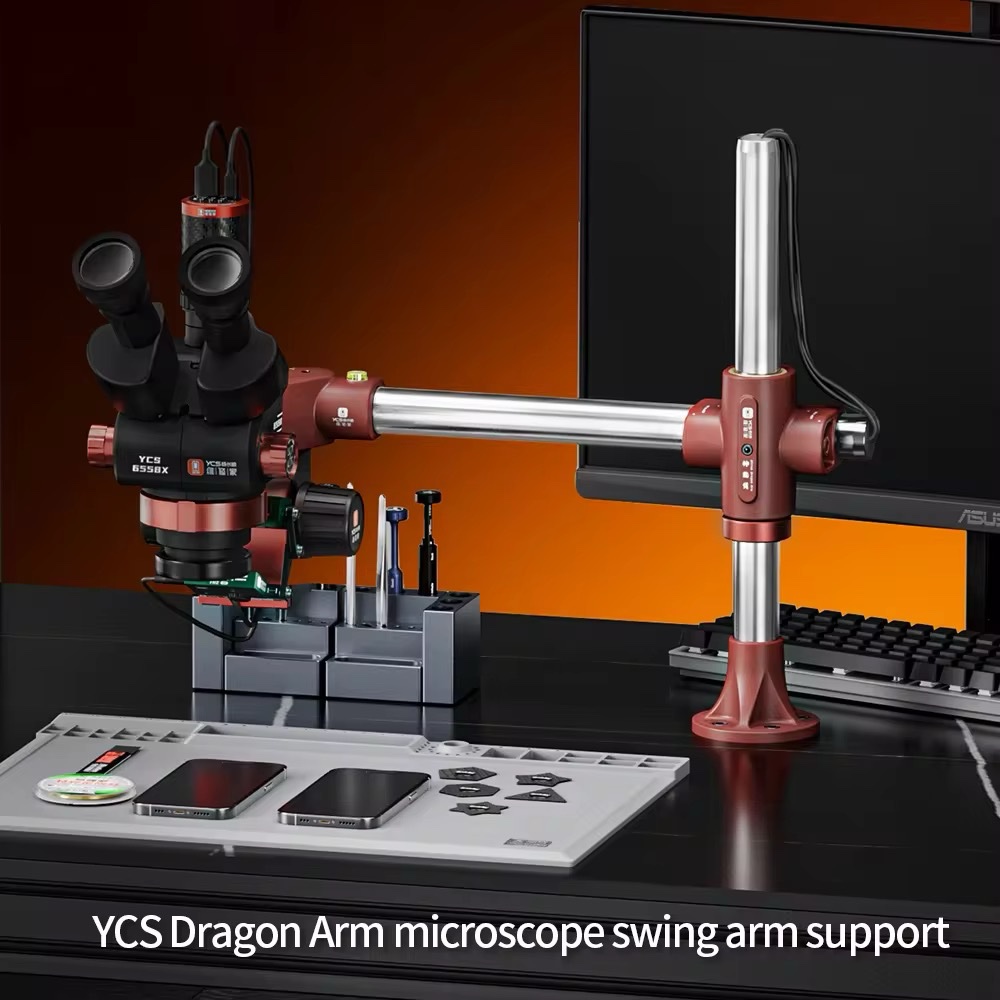

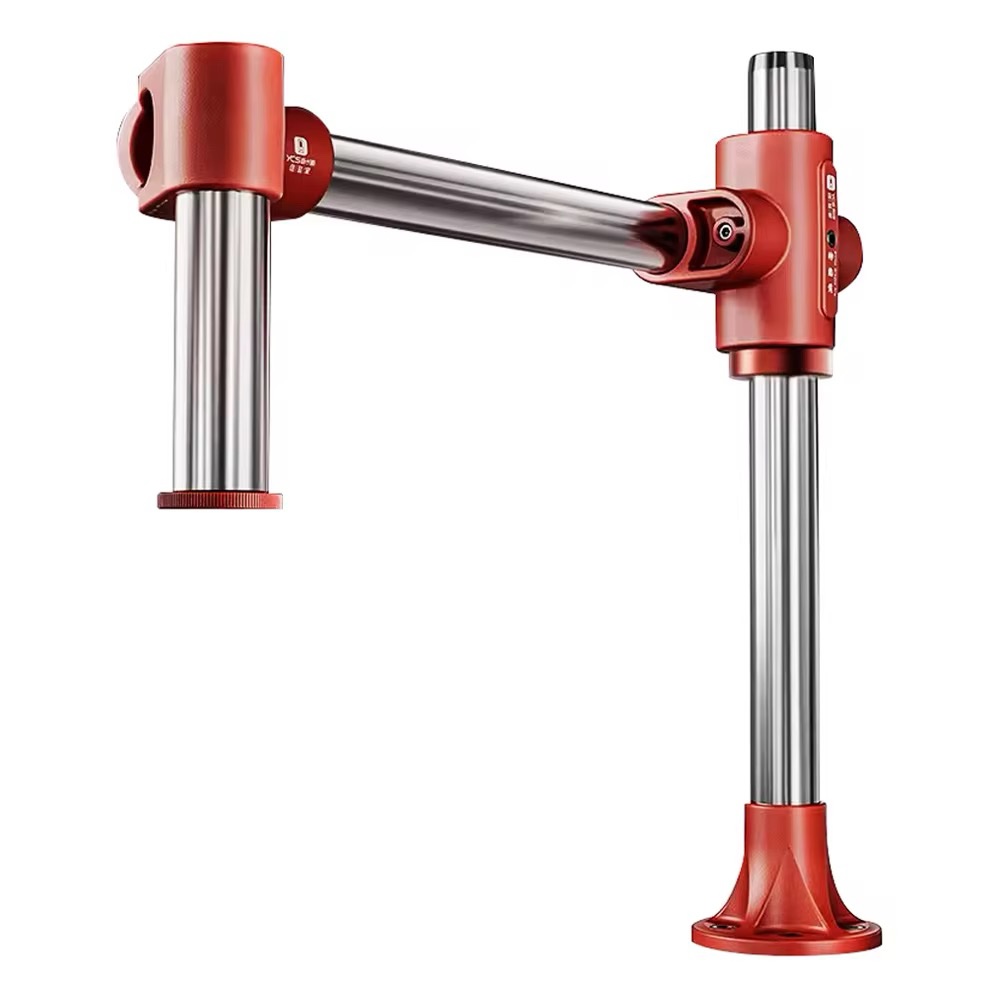

The YCS Microscope Divine Drogon Swing Arm Bracket is meticulously engineered to provide unparalleled flexibility and performance for professional and hobbyist applications. This advanced accessory combines robust construction with user-centered features such as free height adjustment and 360° rotation, empowering users to conduct detailed inspections or research with ease. Whether you’re a scientist, engineer, or tech enthusiast, this dynamic swing arm bracket is designed to enhance your workflow and productivity.

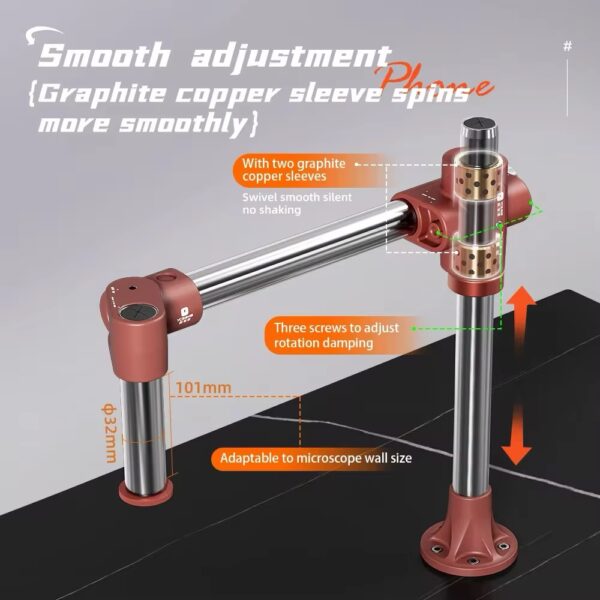

One of the standout features of the YCS Microscope Divine Drogon Swing Arm Bracket is its free height adjustment capability. This enables users to customize the positioning of their microscope with precision, making it easier to achieve optimal focus during intricate work. The intuitive adjustment system ensures smooth operation while allowing for greater control to meet specific project or experiment needs.
The addition of 360° rotation provides wide-ranging motion that accommodates various angles and perspectives. This feature allows users to seamlessly maneuver their equipment for a comprehensive view, making it suitable for tasks that demand versatility, such as inspecting microelectronics or biological specimens. Whether you’re conducting inspections or experiments, the rotation capability ensures adaptability and convenience.

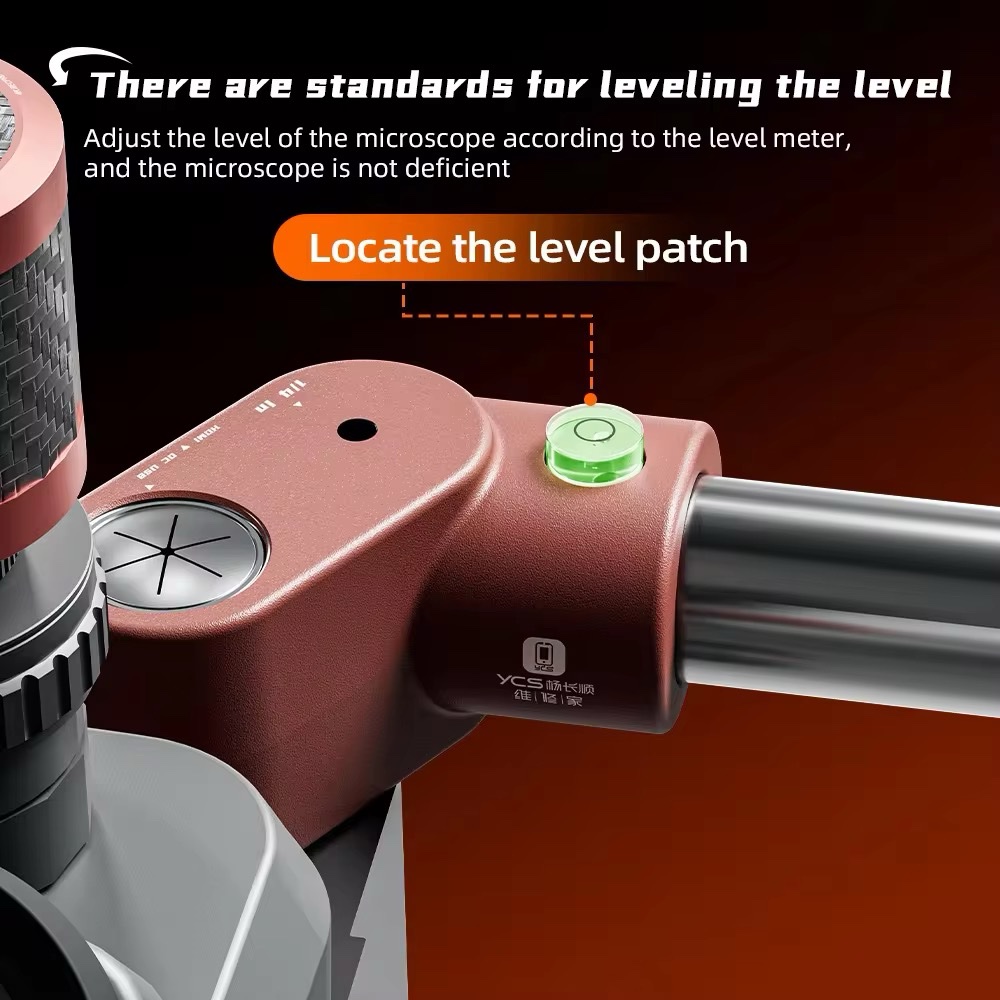

To complement its adjustable features, the YCS Microscope Divine Drogon Swing Arm Bracket is equipped with a levelling device for superior stability. This ensures that your microscope remains steady during use, improving the overall accuracy of your observations. The levelling mechanism is easy to operate and provides a reliable foundation for consistent performance, eliminating workspace disruptions caused by unstable equipment.
With its combination of free height adjustment, 360° rotation, and integrated levelling device, the YCS Microscope Divine Drogon Swing Arm Bracket sets a new standard in ergonomic and practical design. Its cutting-edge functionality blends seamlessly into research labs, industrial settings, or even personal workshops, making it a must-have for anyone seeking precision and efficiency in their optical tools
