Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

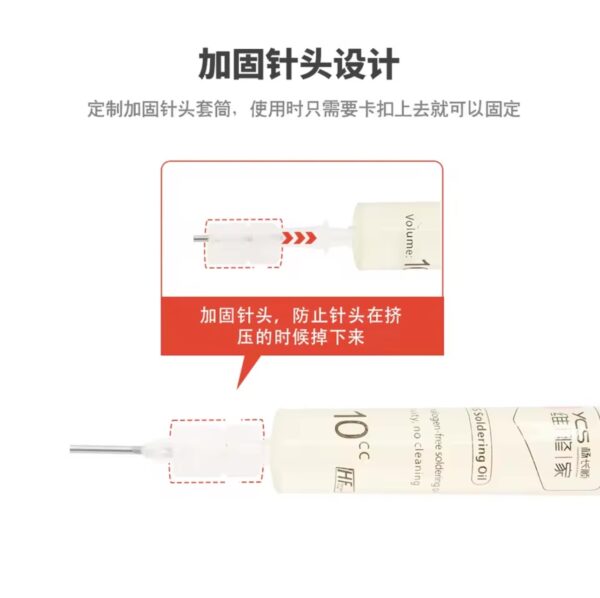

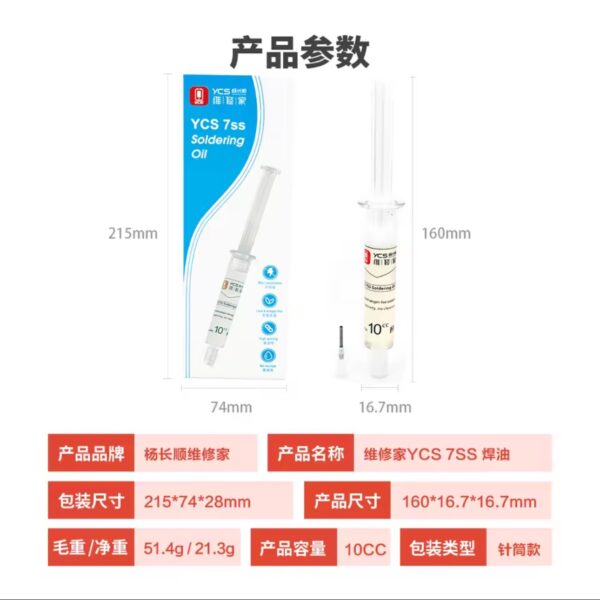

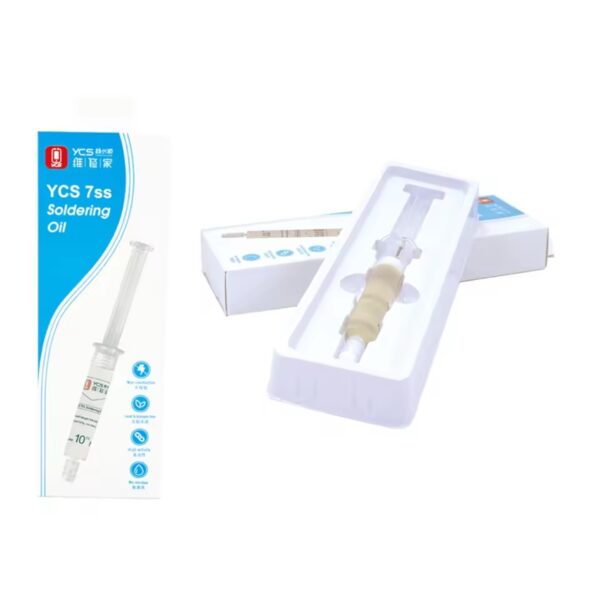

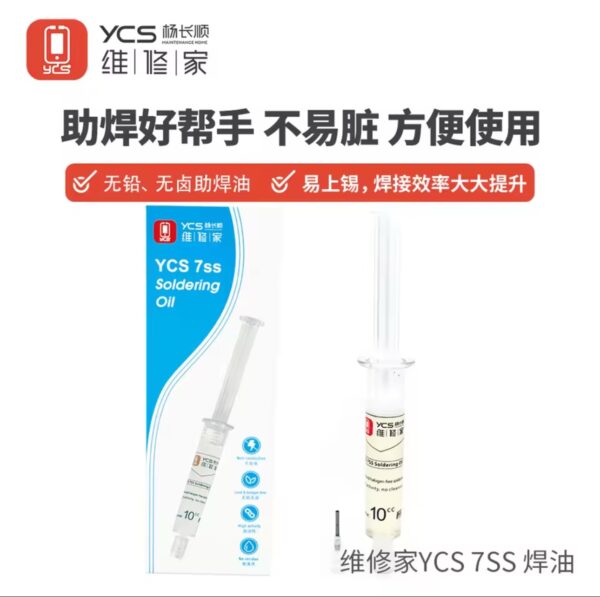

YCS-7SS zero-conductive flux oil is an advanced soldering solution specifically formulated to enhance the performance and reliability of BGA (Ball Grid Array) chip assembly in various electronic devices. This innovative flux type is characterized by its non-conductive properties, which means it does not conduct electricity before the soldering process is completed. Such a feature substantially minimizes the risk of short circuits, particularly important when dealing with densely packed electronic components. YCS-7SS zero-conductive flux oil
One of the most significant aspects of YCS-7SS is its composition. It is entirely non-halogenated and lead-free, aligning with global environmental standards and legislative compliance. These characteristics not only make YCS-7SS a safe choice for manufacturers aiming to reduce environmental impact, but they also assure end-users of the sustainability associated with sourcing and using these materials. Moreover, this flux is specially designed to reduce harmful emissions during the soldering process, ensuring a safer working environment. YCS-7SS zero-conductive flux oil

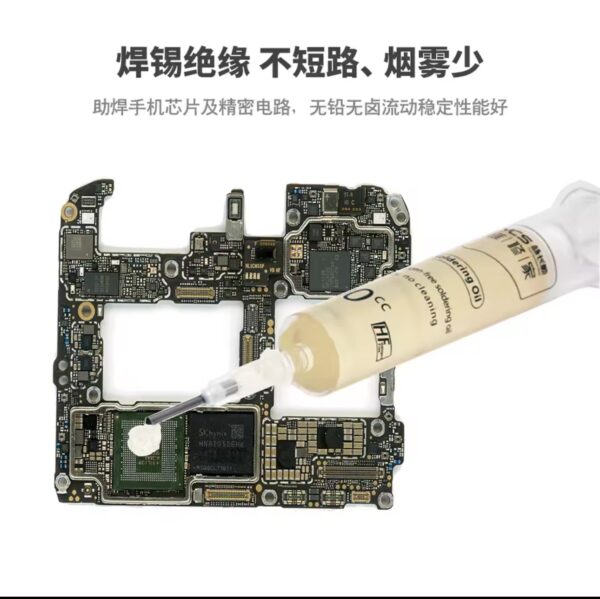

In practical applications, YCS-7SS Zero-Conductive Flux is widely used in the soldering of mobile phone and computer BGAs. Its unique formulation provides excellent wetting properties, which are crucial for achieving reliable solder joints in these compact configurations. Compared to traditional fluxes, YCS-7SS proves to be superior in performance, offering better thermal stability and less residue post-soldering, which can lead to improved overall device reliability. YCS-7SS zero-conductive flux oil
The advantages of YCS-7SS become evident when comparing it to conventional fluxes. Traditional fluxes often contain harmful substances that can jeopardize both environmental safety and user health. YCS-7SS not only meets safety standards but also enhances the manufacturing process, making it a highly recommended choice for environmentally-conscious electrical manufacturers aiming for quality and sustainability in their chip soldering practices. YCS-7SS zero-conductive flux oil
In the realm of electronic manufacturing, zero-conductive fluxes, particularly YCS-7SS, have emerged as a cornerstone in the assembly of BGA (Ball Grid Array) chips, which are essential components in mobile phones and computers. The application of YCS-7SS during the BGA soldering process plays a critical role in enhancing the reliability and performance of electronic devices. Unlike traditional soldering fluxes, YCS-7SS minimizes electrical conductivity, making it especially beneficial in preventing short circuits that can arise during production and operation.
The technical advantages of YCS-7SS are manifold. First and foremost, its unique formulation aids in achieving optimal solder joint integrity. The application of this flux facilitates better wetting and adhesion to both the BGA pads and the solder balls, which is pivotal for ensuring robust mechanical connections. This is particularly important in high-density circuit boards, where space constraints and thermal fluctuations can compromise the integrity of solder joints. Enhanced thermal stability afforded by YCS-7SS further underscores its role, as it mitigates the risks associated with thermal stress, leading to longer-lasting electronic applications.
Furthermore, YCS-7SS complies with industry standards, making it a reliable choice for manufacturers aiming to uphold quality assurance in their production processes. Application techniques for YCS-7SS have also evolved, with methods such as stencil printing and dispensing being widely adopted. These techniques allow for precise flux application, which is crucial in meeting the specific requirements of BGA soldering. Real-world usage of YCS-7SS in various case studies illuminates its successful implementation, demonstrating its capacity to meet the rigorous demands of modern electronics production, while ensuring that manufacturers can achieve high standards of performance and reliability in their products.
