Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

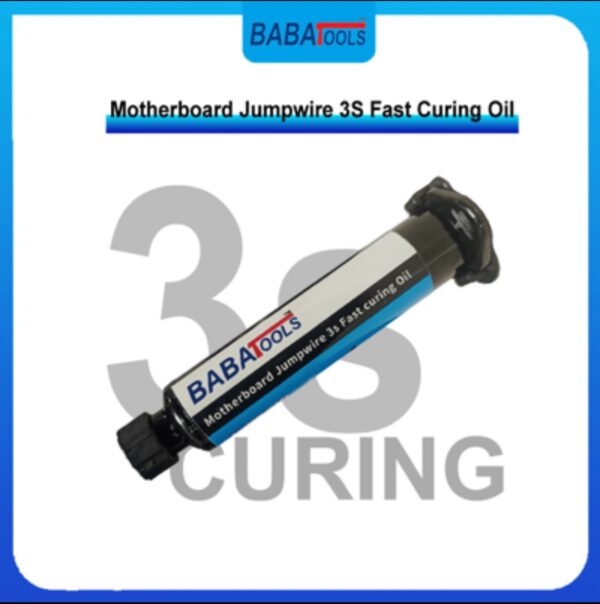

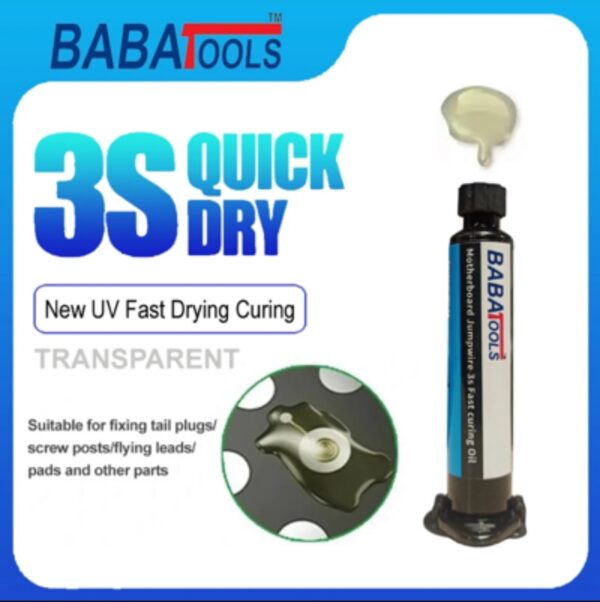

The BABA Motherboard JumpWire 3s Fast UV Curing Oil is an essential solution for electronics repair professionals seeking precise and durable PCB repairs. Designed for quick curing, this transparent UV oil solidifies in just 3 seconds under UV light, ensuring fast, reliable results in high-precision motherboard and circuit board work. Packaged in a 10cc syringe, this specialized compound is perfect for securing jump wires, protecting solder joints, and insulating delicate circuits.
The standout feature of the BABA Motherboard JumpWire 3s is its 3-second curing time under a UV light source. This rapid solidification significantly speeds up the repair process, reducing downtime and ensuring efficient workflow in electronics repair environments.
The clear, transparent formulation ensures minimal visual impact on PCB repairs. Unlike traditional adhesives that may discolor over time, this UV oil maintains its clarity, ensuring a professional and clean finish.
Once cured, the BABA UV oil forms a durable protective layer with excellent adhesion to copper traces, solder joints, and motherboard surfaces. This strong bond prevents wire movement, ensuring long-lasting stability.
The BABA Motherboard JumpWire 3s is specially formulated for delicate PCB work. It effectively secures jump wires, providing insulation and mechanical support to prevent disconnection or short circuits.
The product is packaged in a 10cc syringe for precise and controlled application. The fine nozzle allows technicians to apply the oil accurately, even in densely populated PCB areas.
This UV curing oil offers excellent resistance to heat, moisture, and chemicals, ensuring long-term protection in demanding environments.
The cured layer is electrically insulating, making it ideal for protecting exposed copper traces, damaged solder pads, or reinforcing repaired connections.
The BABA Motherboard JumpWire 3s Fast UV Curing Oil is a versatile solution for various electronics repair tasks, including:
✅ Jump Wire Fixes: Perfect for securing delicate wire bridges on PCBs, preventing movement or disconnection. ✅ Solder Joint Protection: Forms a protective layer over repaired solder joints to enhance durability. ✅ Trace Repair and Insulation: Effectively insulates exposed copper traces to prevent short circuits. ✅ Component Encapsulation: Seals and protects small components or connections from environmental damage. ✅ IC and BGA Work: Provides an added layer of stability in intricate chip-level repairs.
The BABA Motherboard JumpWire 3s Fast UV Curing Oil is designed to meet the needs of professional electronics technicians working in fast-paced environments. Its fast-curing formula minimizes downtime while ensuring robust protection for delicate PCB repairs.
✅ Fast and Efficient Repairs: Achieve strong bonding in just 3 seconds, improving productivity. ✅ Clean and Professional Finish: The transparent formula keeps the repaired area neat and visually unobtrusive. ✅ Durable Protection: Provides lasting stability against vibrations, temperature changes, and mechanical stress. ✅ User-Friendly Application: The 10cc syringe design ensures precise control during repairs.
Whether you’re performing micro-soldering, motherboard repairs, or circuit protection, this UV curing oil offers unmatched speed and reliability.
To maximize the performance of the BABA Motherboard JumpWire 3s Fast UV Curing Oil, consider pairing it with:
🔹 UV LED Lamp (365-405nm) – Ensures fast and effective curing. 🔹 Precision Tweezers and Soldering Tools – For accurate positioning of jump wires and micro-components. 🔹 PCB Cleaning Solution – Helps prepare the surface for optimal adhesion.
The BABA Motherboard JumpWire 3s Fast UV Curing Oil is an indispensable tool for professional electronics repair technicians. Its rapid 3-second curing time, transparent finish, and strong adhesion ensure fast, effective, and durable PCB repairs. Whether you’re reinforcing jump wires, protecting solder joints, or insulating delicate traces, this UV curing oil delivers outstanding performance and reliability.
Upgrade your repair toolkit with the BABA Motherboard JumpWire UV Curing Oil and experience faster, cleaner, and more precise electronics repairs.
